QPB

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Suitable for indoor wall wash or semi-outdoor
  • Unique optical performance with high evenness of light spread of various beam angle. Unique swiveling brackets
  • Dust and water protection with UV stabilized clear cover
  • IP Rate IP40, IP65
  • Maximized evenness of CCT and brightness by professional bin management.

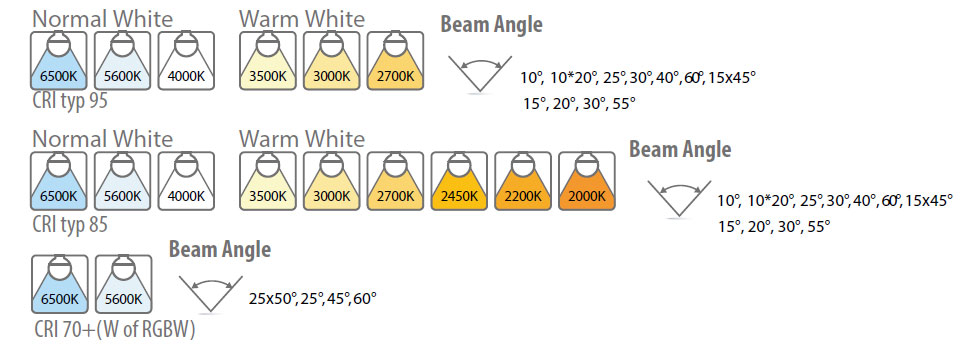

  • Wide range of CCT options(2000K ~ 7000K), Color(RGB, RGBW)
  • A short increment for precise fitting
  • Shade wing and louver option for glare cut
  • Bespoke option for CCT, CRI, Watt, Wiring and more

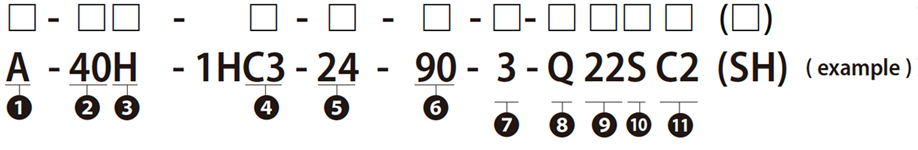

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… QPB

  • 9) Beam Angle ………………………………… Refer to the table

  • 10) Feed receptacle ………….. S : Single end LW, B : Both ends LW, QM, QF, QM4, QF4, QMF4, OM, OF, OMF, OM4, OF4, OMF4, OM6, OF6, OMF6

  • 11) IP Rate ………………………………………………. C2 : IP40, C4 : IP65

  • 12)

    Glare shade………………………………………. SH : Shade wing option
    Dimming
    ………………………………………….. PWM, DALI, 0-10, DMX
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. QJ

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

* Data is subject to change without notice for improvement

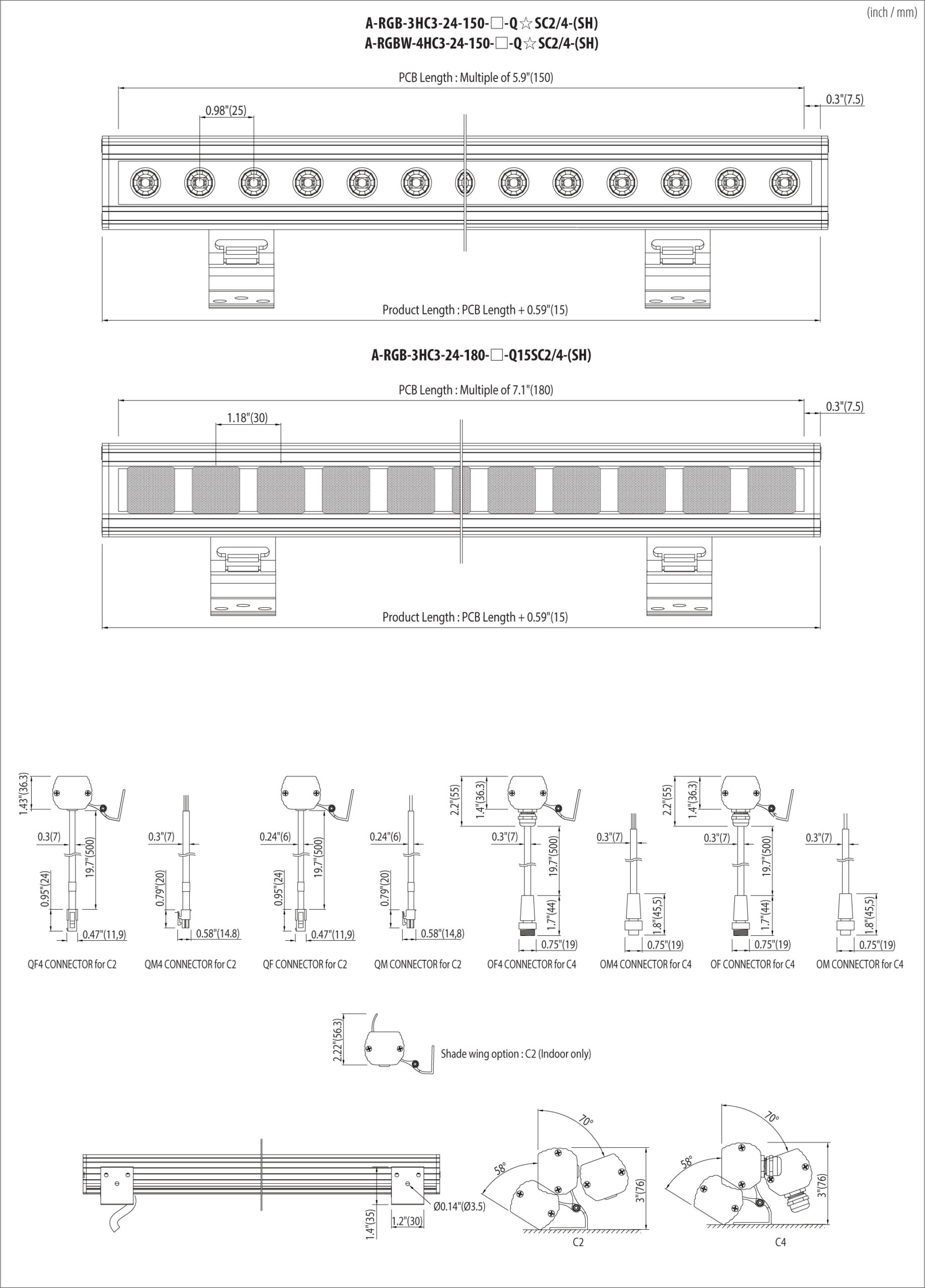

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
