Project Description

QPB G

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Suitable for wall wash for indoor and semi outdoor
  • Unique optical performance with high evenness of light spread of 20°, 34°, 24×48° Unique swiveling bracket
  • Dust and water protection with UV stabilized clear cover
  • IP Rate IP40, IP65
  • Maximized evenness of CCT and brightness by professional bin management.

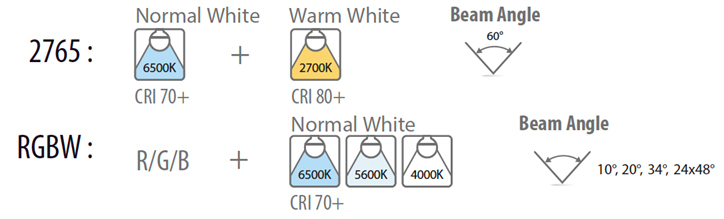

  • Wide range of CCT options(2700K ~ 7000K), Dual white, Color(RGB, RGBW)
  • A short increment for precise fitting
  • Shade wing option for glare cut
  • Bespoke option for CCT, CRI, Watt

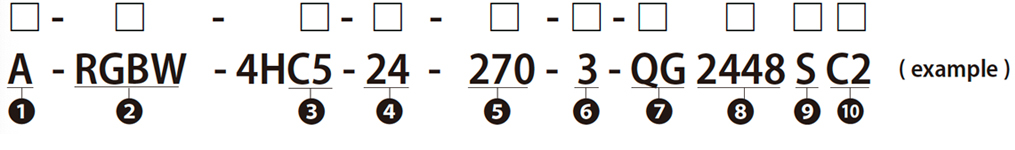

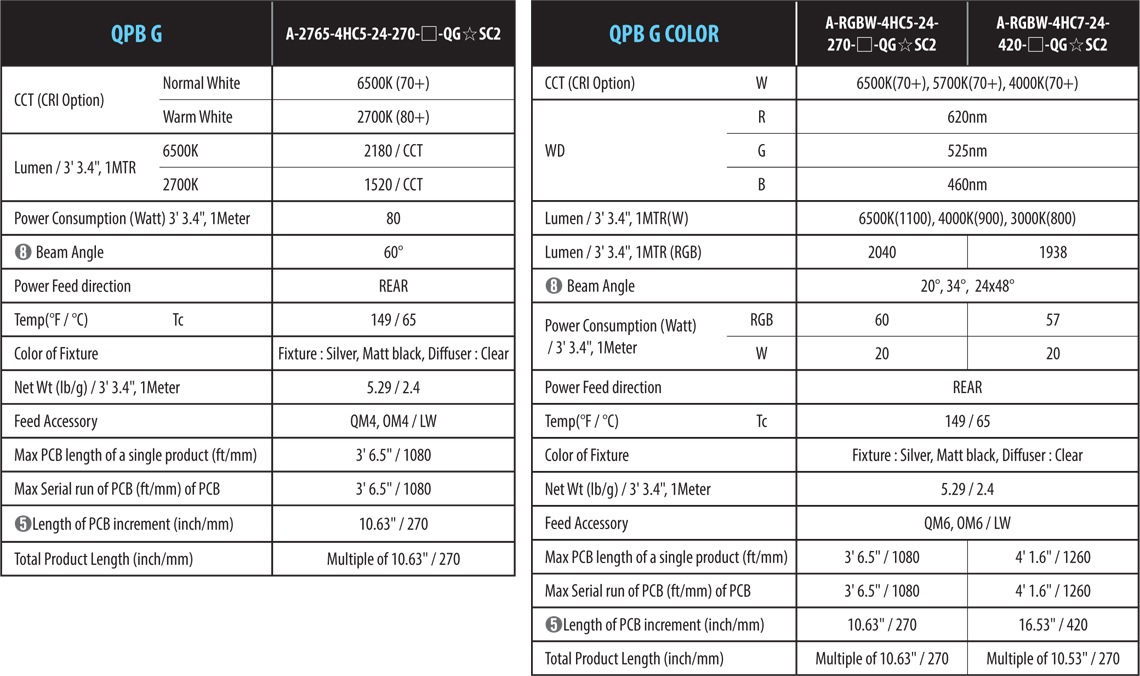

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 4) Input VOLT(DC) ……………… 24V

  • 5) Length of add-on(inch/mm) …………. Refer to the table

  • 6) Quantity of add-on …………………………. Variable

  • 7) Product model ………………………………… QPB G

  • 8) Beam Angle ………………………………… Refer to the table

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, QF4, QMF4 , OF4, OMF4, QF6, QMF6 , OF6, OMF6

  • 10) IP Rate ………………………………………………. C2 : IP40, C4 : IP65

  • Dimming ………………………………………….. PWM, DALI, 0-10, DMX
    Operation Temp(°F/°C) …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (QJ)

* Data is subject to change without notice for improvement

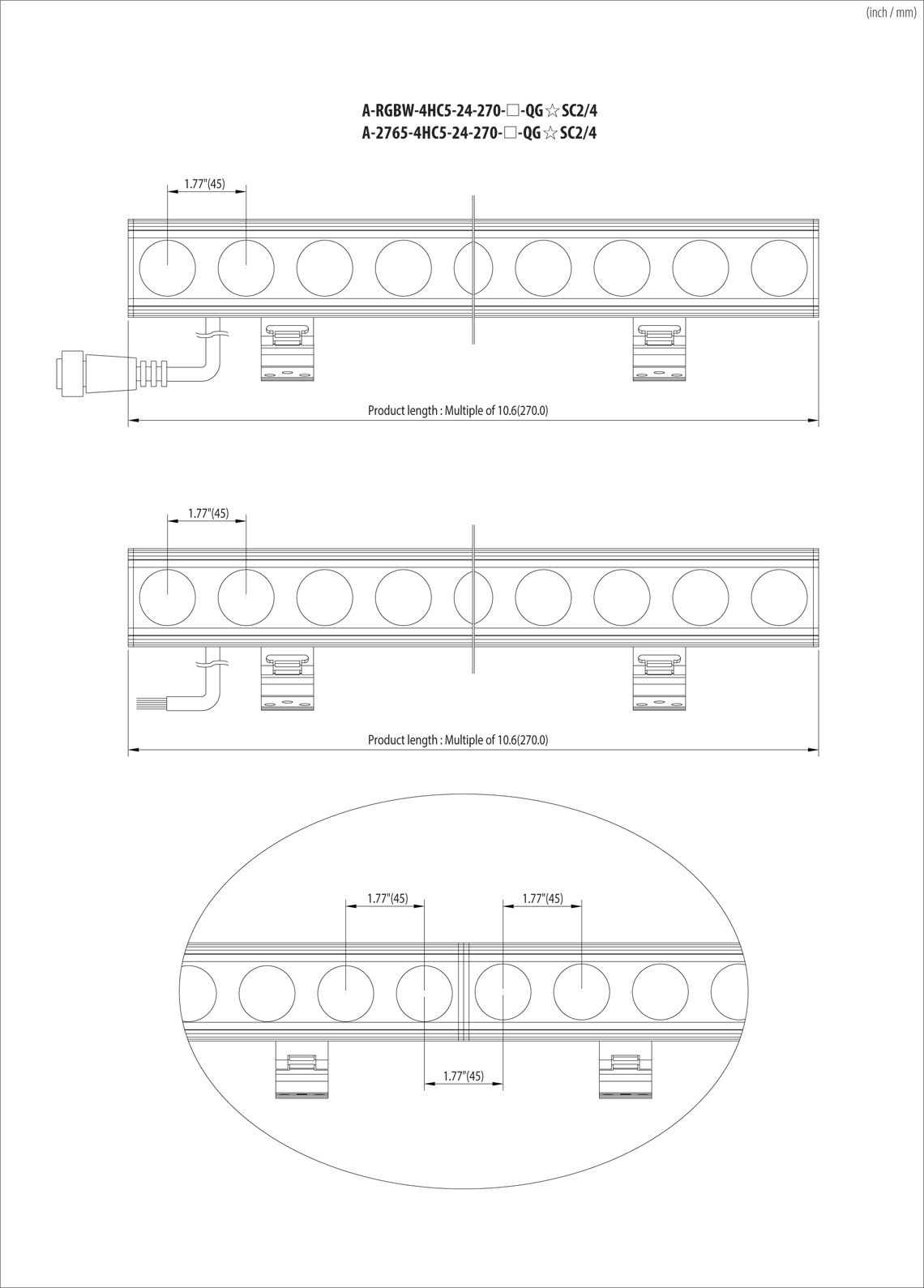

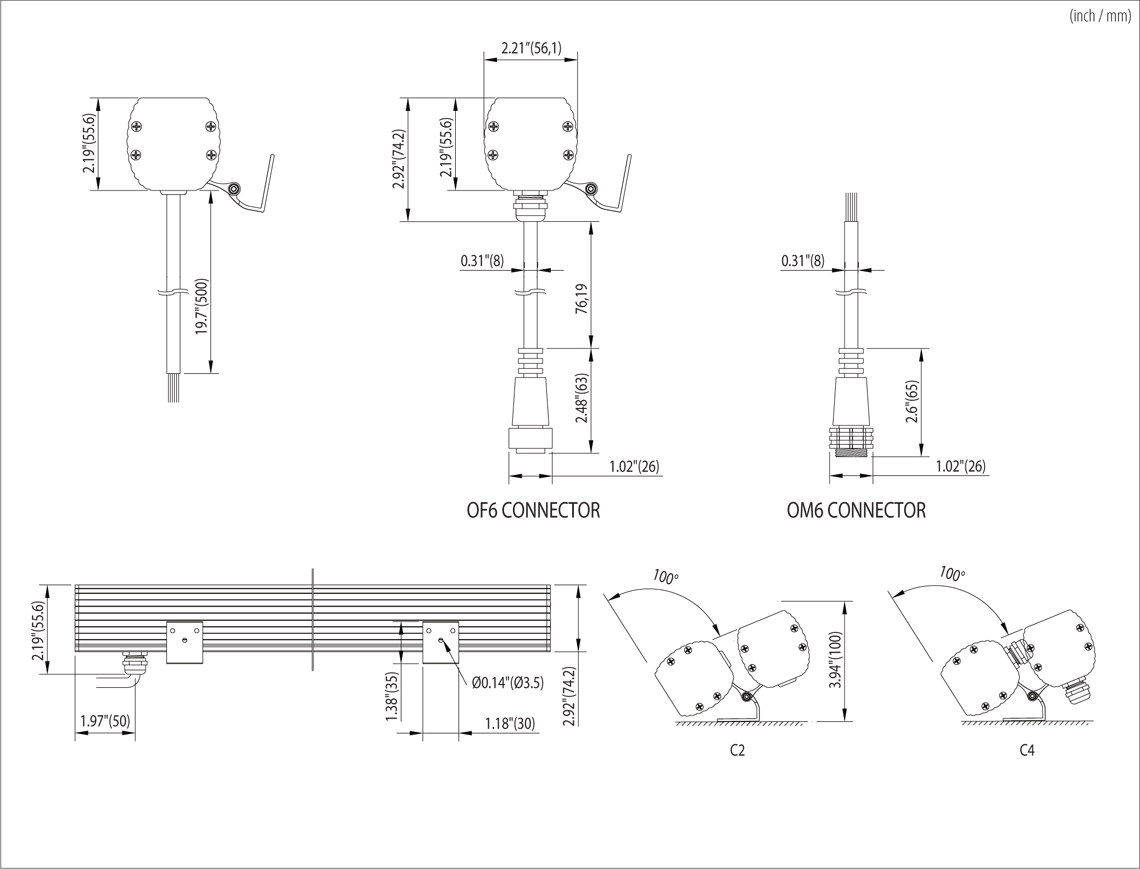

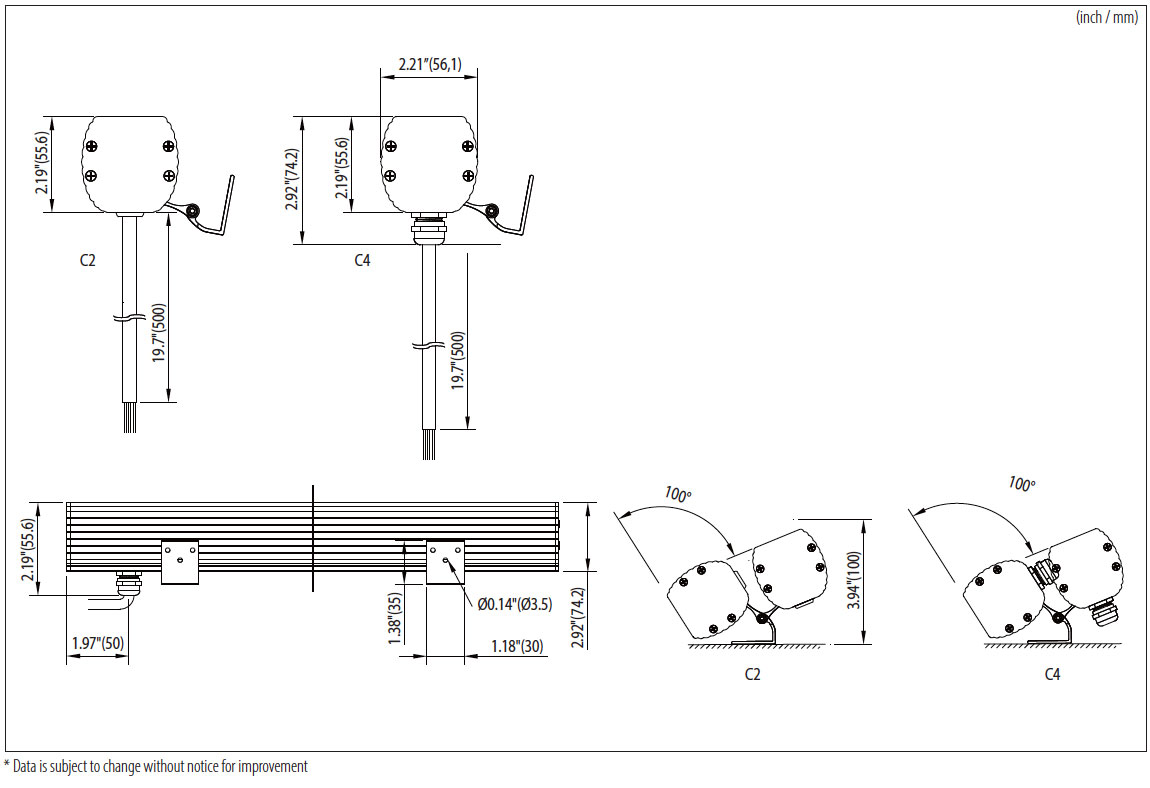

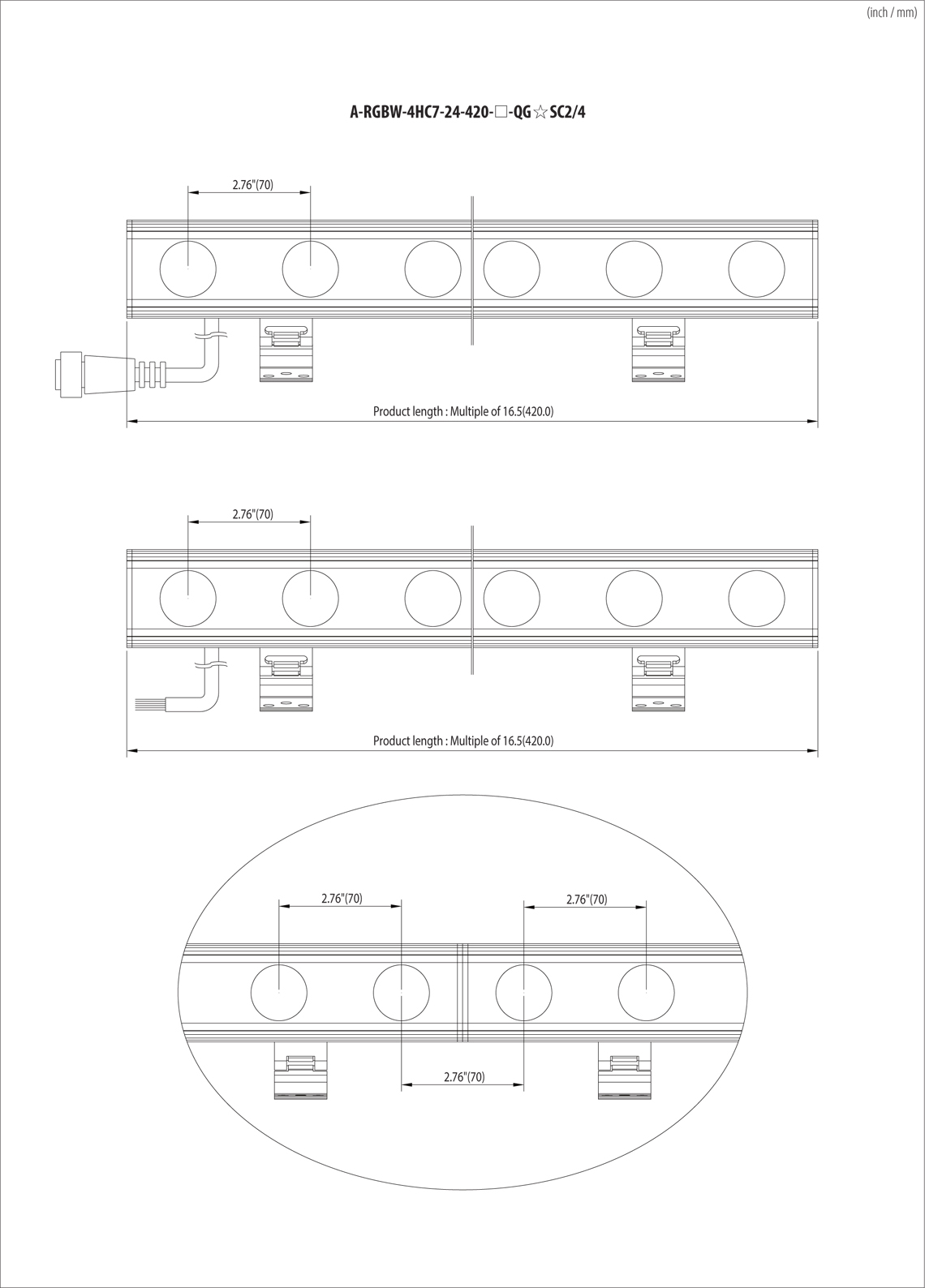

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
