Project Description

FPB

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • • Splendid consistency in beam spread and dust protection with UV stabilized enclosure
  • IP20, IP65
  • Maximized evenness of CCT and brightness by professional bin management.

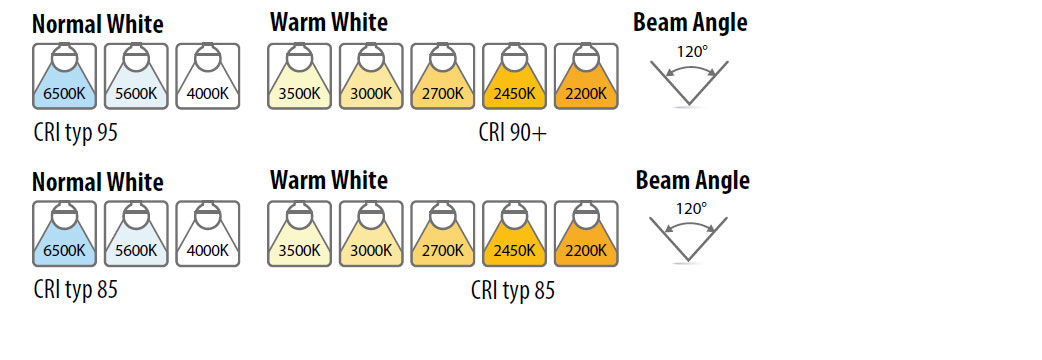

  • Wide range of CCT options(2200K ~ 7000K)
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt and more.

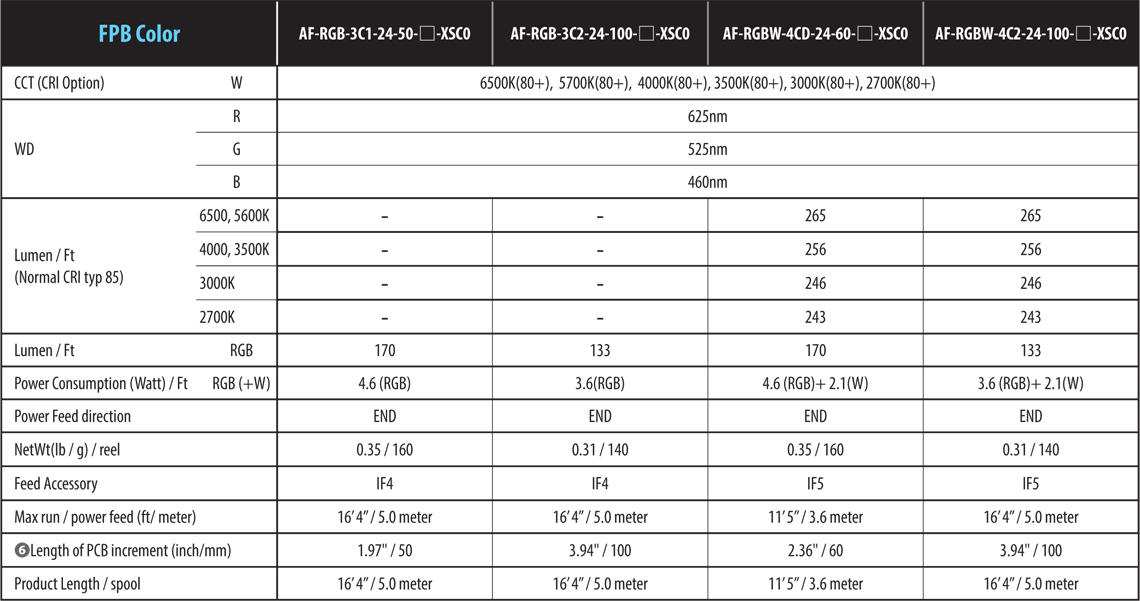

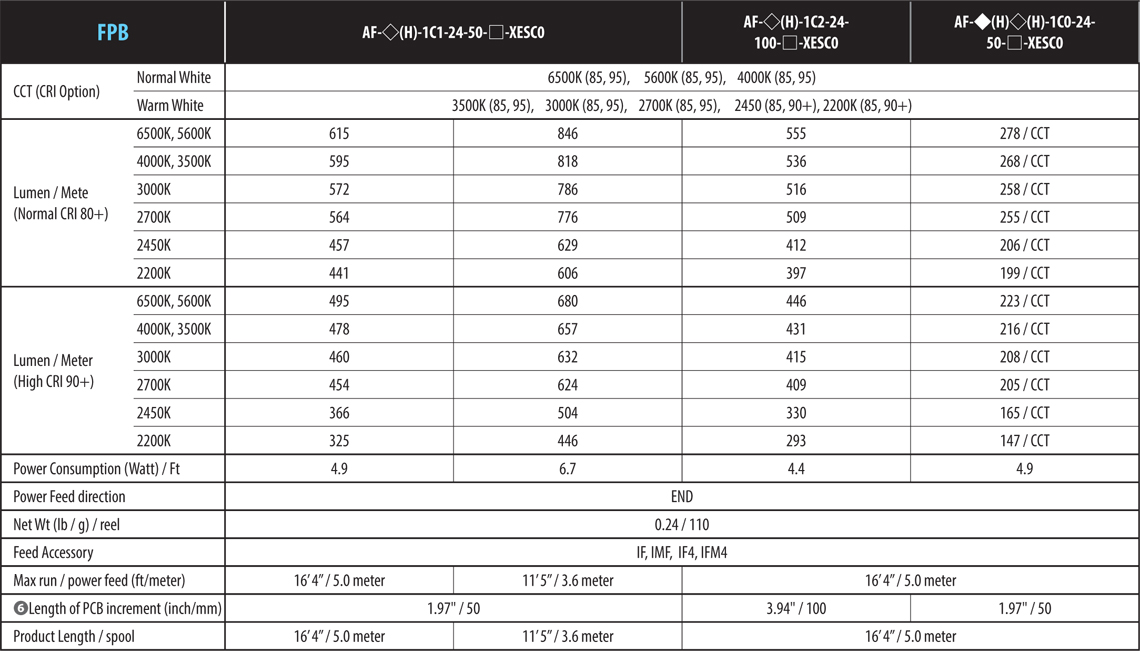

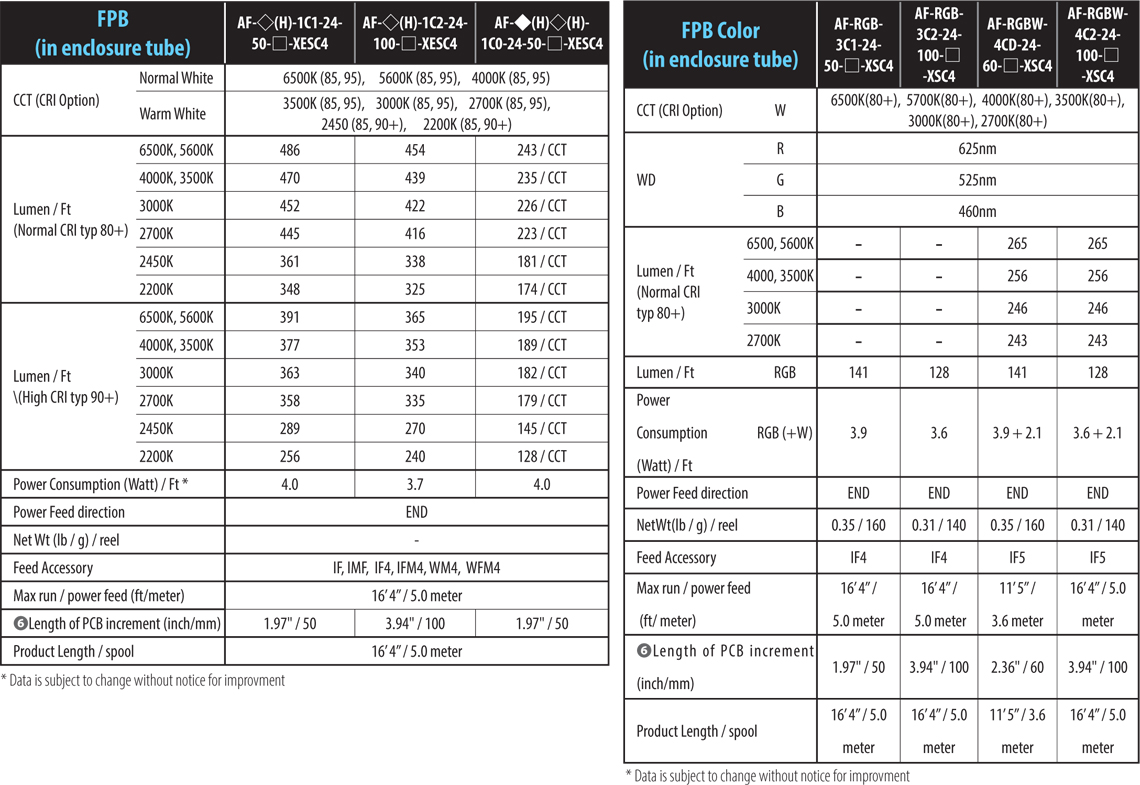

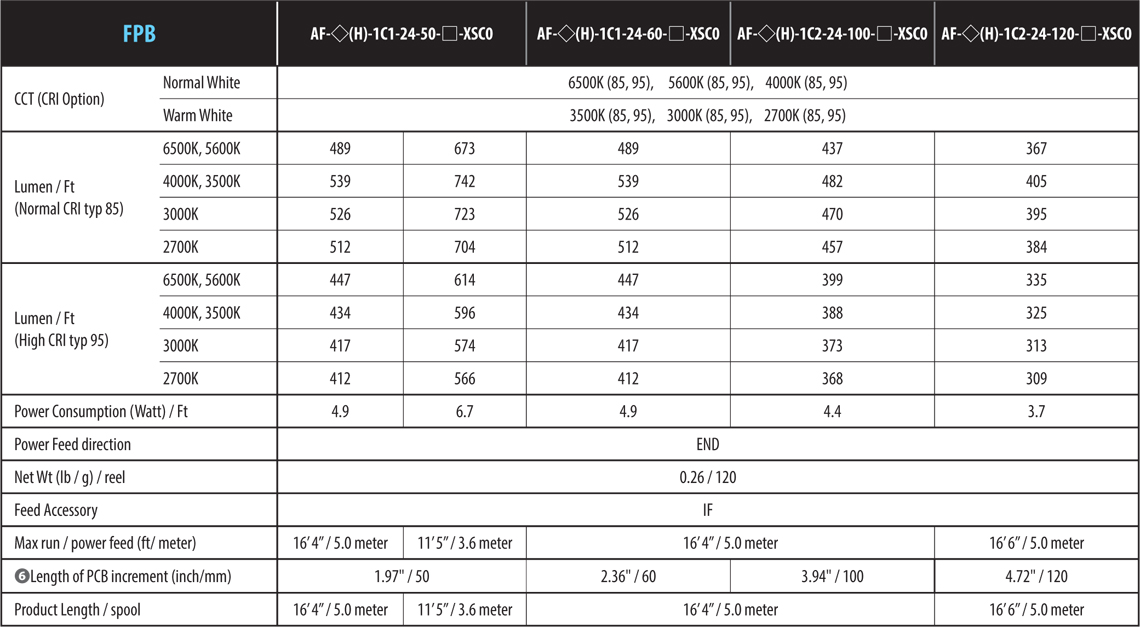

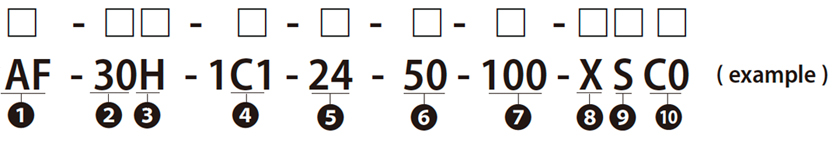

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC FPB

  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, Blank : CRI typ 85
  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… X : FPB , XE : FPB E type, XV : FPB V type

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, IM, IMF, IM4, IFM4, WF, WFM, WF4, WFM4

  • 10) IP Rate ………………………………………………. C0 : IP20, C4 : IP65(Enclosure type), C04 : IP65(with IP20 connector)

  • Dimming ………………………………………….. PWM, 0-10, DMX
    Beam Angle
    …………………………………….. 120°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (FX), Tape (DS)

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

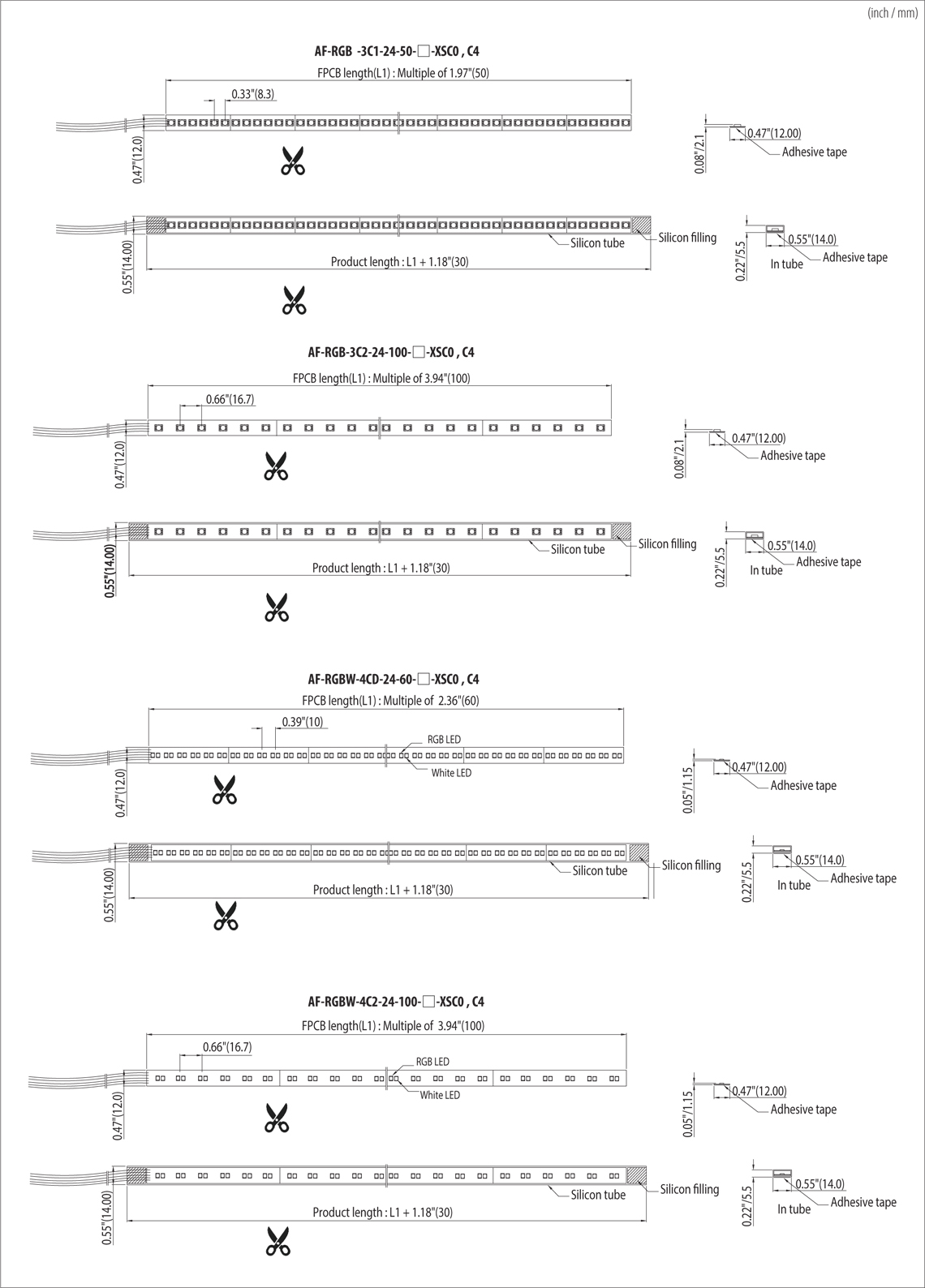

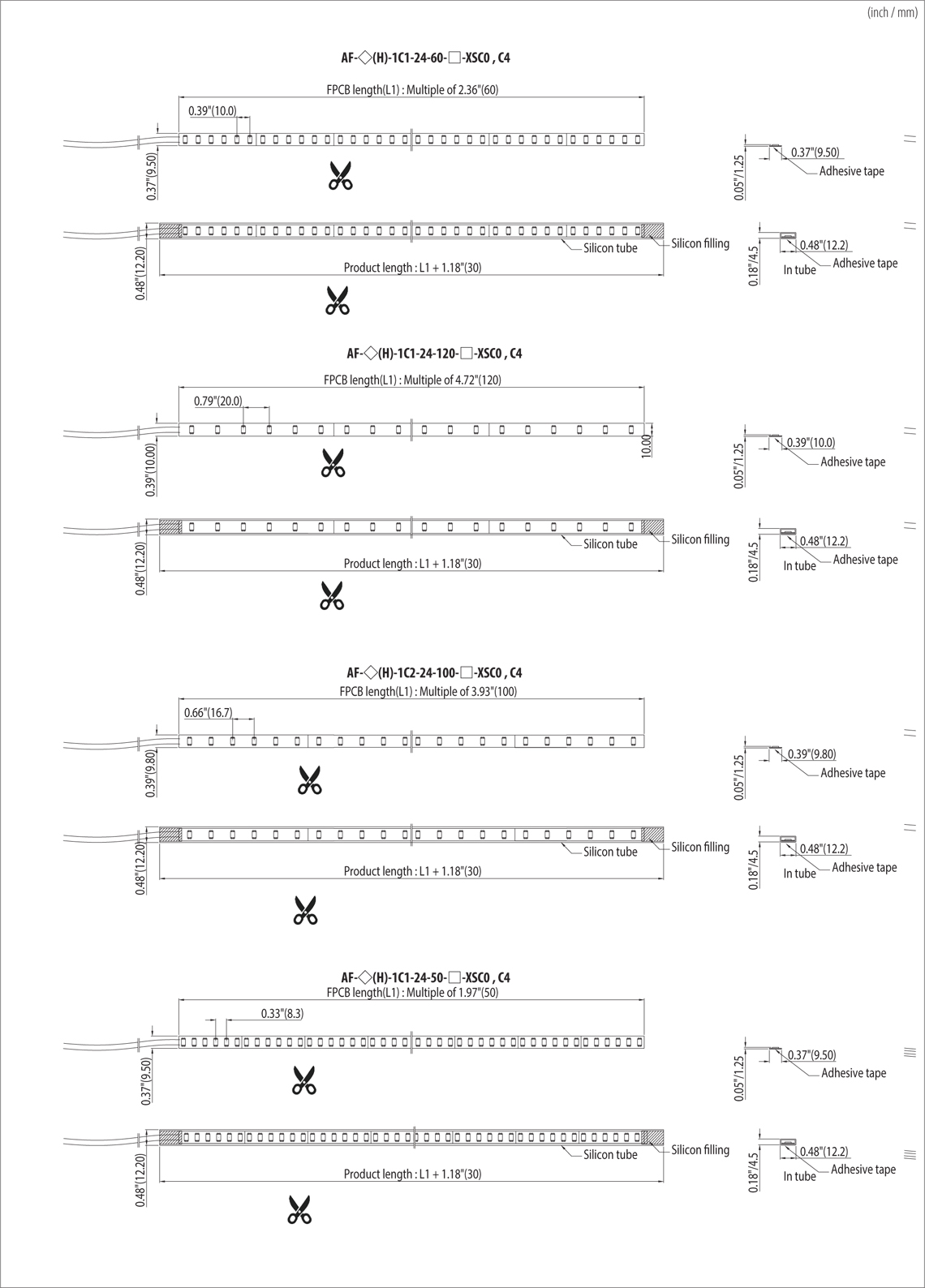

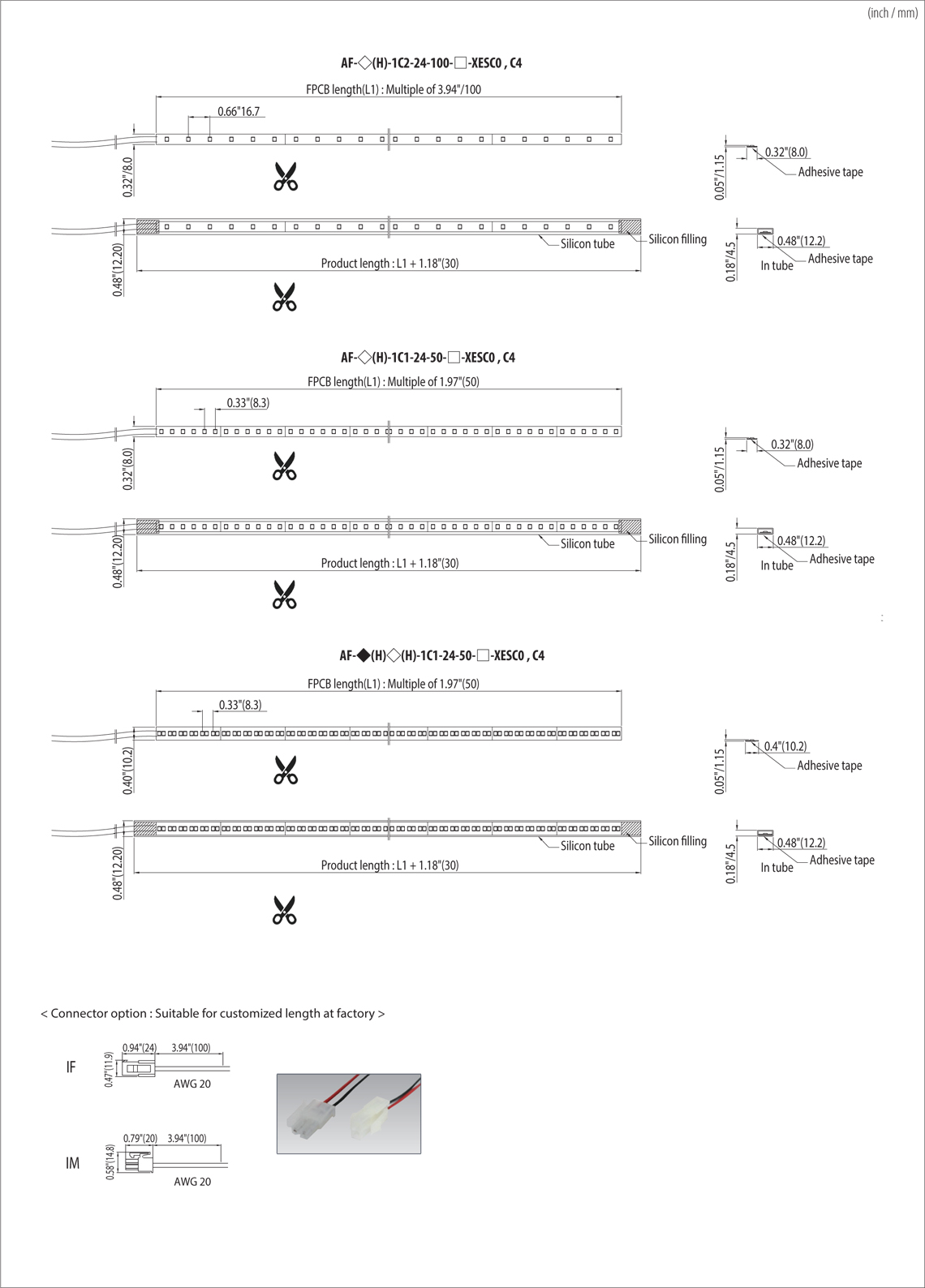

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
