Project Description

FLEXi LED

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Splendid consistency in beam spread and dust protection with UV stabilized tube
  • IP Rate IP65
  • Maximized evenness of CCT and brightness by professional bin management.
  • Wide range of CCT options(2000K ~ 7000K)
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI

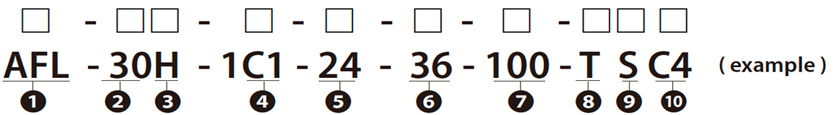

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI 90+, Blank : CRI 80+

  • 4) Input VOLT(DC) ……………… 24V

  • 5) Length of add-on(inch/mm) …………. 1.97″/ 50mm

  • 6) Quantity of add-on …………………………. Variable

  • 7) Product type ………………………………… T, H, L, R, RM

  • 8) Feed receptacle ………….. S : Single end LW, B : Both ends LW, IM, IMF, IM4, IFM4, WF, WFM, WF4, WFM4

  • 9) IP Rate ………………………………………………. C4 : IP65, C04 : IP65 (with IP20 connectors)
  • 9)
    IP Rate
    ………………………………………………. C4 : IP65, C04 : IP65 (with IP20 connectors)
    Dimming
    ………………………………………….. PWM, DALI, 0-10, DMX
    Beam Angle
    …………………………………….. 120°, 140°, 150°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (FX), Tape (DS)

* Data is subject to change without notice for improvement

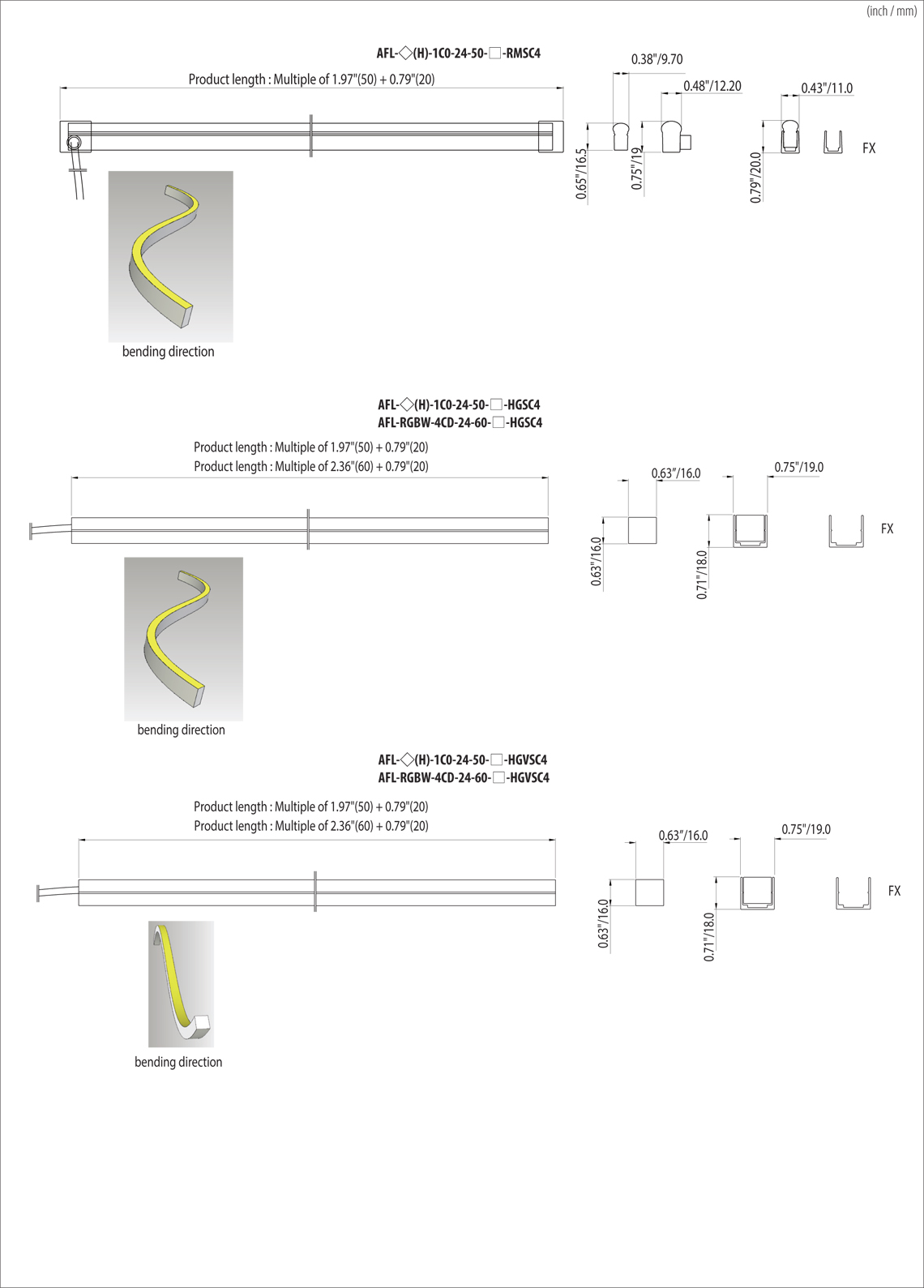

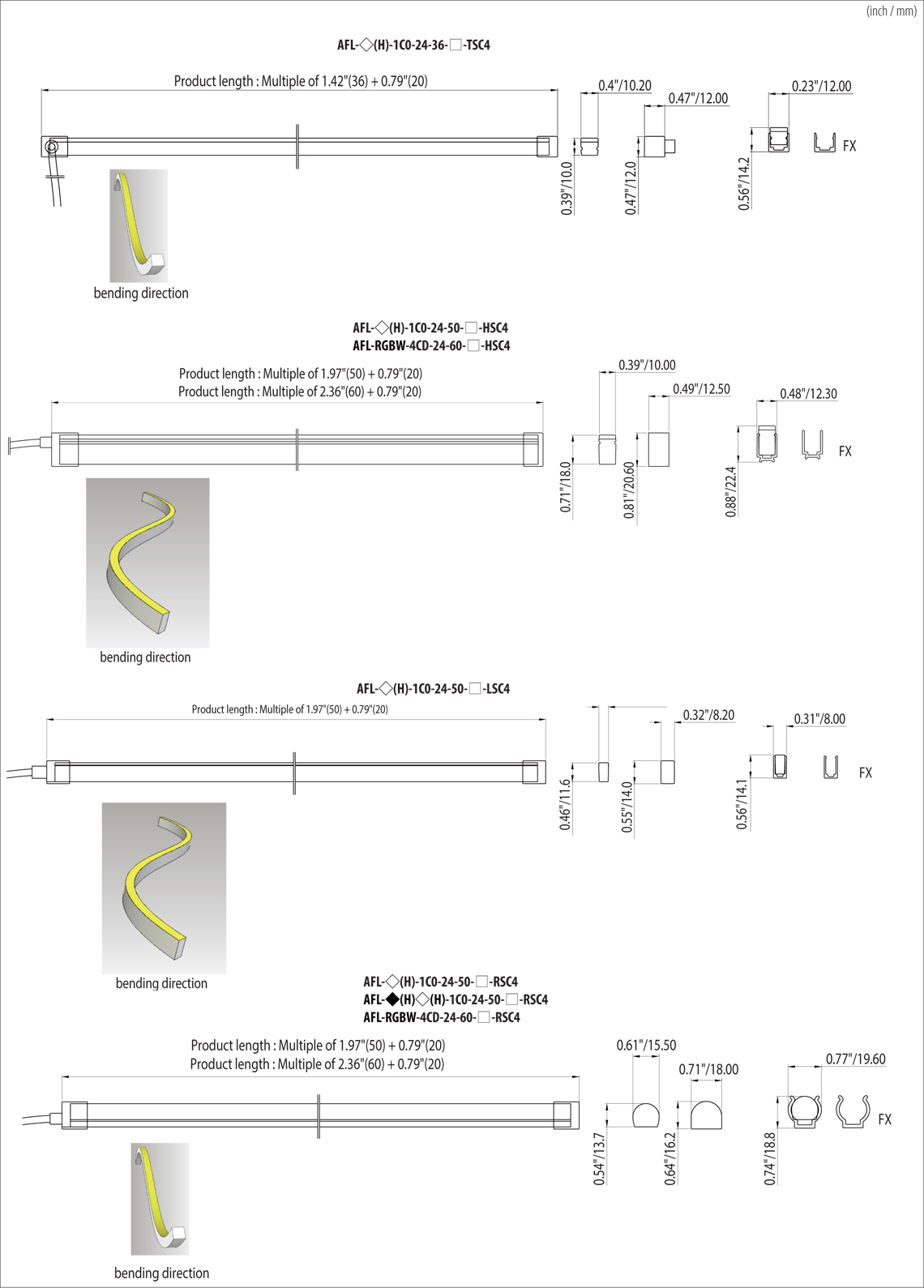

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

DOCUMENTATION
