Project Description

BLUETOOTH MESH CONTROL (Presence sensing)

OVERVIEW
FEATURES
  • Bluetooth mesh newwork
  • Touch interface (using iOS, androd device)
  • Controls WHITE, TUNABLE (2CH, 4CH)
  • Controls max 250 zones synchronously or separately
  • White tone and brightness adjustable responsive to presence status or scheduling
  • Easy control of speed, dimming or automated operation
  • Compatible with all ACROSENTEC WHITE, TUNABLE, and HUMAN CENTRIC fixtures
ELECTRICAL of BLUETOOTH Node
OPERATING ENVIRONMENT
  • IP20
  • Working temp : -13 – 113°F / -25 – 45 °C

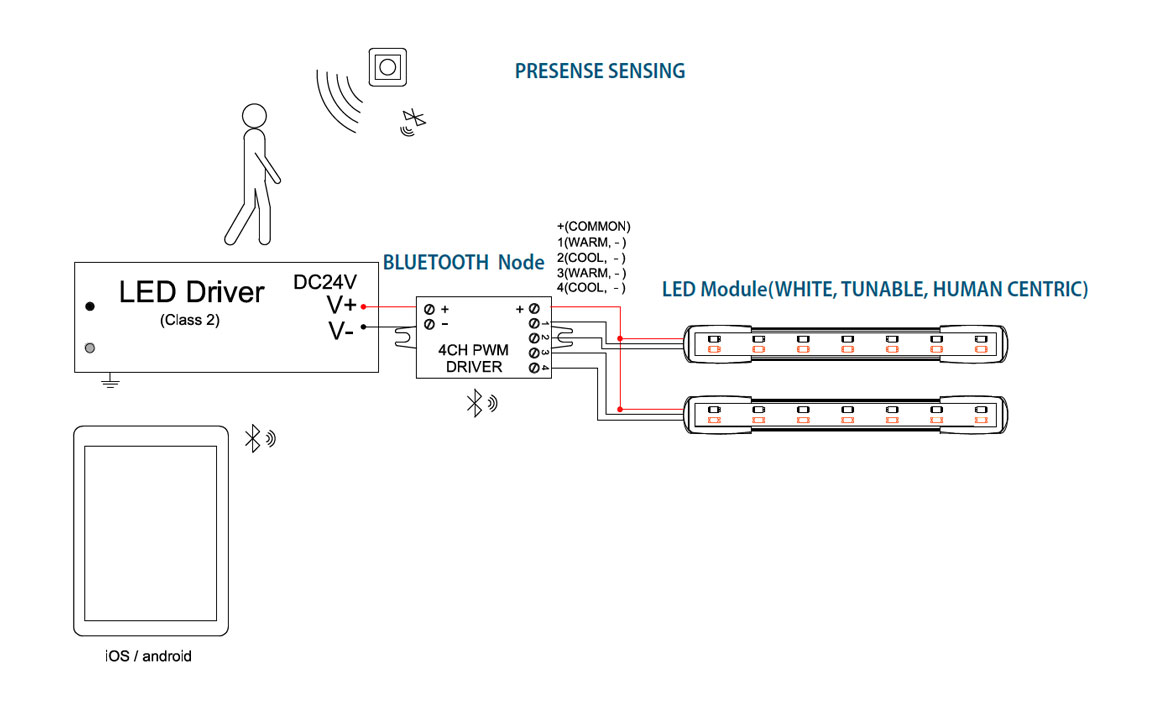

WIRING DIAGRAM

* Data is subject to change without notice for improvement
