Project Description

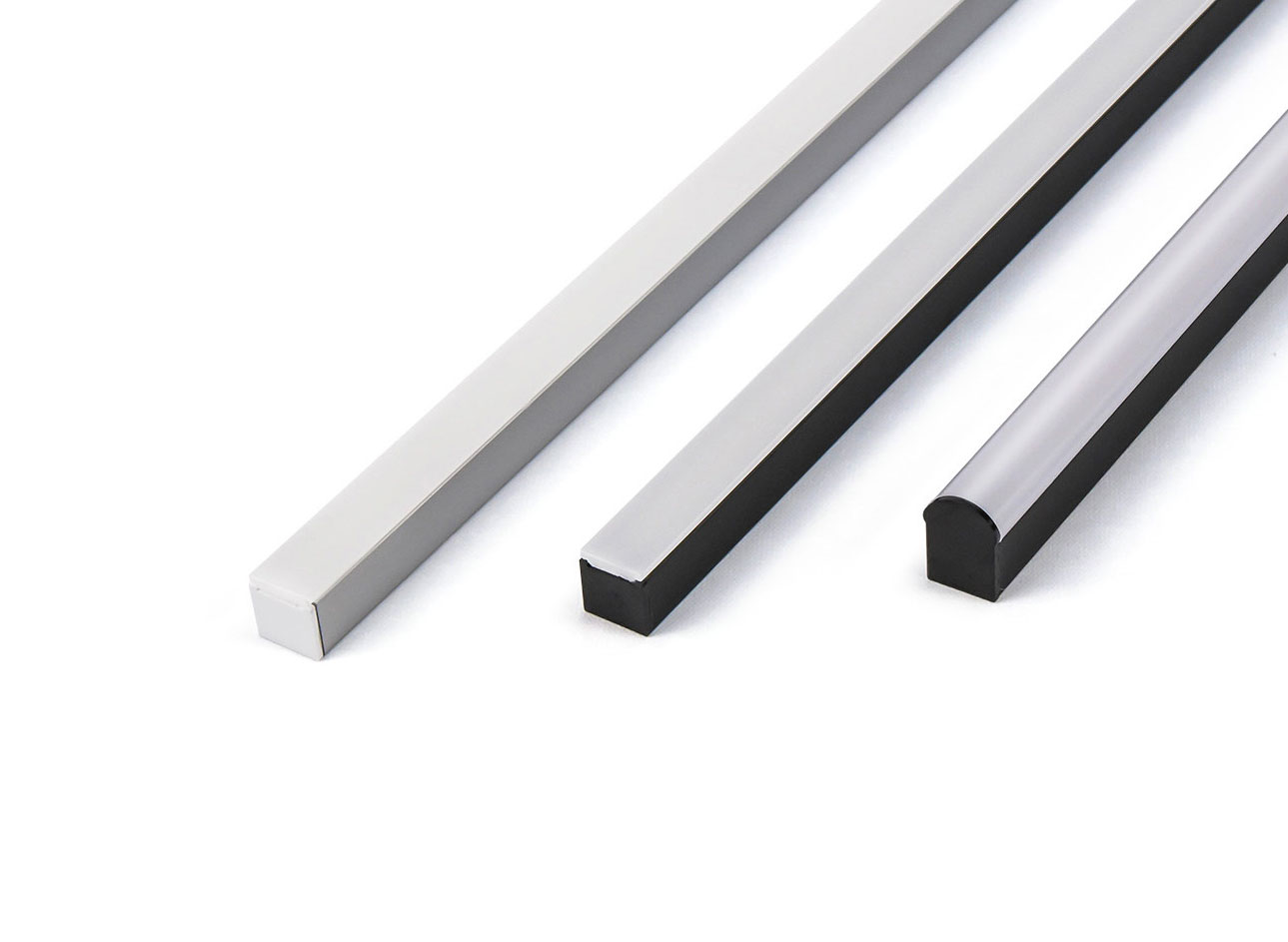

MPB TP, MPB TPR

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Very slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque cover.
  • IP Rate IP40
  • Maximized evenness of CCT and brightness by professional bin management.

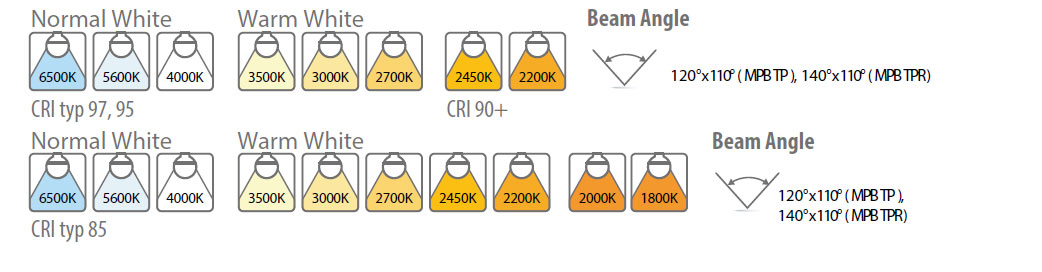

  • Wide range of CCT options (1800K ~ 7000K), Dual white
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting
  • Rimless, continuous light emission.
  • Suitable for either surface mount or recessed
  • Bespoke option for CCT, CRI, Watt

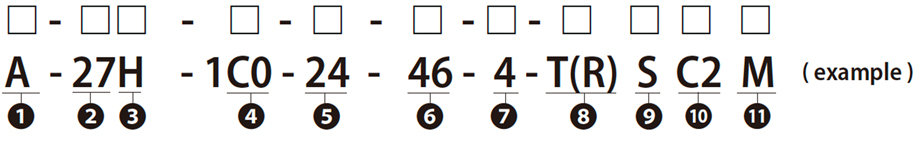

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC

  • 2) CCT

  • 3) Level of CRI ………………………………………. FH : CRI typ 97, H : CRI typ 95, 90+, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension
  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of add-on(inch/mm) …………. Refer to the table

  • 7) Quantity of add-on …………………………. Variable

  • 8) Product model ………………………………… T : MPB TP, TR : MPB TPR

  • 9) Feed receptacle ……………………………….. S : Single end LW, B : Both ends LW , RF, RFM, IM, IMF, IM4, IMF4

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque
    Dimming ………………………………………….. PWM, DALI, 0-10, DMX
    Beam Angle
    …………………………………….. 120°(TP), 140°(TPR)
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Magnet (MG), Tape (DS)

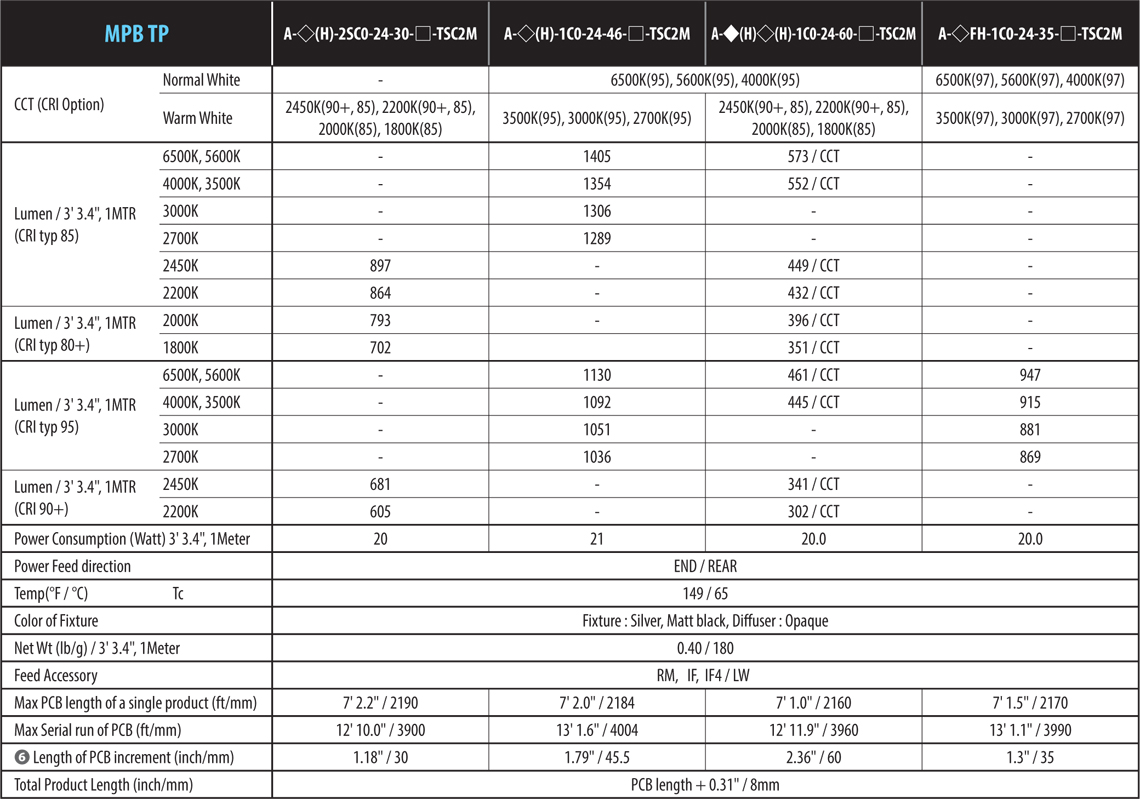

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

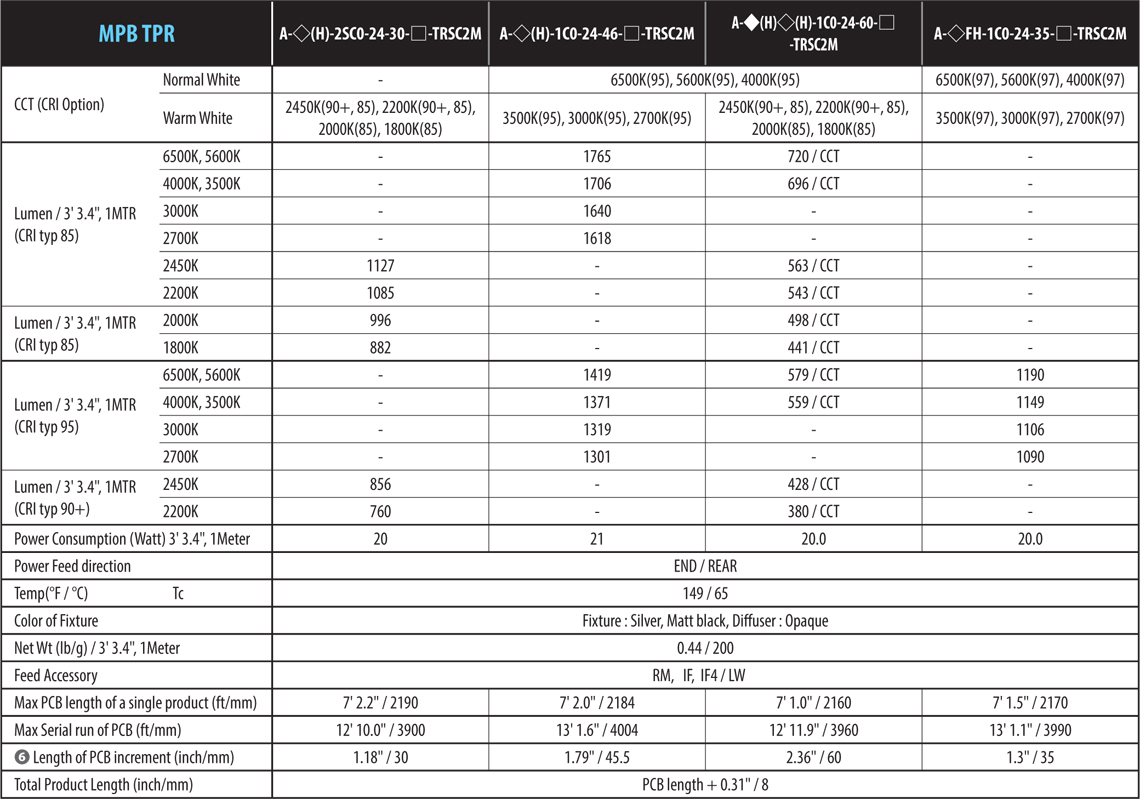

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

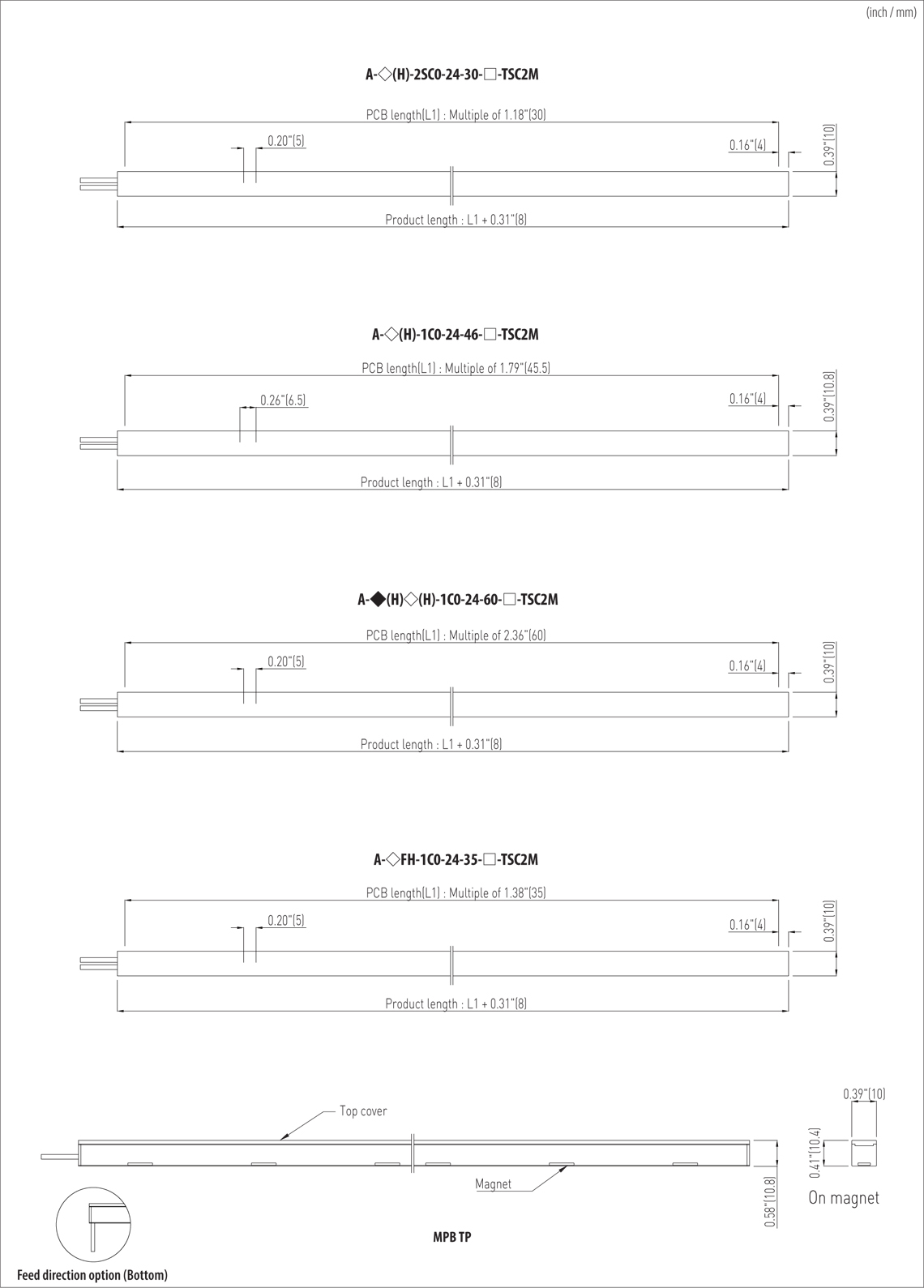

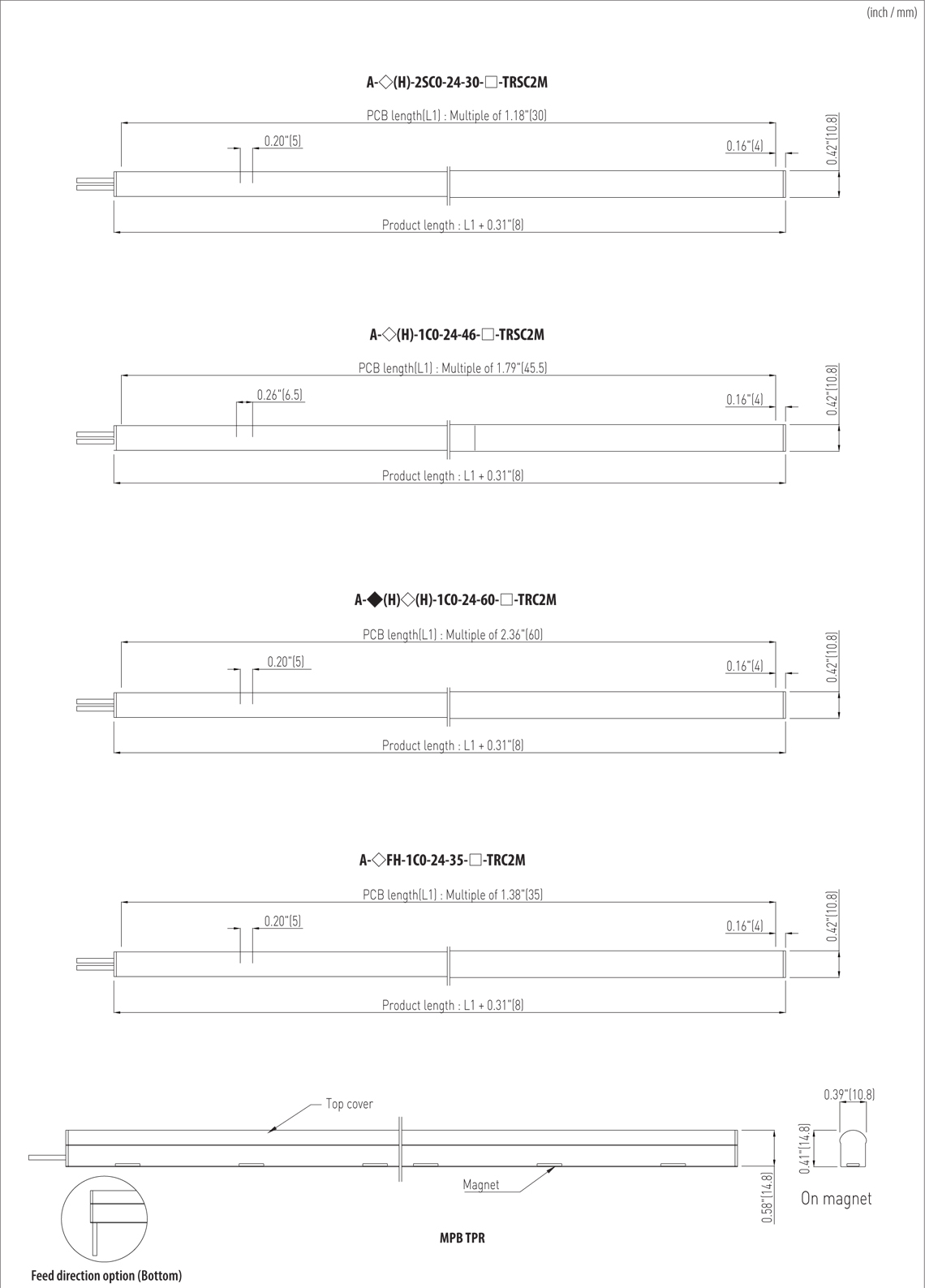

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
