Project Description
QPB W
FEATURES
- Constant current circuit for steady lumen output along the strip.
- Suitable for indoor wall wash or semi-outdoor.
- Unique optical performance with high evenness of light spread of
12°, 15°, 22°, 30°, 45°, 10×60°, Unique180° swiveling brackets - UV filtering option, Louver options for glare cut.
- Dust and water protection with UV stabilized clear cover
- IP40, IP65
- Maximized evenness of CCT and brightness by professional bin management.

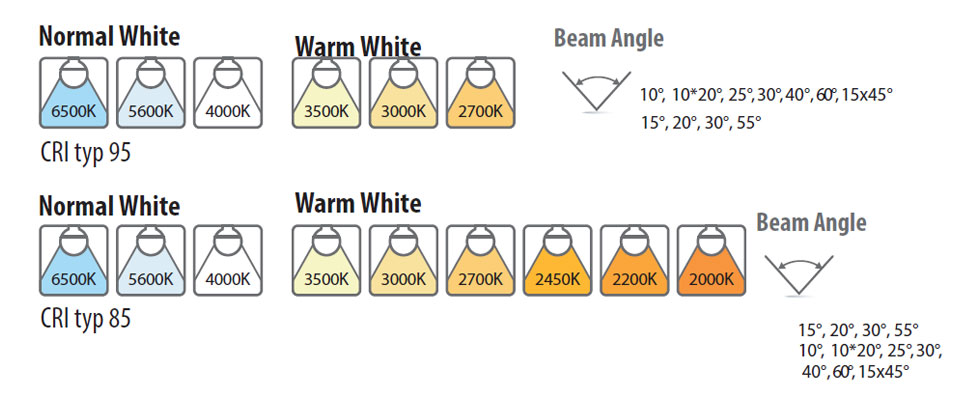

- Wide range of CCT options (2700K ~ 7000K).
- A short increment for precise fitting.
- Bespoke option for CCT, CRI, Watt and more.

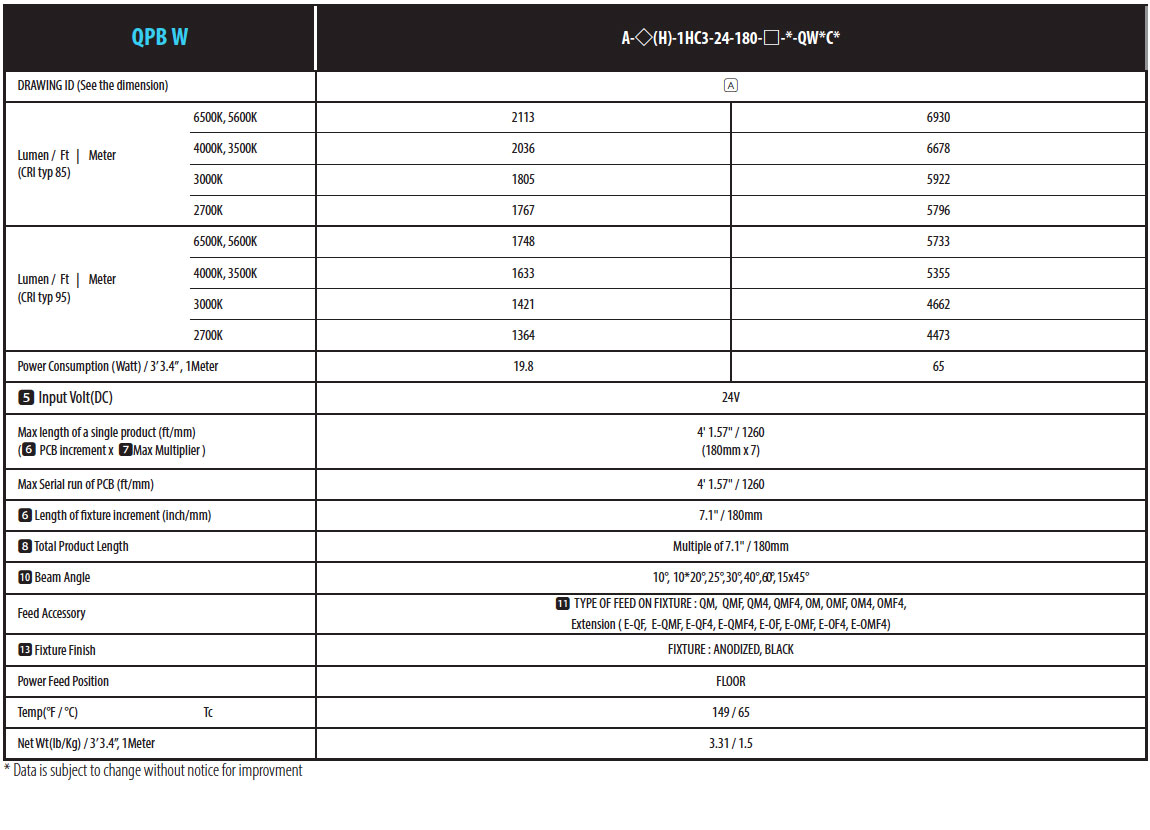

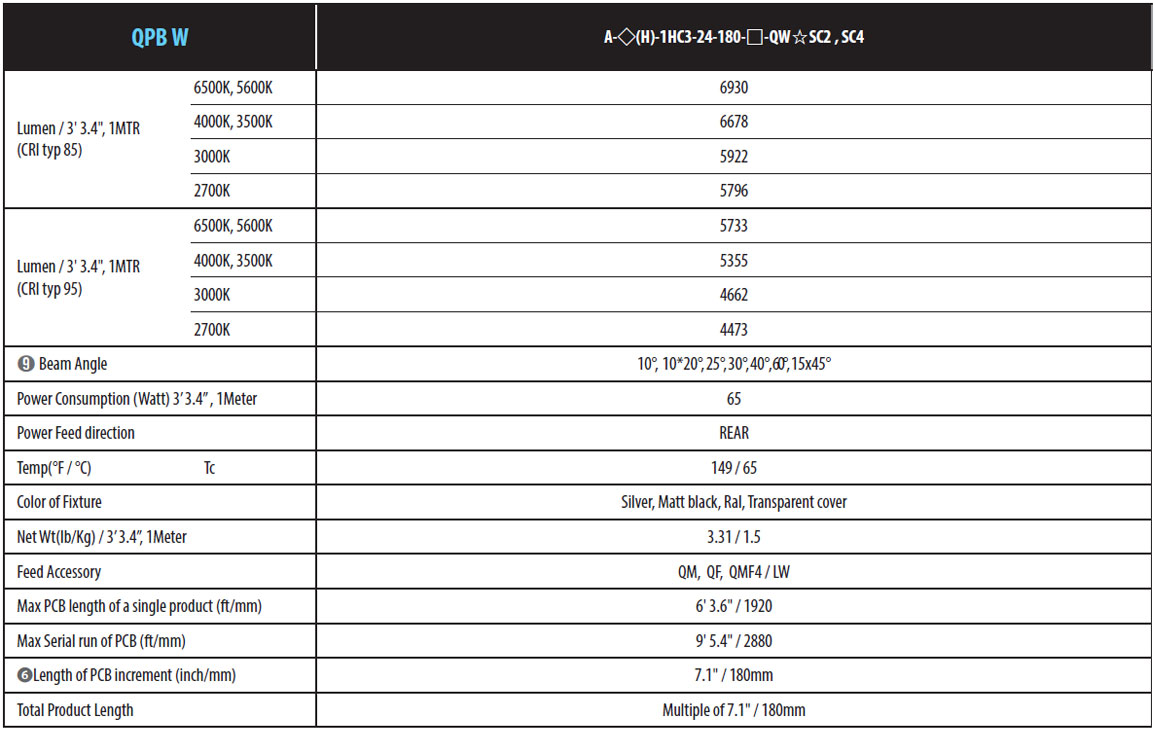

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
- 1) Name ………………………………………………… ACROSENTEC
2) CCT
3) Level of CRI ………………………… H : CRI typ 95, Blank : CRI typ 85
4) LED pitch(inch/mm) ………………………… Refer to the Dimension
5) Input VOLT(DC) ……………… 24V
6) Length of PCB incre.(inch/mm) ………… Refer to the table
7) Quantity of the PCB increment …………………………. Variable
8) Product model ………………………………… QPB W
9) Beam Angle ………………………………… Refer to the table
10) Feed receptacle ………….. S : Single end LW, B : Both ends LW, QM, QF, QMF4, OM, OF, OMF4
11) IP Rate ……………………………………………….C2 : IP40 , C4 : IP65
Dimming ………………………………………….. PWM, 0-10, DMX
Operation Temp(°F/°C) …………………… Ta : -13~122 / -25~50
Expected Life Hours ……………………….. 60000 Hrs
Mounting Accessory ………………………. QP
* Data is subject to change without notice for improvement

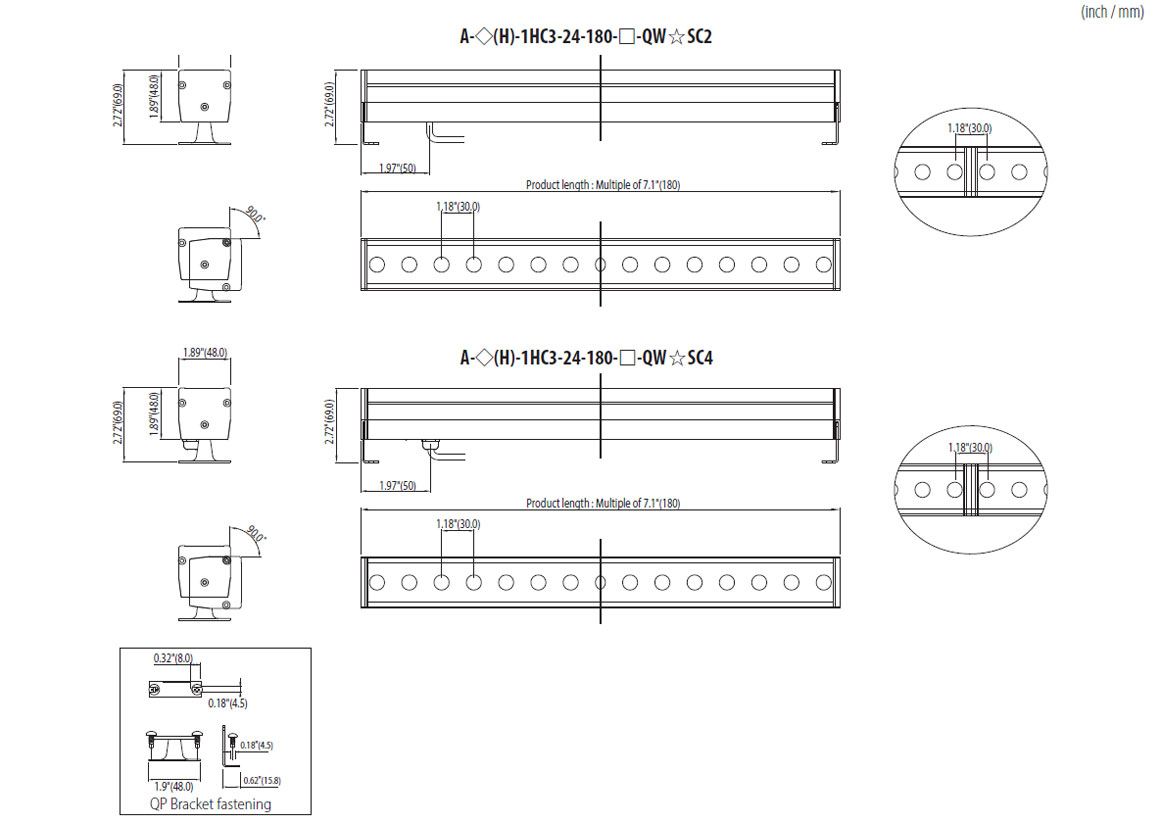

DIMENSTION
* Data is subject to change without notice for improvement
