Project Description

MOSAIC_LGP

FEATURES

Constant current circuit for steady lumen output over the area.
Light guided illuminating sheet desirable for back light or indirect light such as shelf , decorative back lighting with size up to 46″ x 94″.
IP40
Maximized evenness of CCT and brightness by professional bin management.

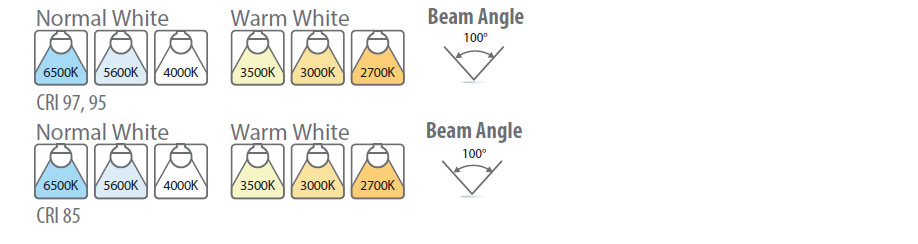

Wide range of CCT options(2700~7000K standard, 1800K ~ 2600K on request),  Dual white, RGB

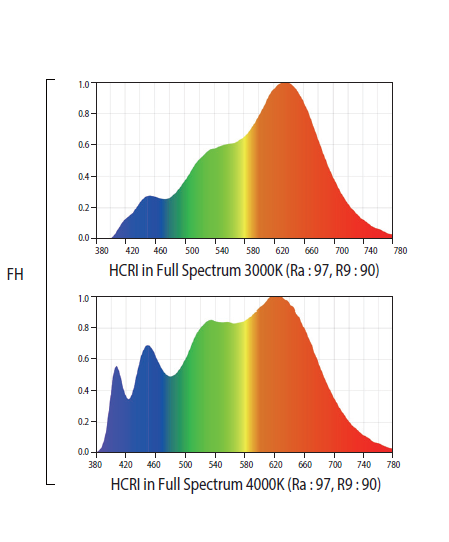

HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum.
A short increment for precise fitting
Bespoke option for CCT, CRI, Watt and product size.

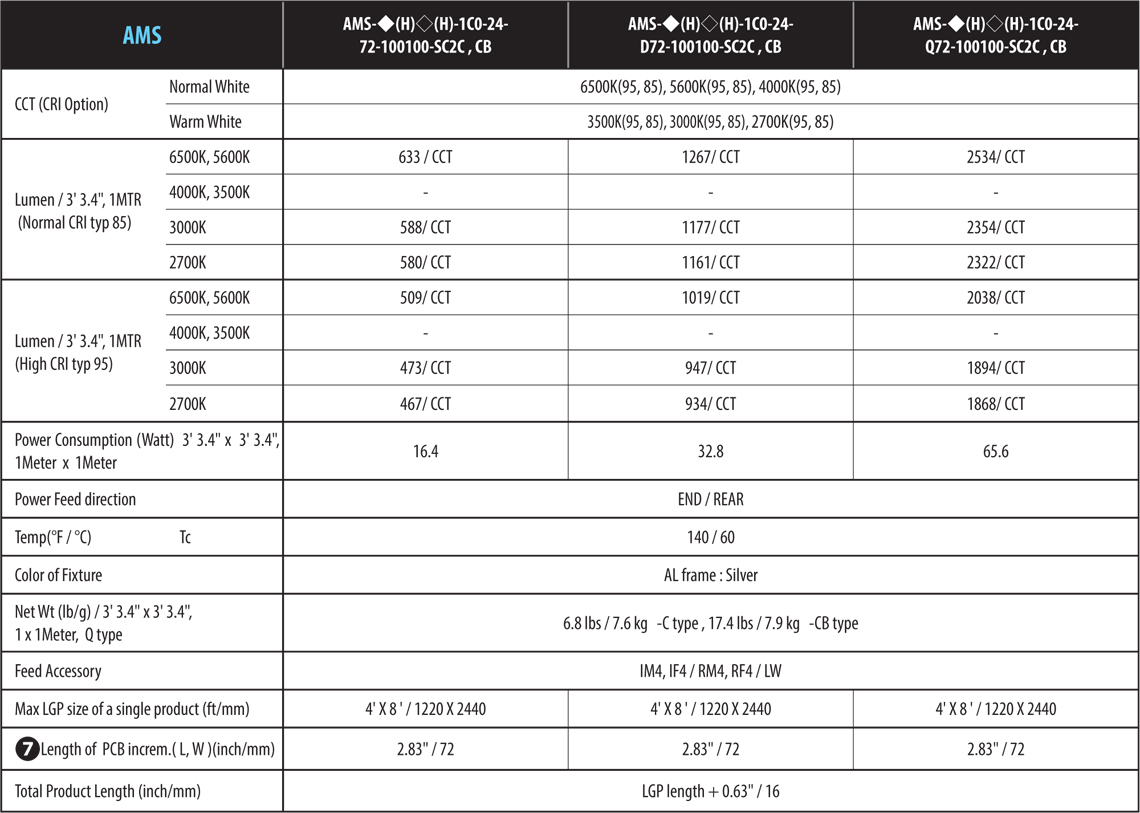

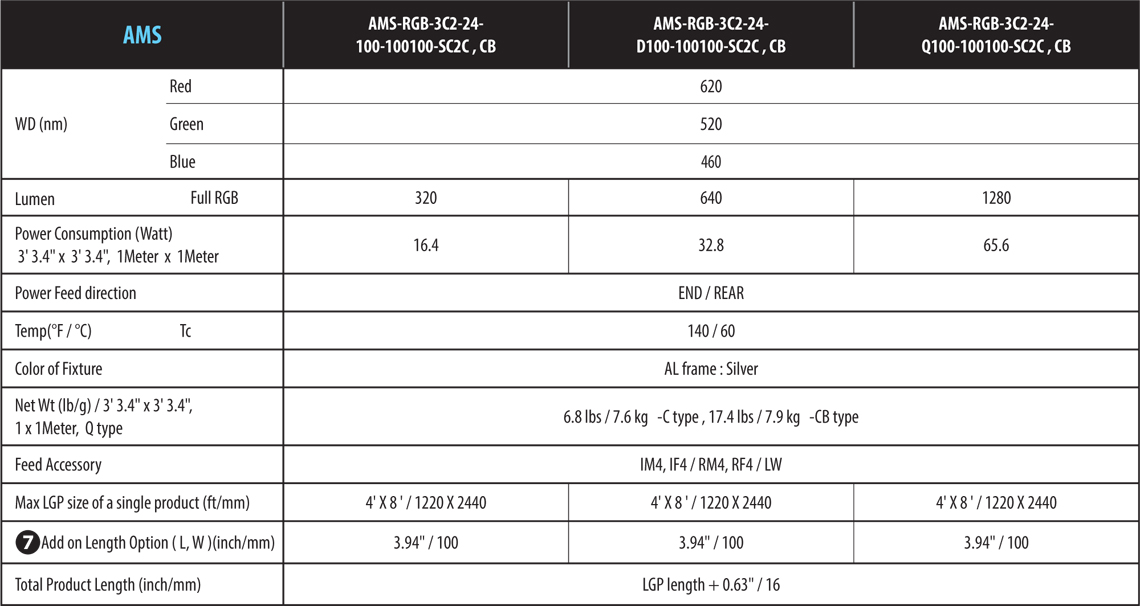

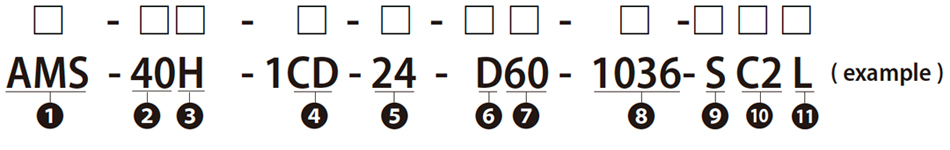

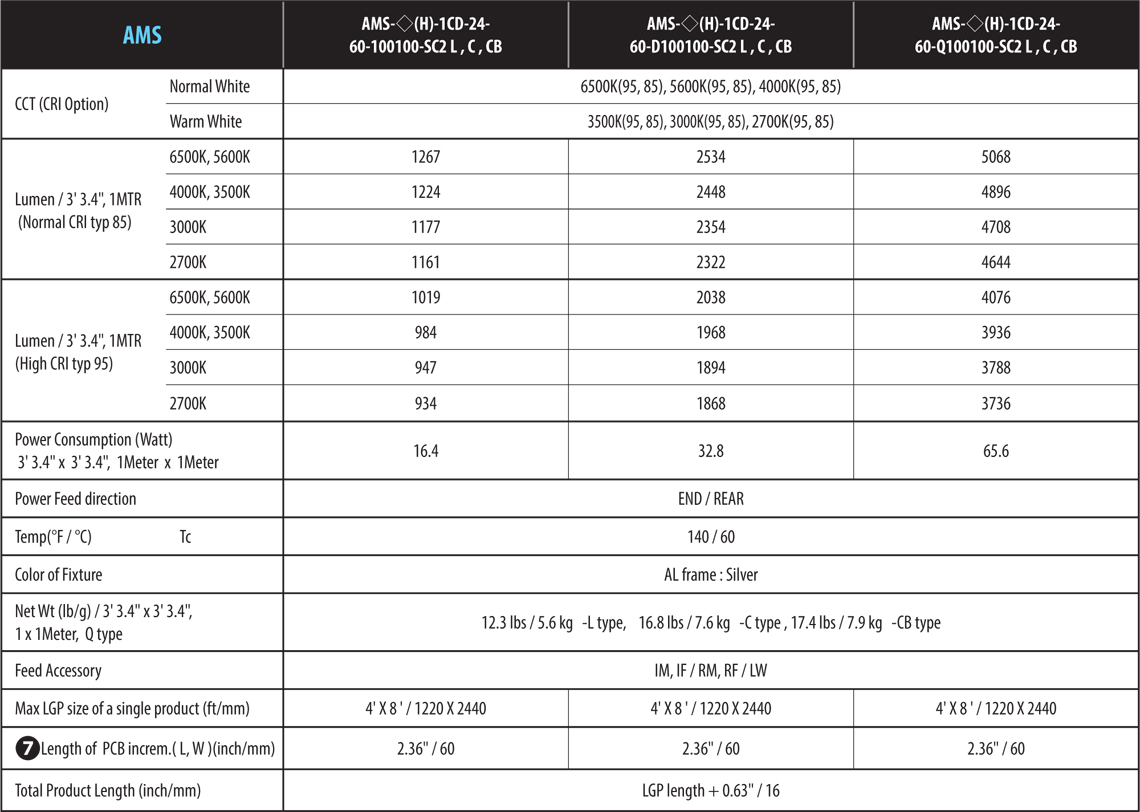

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC MOSAIC

  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI 95, Blank : CRI 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Location of LED light ……………………… Blank : single line, D : double lines, Q : 4 lines

  • 7) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 8) Overall size …………………………. Custom made

  • 9) Feed receptacle ………….. S : ingle end LW, B : Both ends LW, IM, IMF, IM4, IMF4 , RM, RMF, RM4, RMF4

  • 10) IP Rate C0 : IP20, C3 : IP65, C03 : IP65(coated on the board surface)
  • 11) Product type ……………………………………. L : L type , C : C type, CB : C type with brackets

  • Dimming ………………………………………….. PWM, 0-10, DMX
    Beam Angle …………………………………….. 100°
    Operation Temp(°F/°C) …………………… Ta : -13~122 / -25~50
    Expected Life Hours ……………………….. 60000 Hrs
    Mounting Accessory ………………………. DS, MG, Brackets(with screw), Customized

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

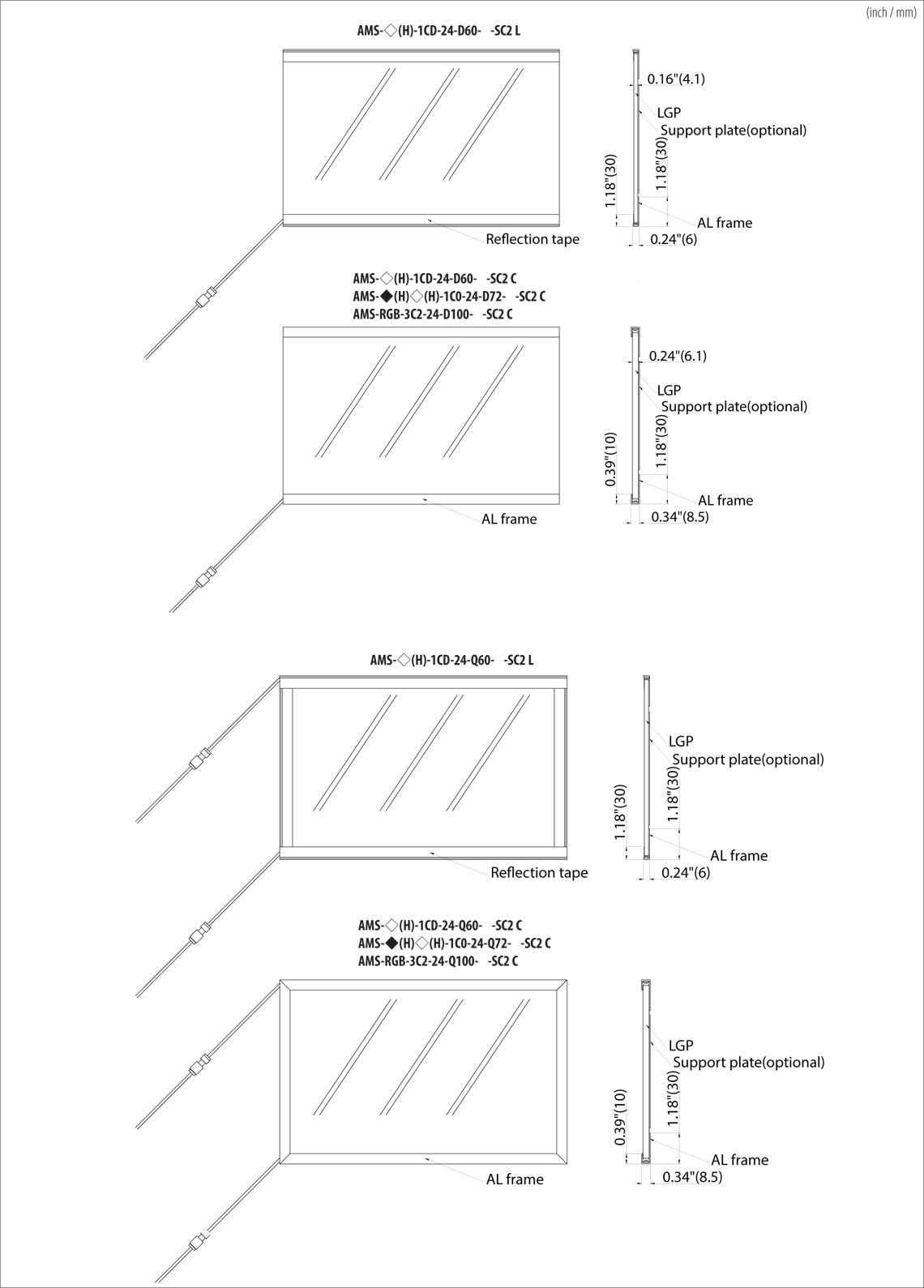

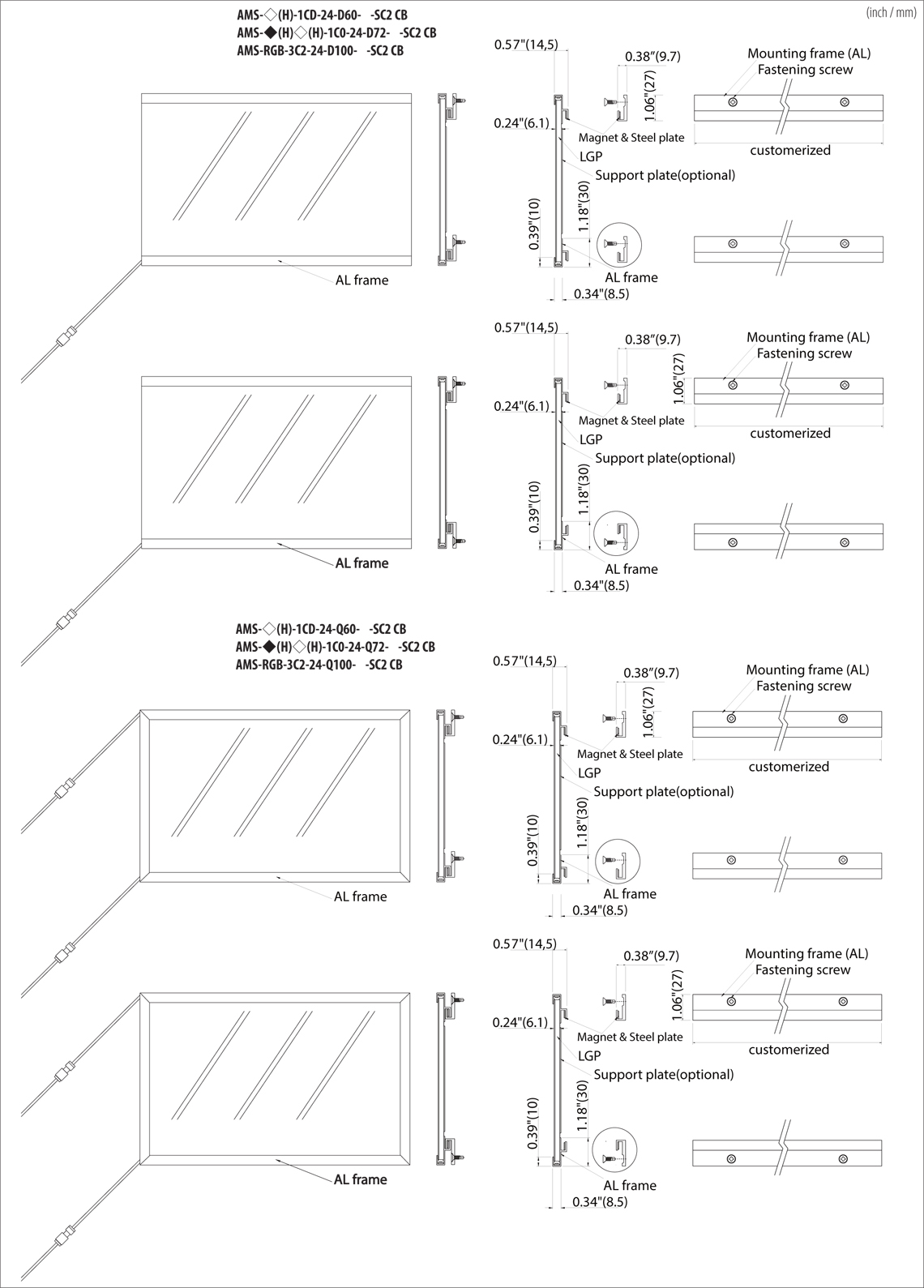

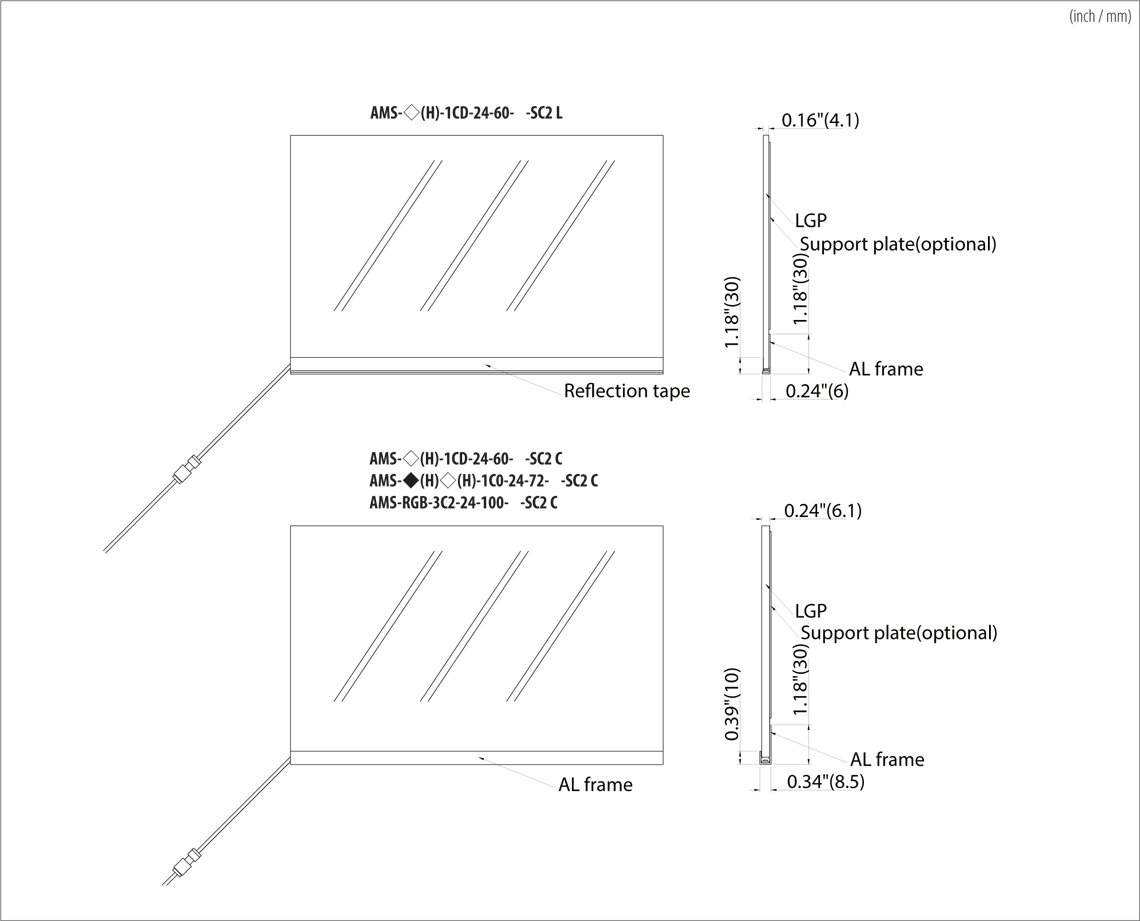

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
