Project Description
MPB R, RS
FEATURES
- Constant current circuit for steady lumen output along the strip.
- Very slim and low profiles for elaborate space.
- Splendid consistency in beam spread and dust protection with UV stabilized opaque.
- IP Rate IP40
- Maximized evenness of CCT and brightness by professional bin management.

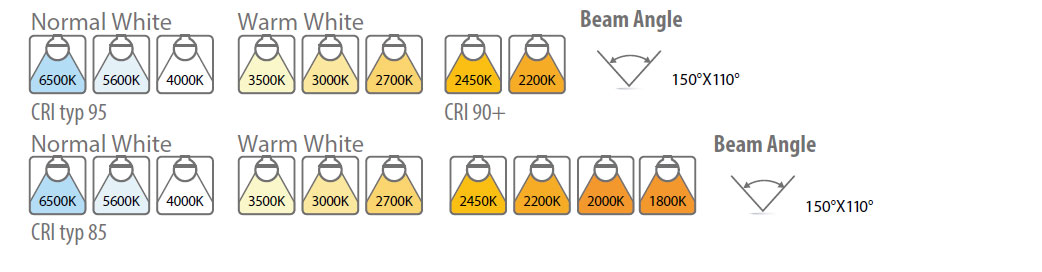

- Wide range of CCT options(1800K ~ 7000K), Dual white
- HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
- A short increment for precise fitting
- Wide beam angle.
- Suitable for either surface mount or recessed. Replacement of T5 tube. Concealed bracket
- Bespoke option for CCT, CRI, Watt

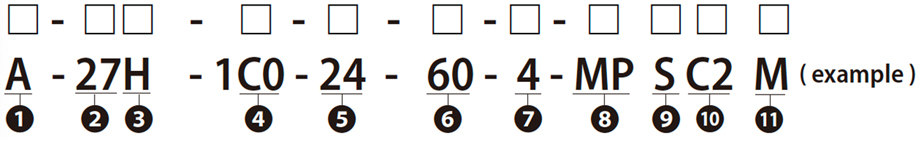

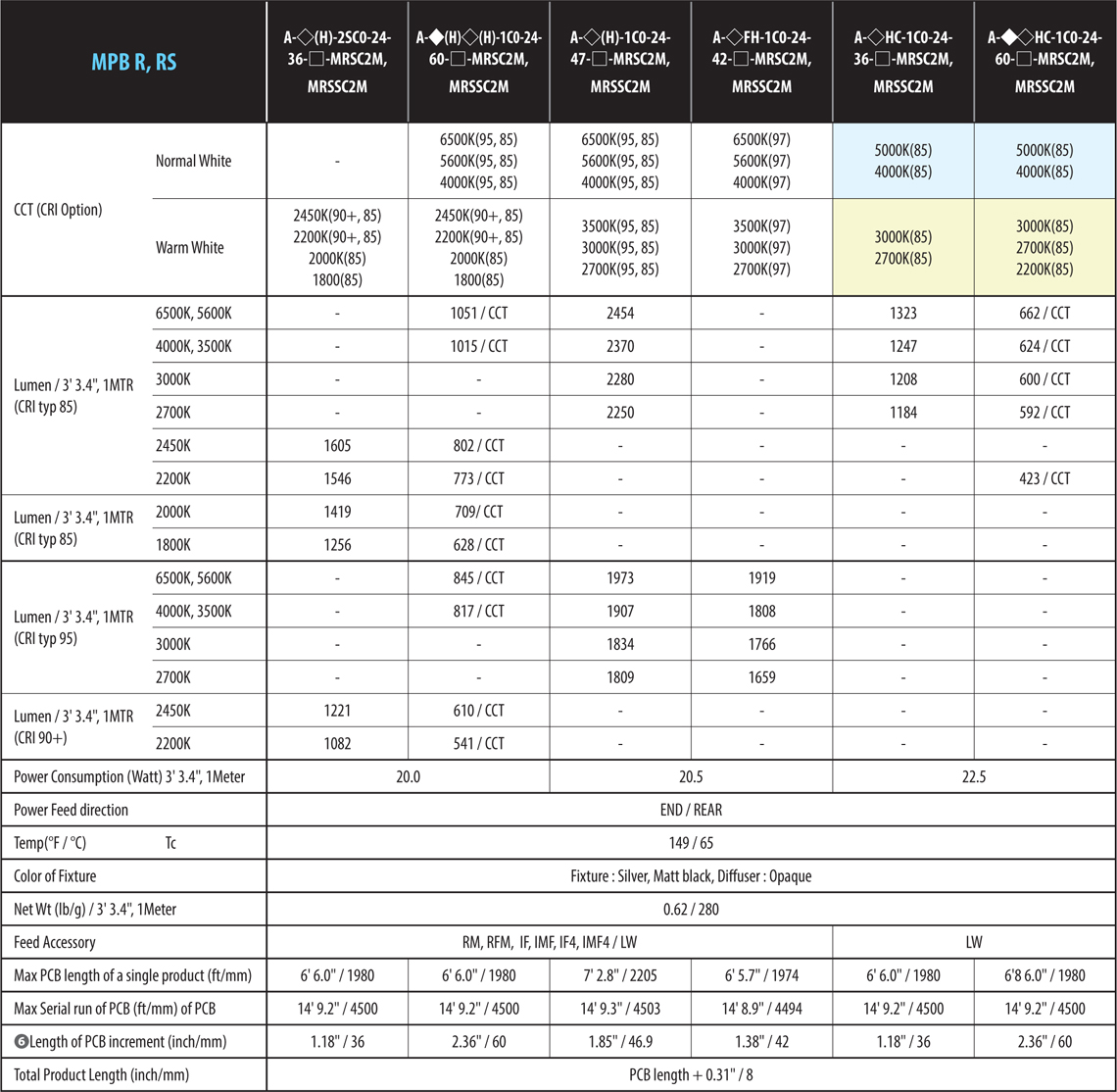

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
- 1) Name ………………………………………………… ACROSENTEC
2) CCT
3) Level of CRI ………………………………………. FH : CRI typ 97, H : CRI typ 95, 90+, Blank : CRI typ 85, HC : Human Centric 85

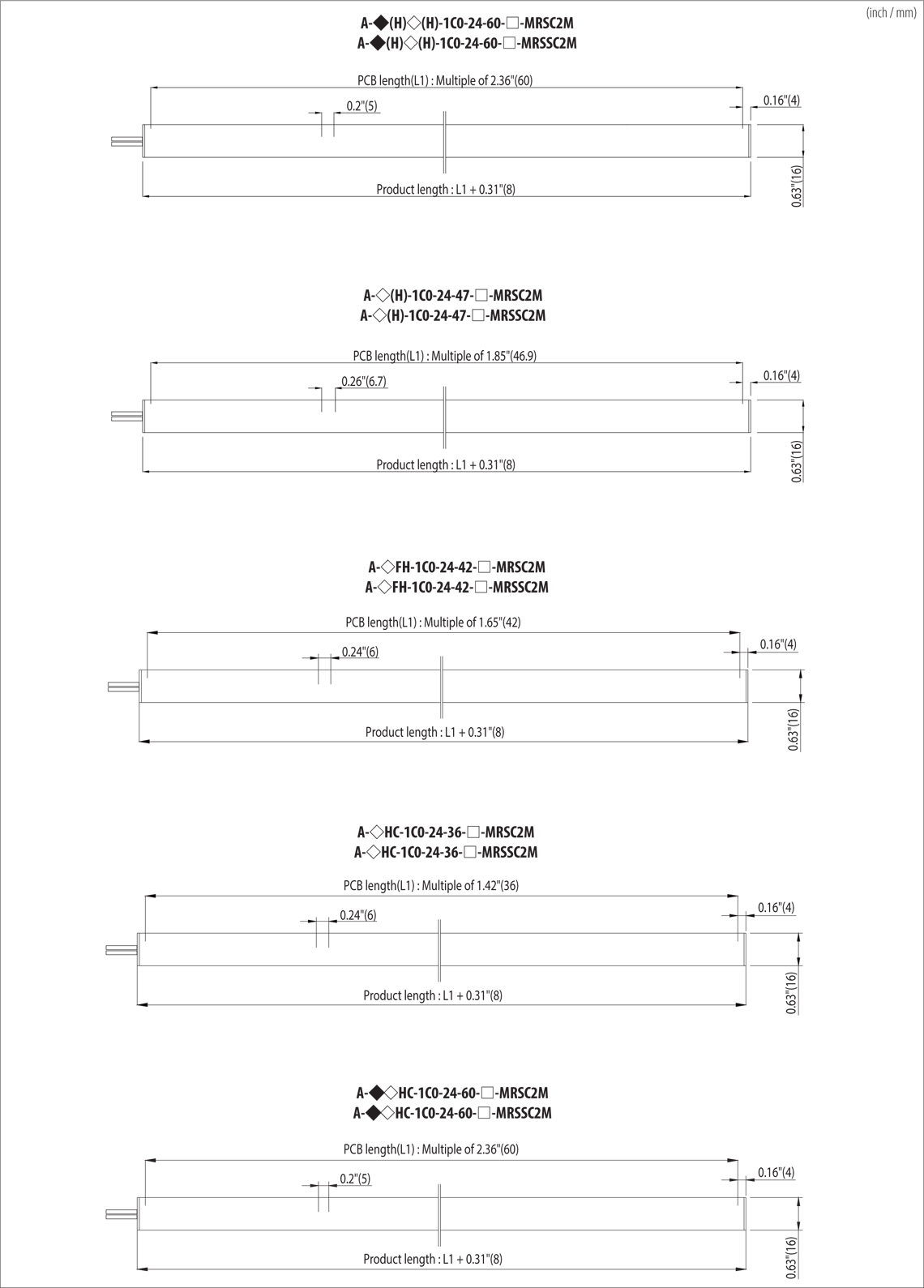

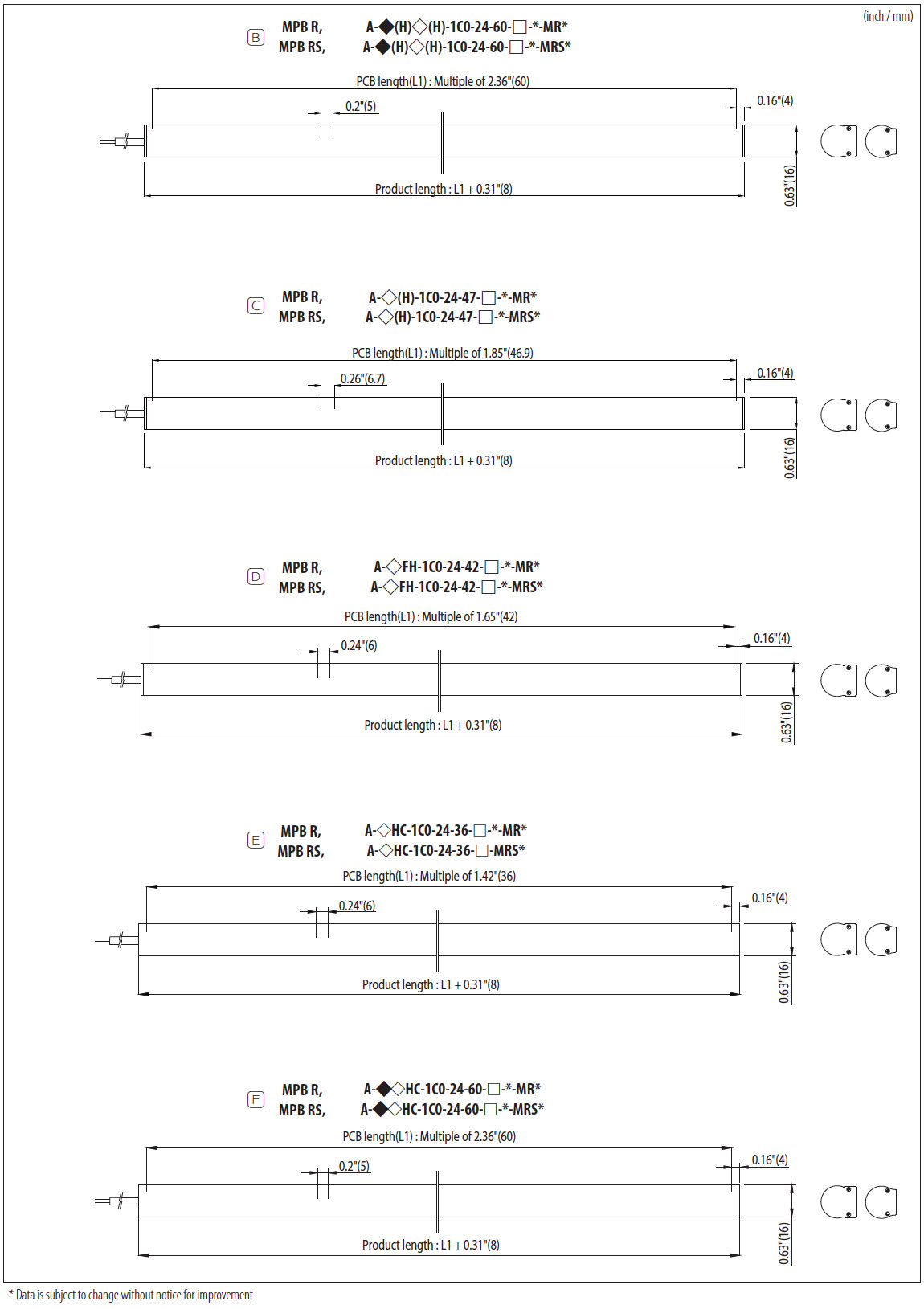

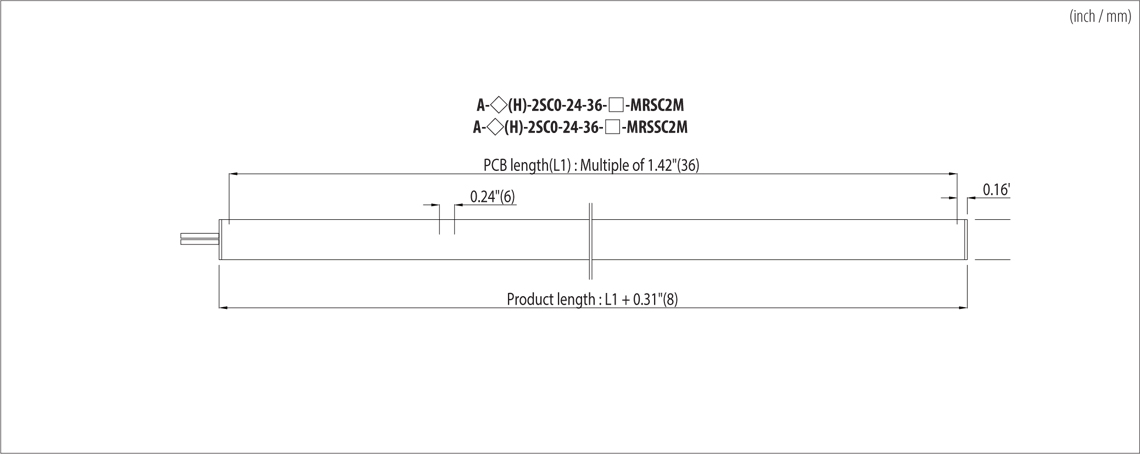

4) LED pitch(inch/mm) ………………………… Refer to the Dimension
5) Input VOLT(DC) ……………… 24V
6) Length of add-on(inch/mm) …………. Refer to the table
7) Quantity of add-on …………………………. Variable
8) Product model ………………………………… MR : MPB R, MRS : MPB RS
9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4
10) IP Rate ………………………………………………. C2 : IP40
11)
Diffuser type ……………………………………. M : Opaque
Dimming ………………………………………….. PWM, DALI, 0-10, DMX
Beam Angle …………………………………….. 150°
Operation Temp(°F/°C) …………………… Ta : -13~122 / -25~50
Expected Life Hours ……………………….. 60000 Hrs

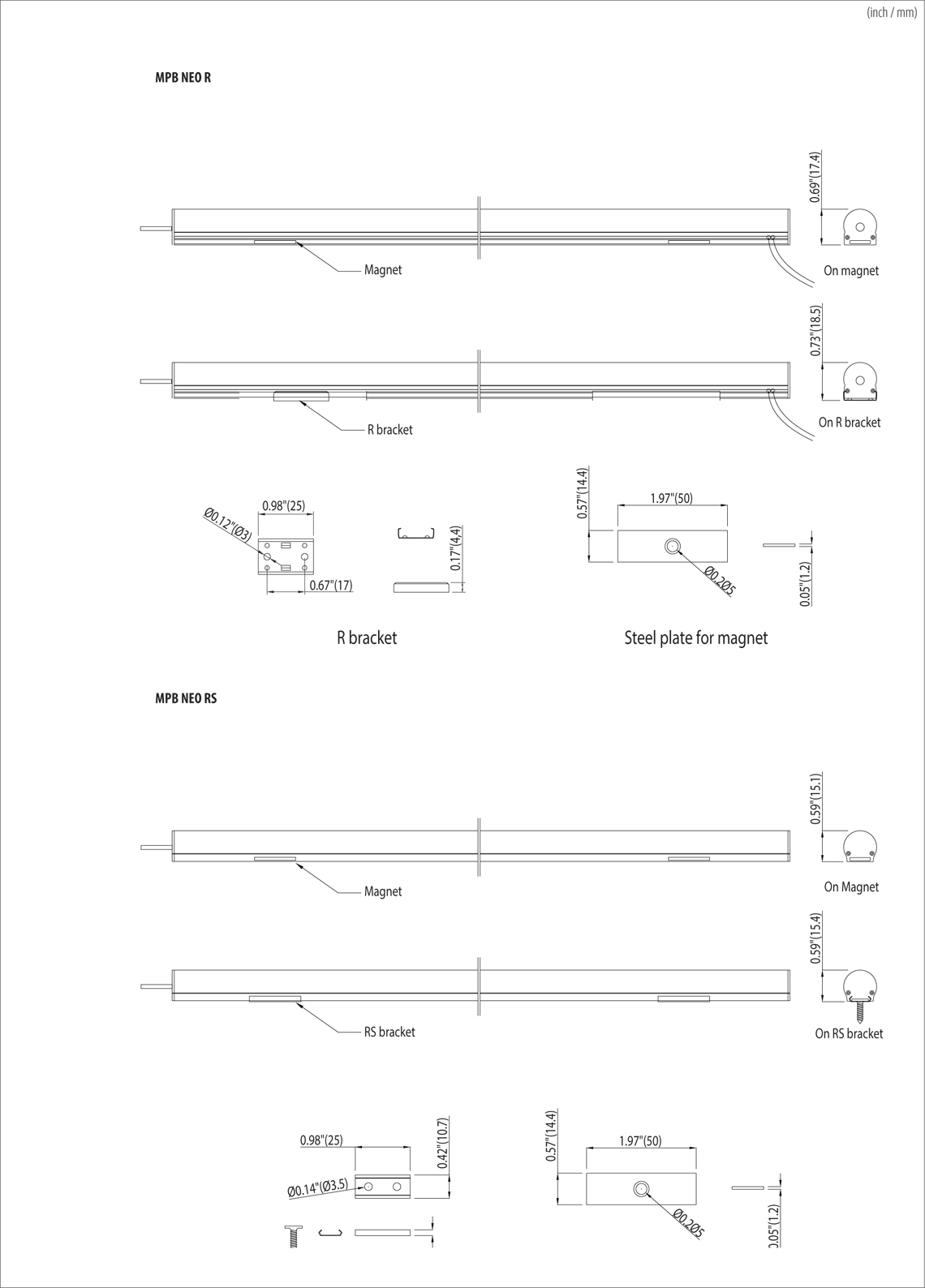

Mounting Accessory ………………………. Bracket (R, RS), Magnet (MG), Tape (DS)
