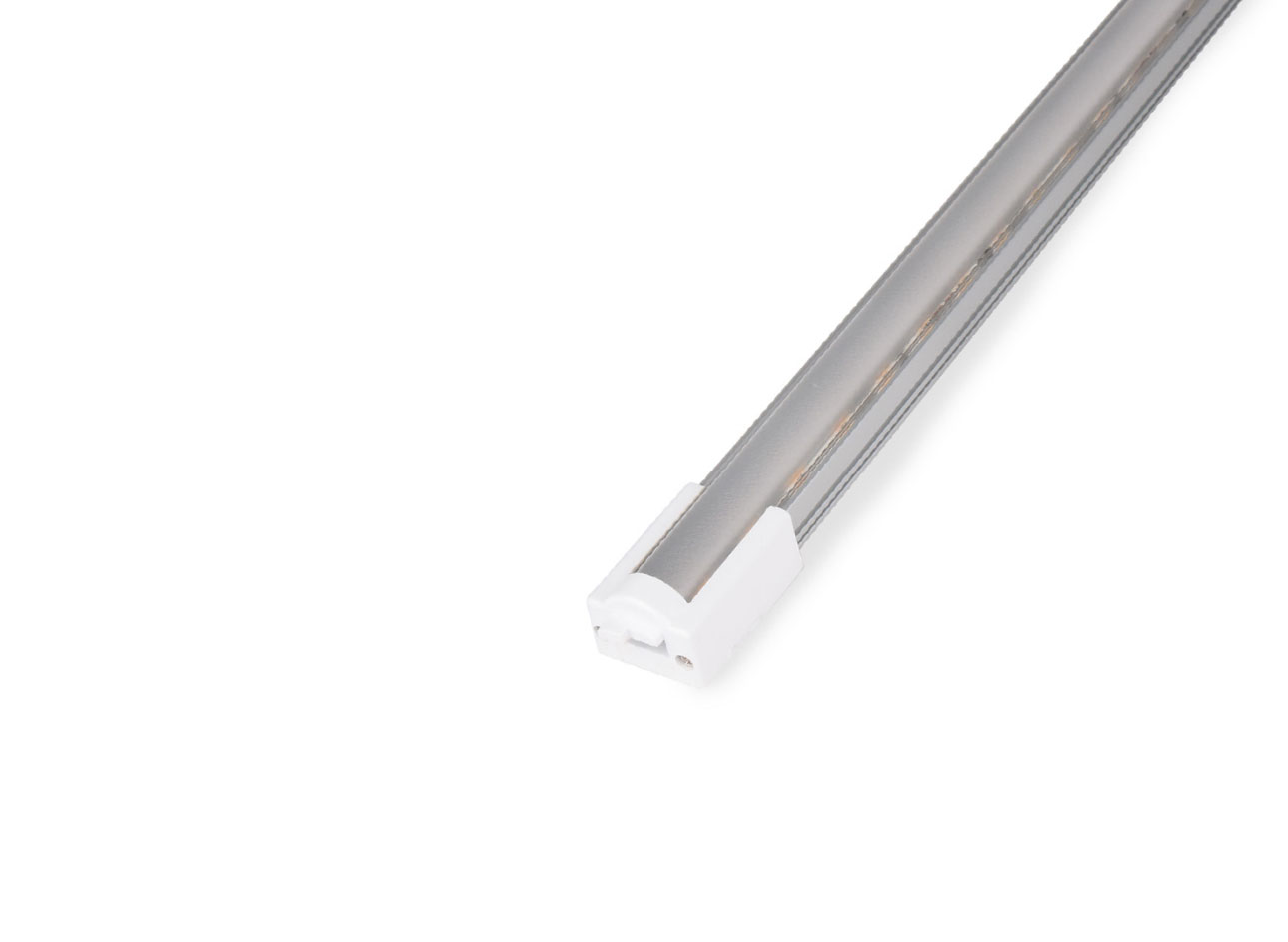

MPB NEO i

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Slim and low profi les for elaborate space.
  • Narrow oval projection for wall wash with uniquely designed
    linear lens 60 , 40 , 25 beam angle.
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

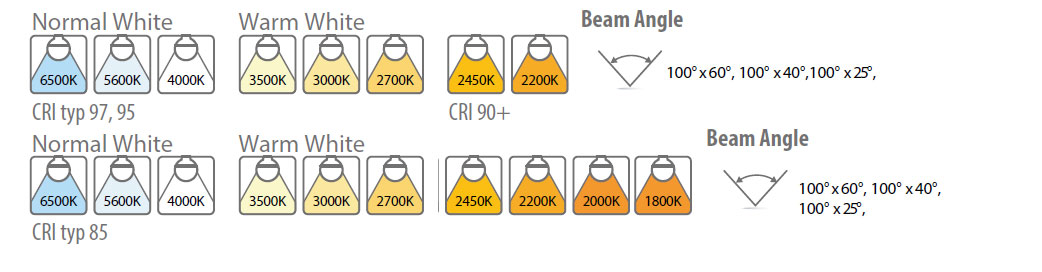

  • Wide range of CCT options (1800K ~ 7000K), Dual white
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fi tting
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

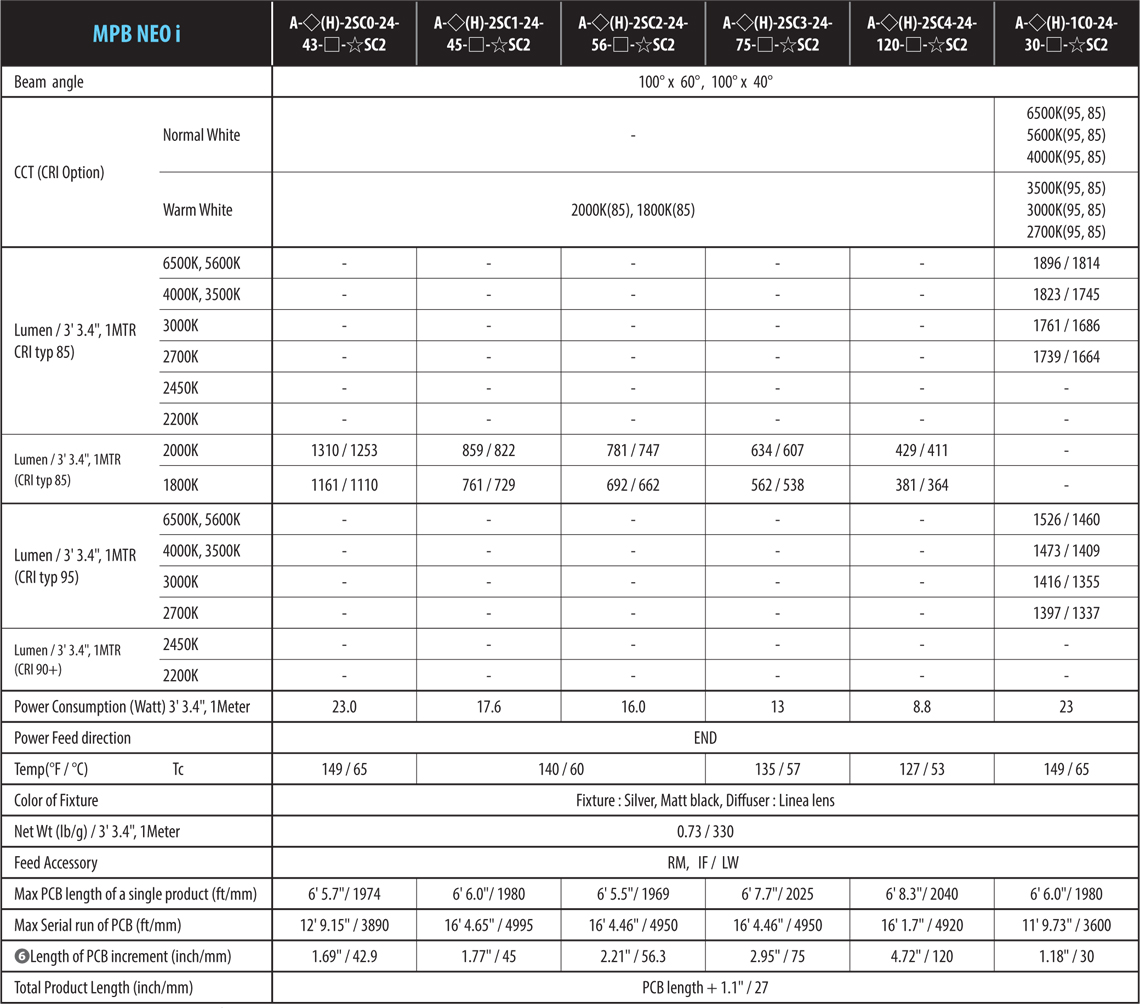

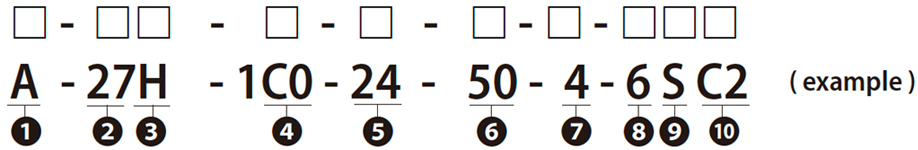

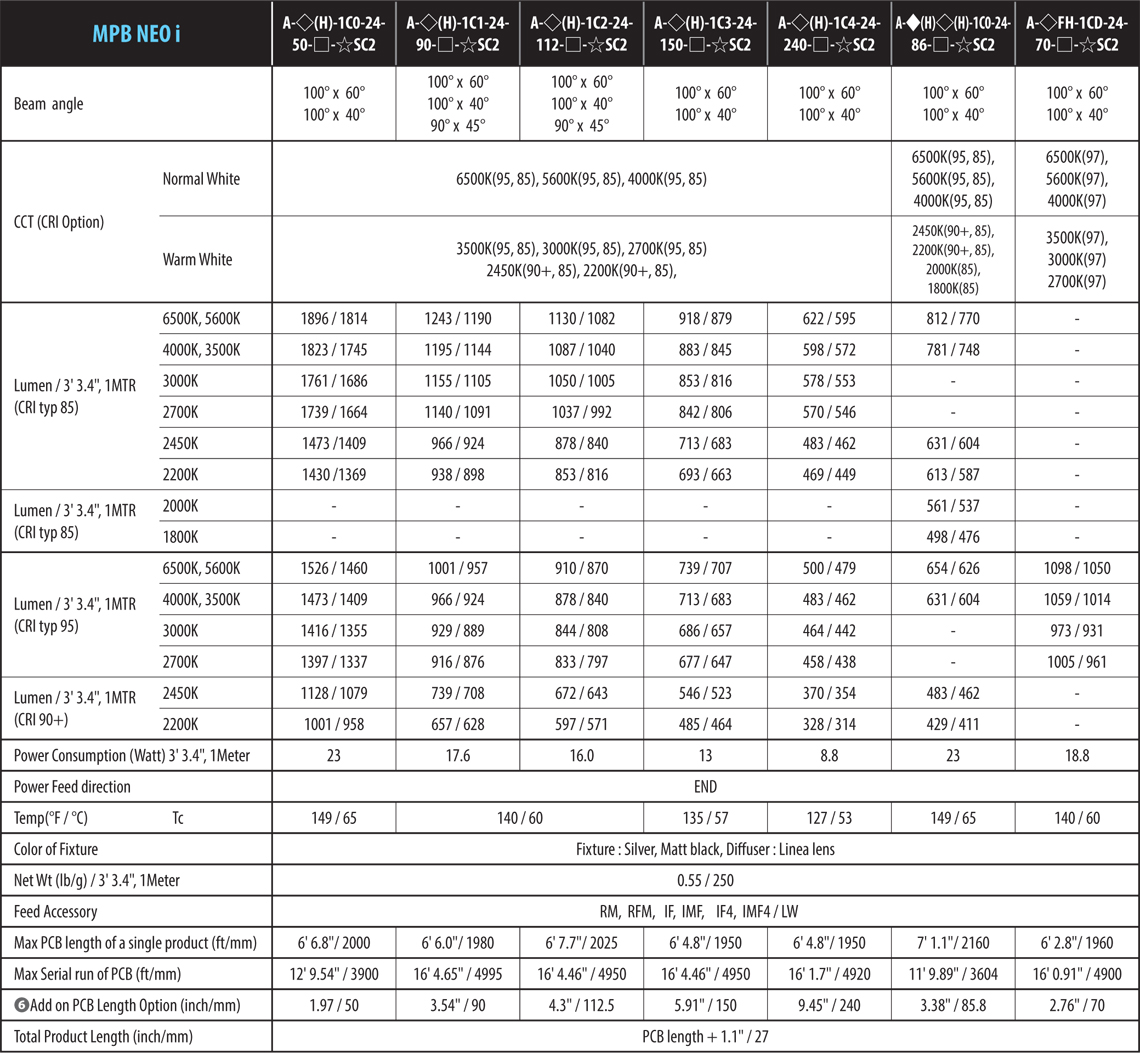

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. FH : CRI typ 97, H : CRI typ 95, 90+, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table

  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… 6 : MPB NEO i 100° x 60° , 4 : MPB NEO i 100° x 40° ,

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4, IM5, IMF5

  • 10) IP Rate ………………………………………………. C2 : IP40

  • Dimming ………………………………………….. PWM, DALI, 0-10, DMX
    Beam Angle
    …………………………………….. 100° x 60°, 100° x 40°, 90° x 45°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs

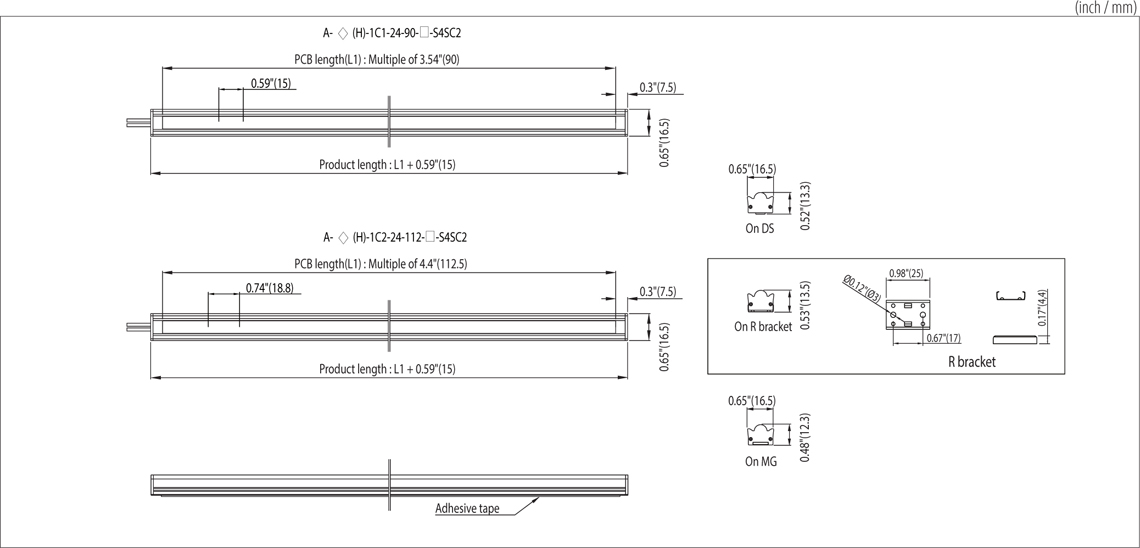

    Mounting Accessory
    ………………………. Bracket ( N, NJ ) for 6, 4, Bracket (R) for S4
    Mounting Accessory ………………………. Magnet (MG) for S4, Tape (DS) for 6

Data is subject to change without notice for improvment

Data is subject to change without notice for improvment

Data is subject to change without notice for improvment

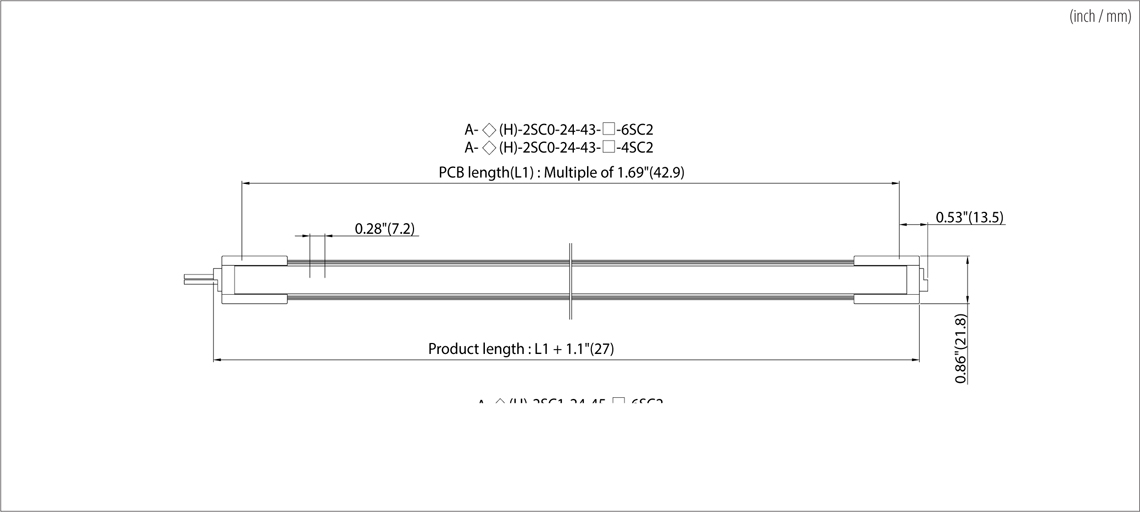

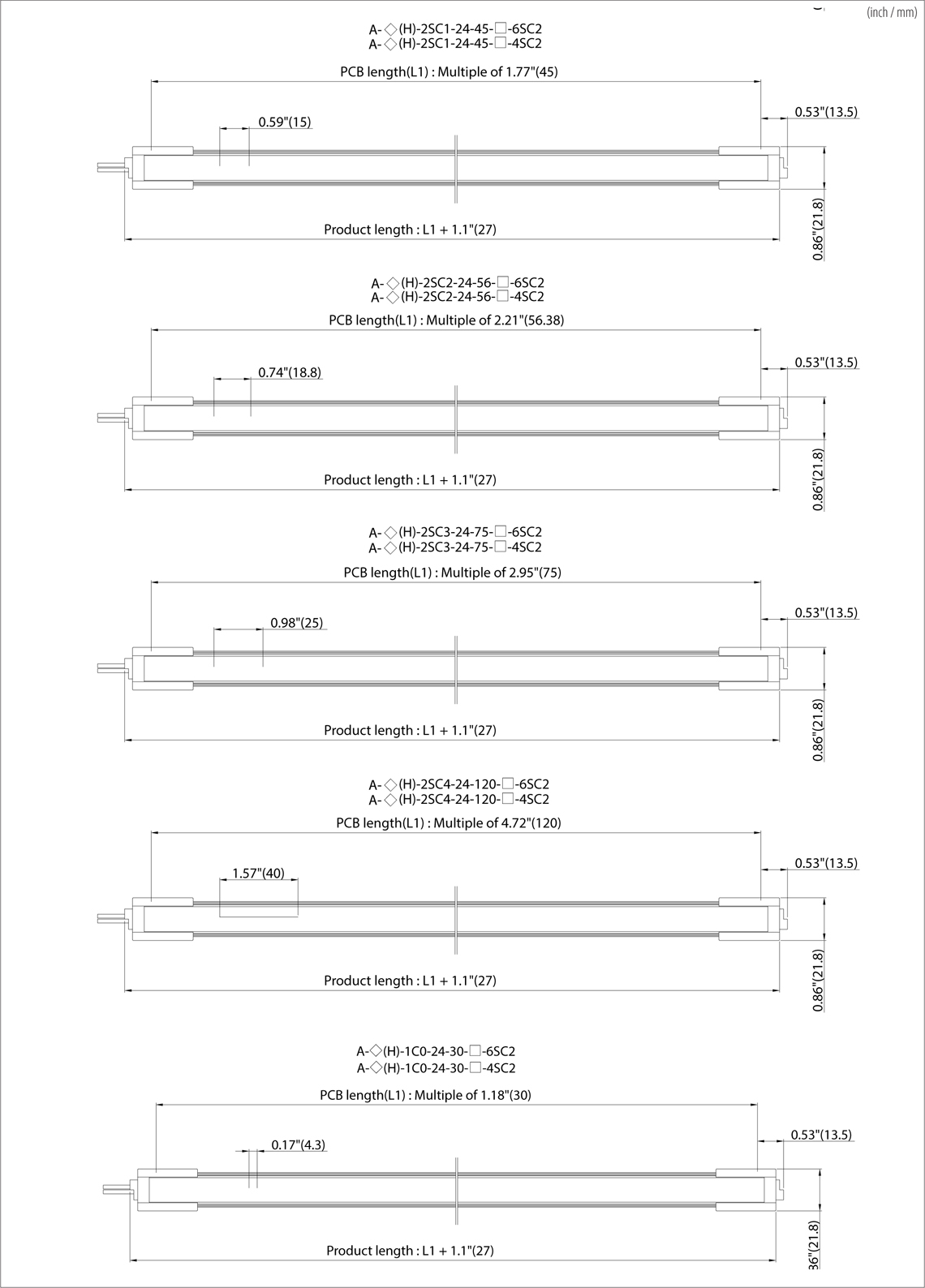

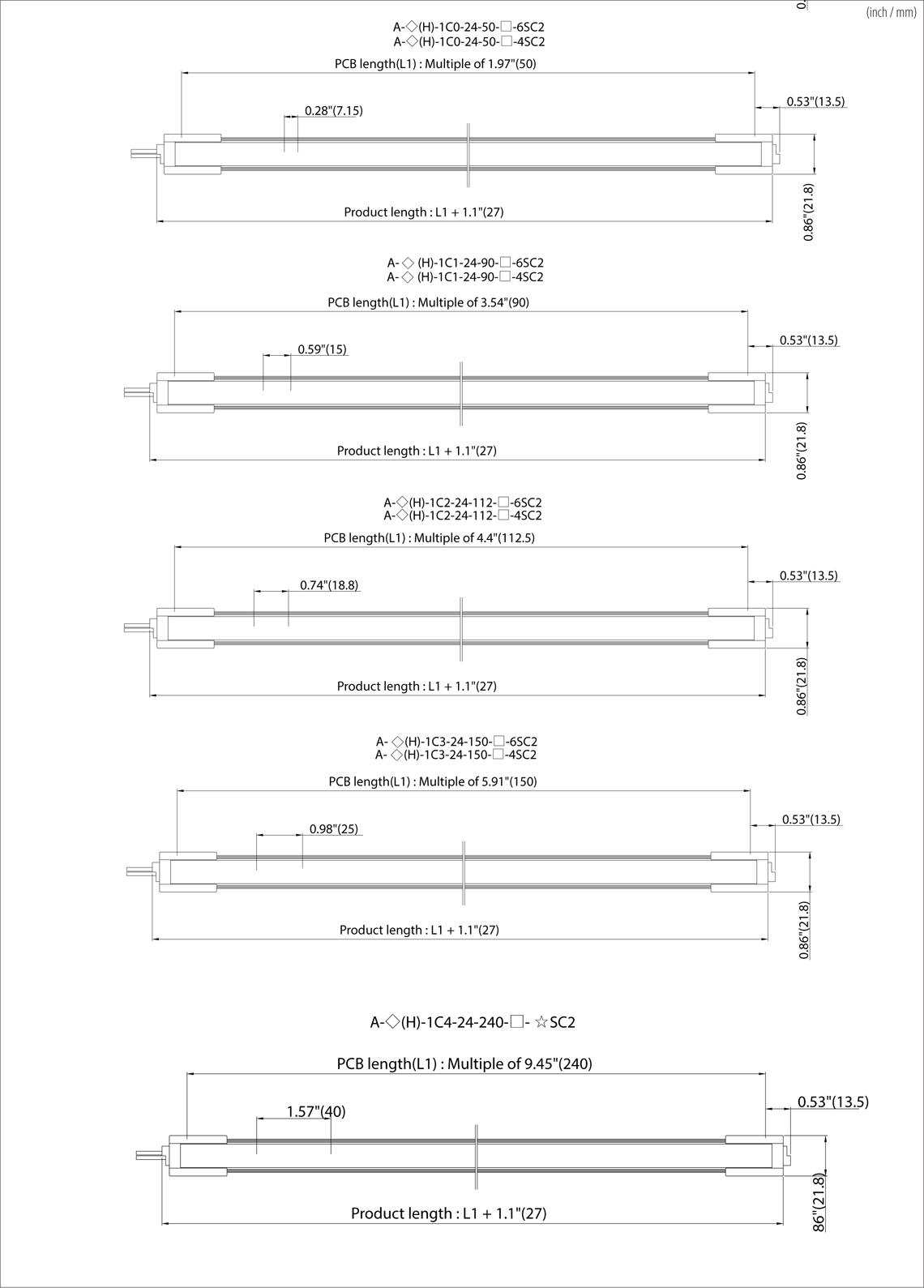

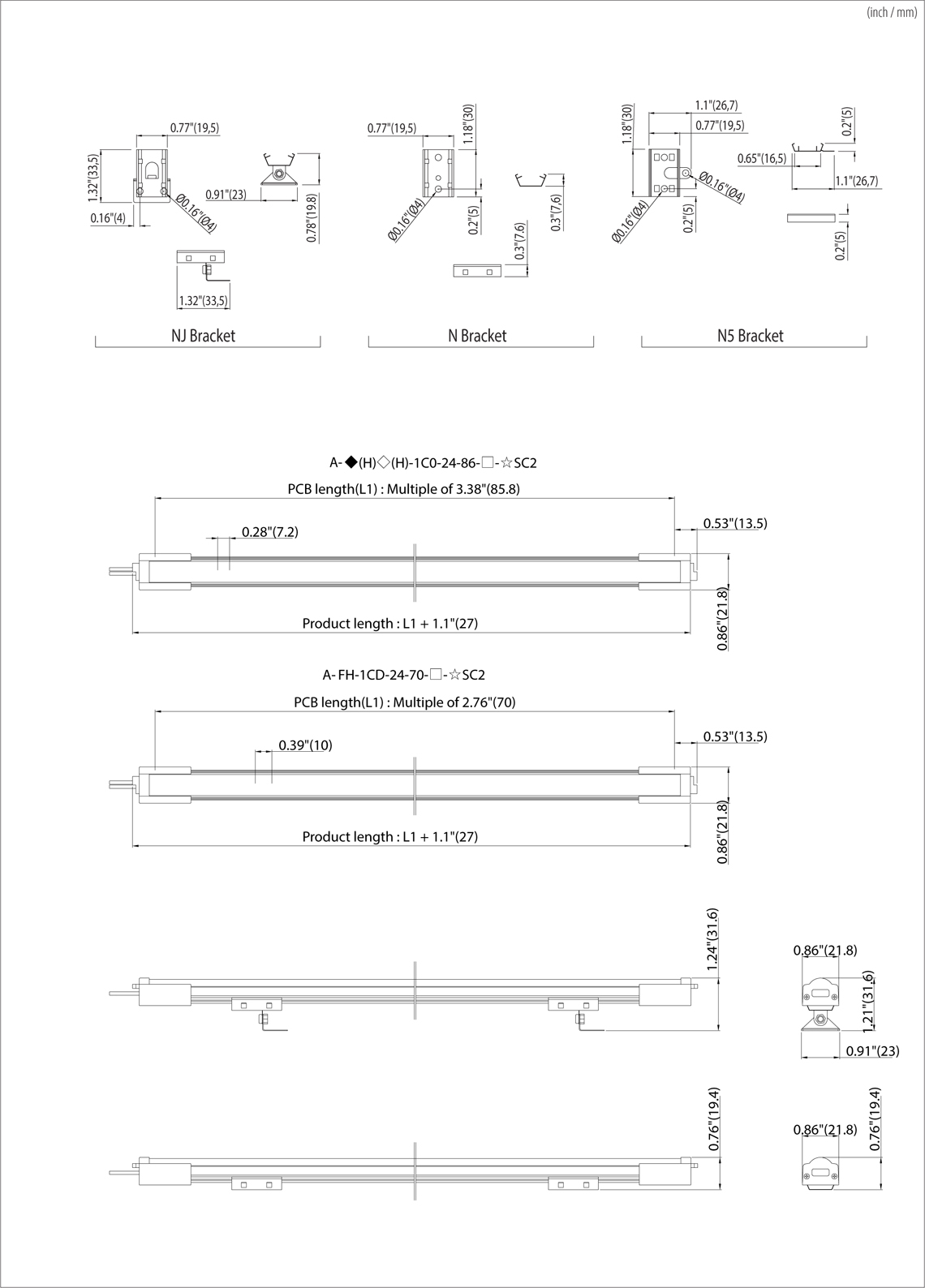

DIMENSTION

* Lumen value is based on with opaque diffuser

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

DOCUMENTATION
