Project Description

MPB P

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Very slim profile pendant light.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque or light opaque cover
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

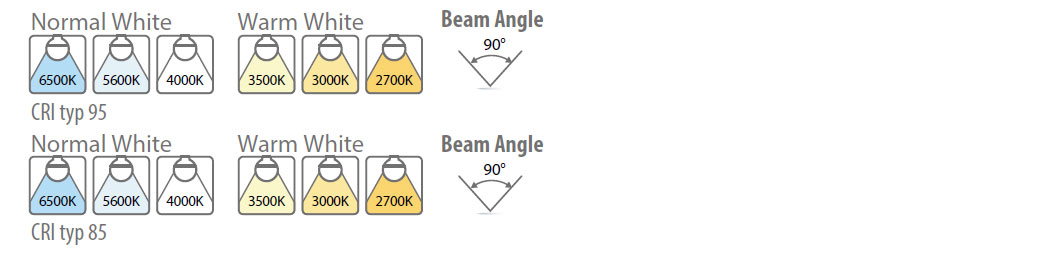

  • Wide range of CCT options(2700K ~ 7000K), Dual white option.
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

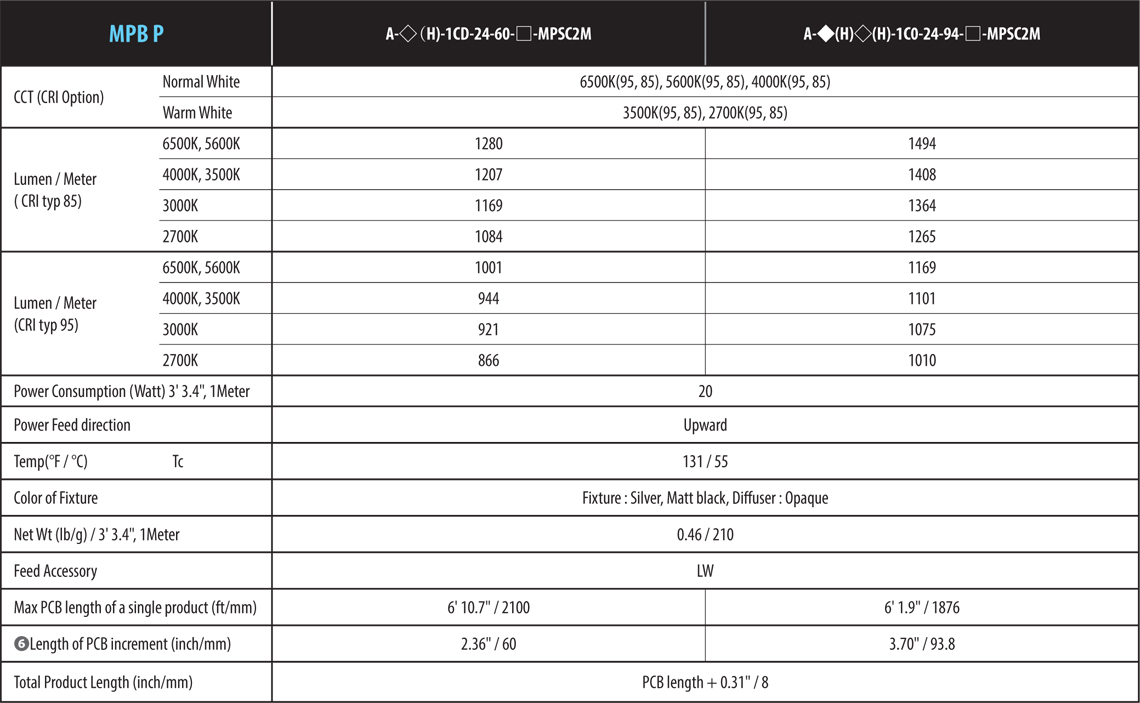

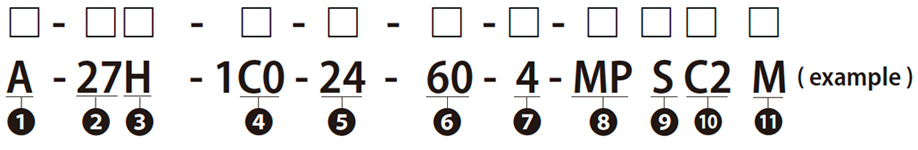

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. FH : CRI 97, H : CRI 95, Blank : CRI 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… MPB P

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque
    Dimming
    ………………………………………….. PWM, 0-10, DMX
    Beam Angle
    ……………………………………..  90°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Metal cable kit

Data is subject to change without notice for improvment

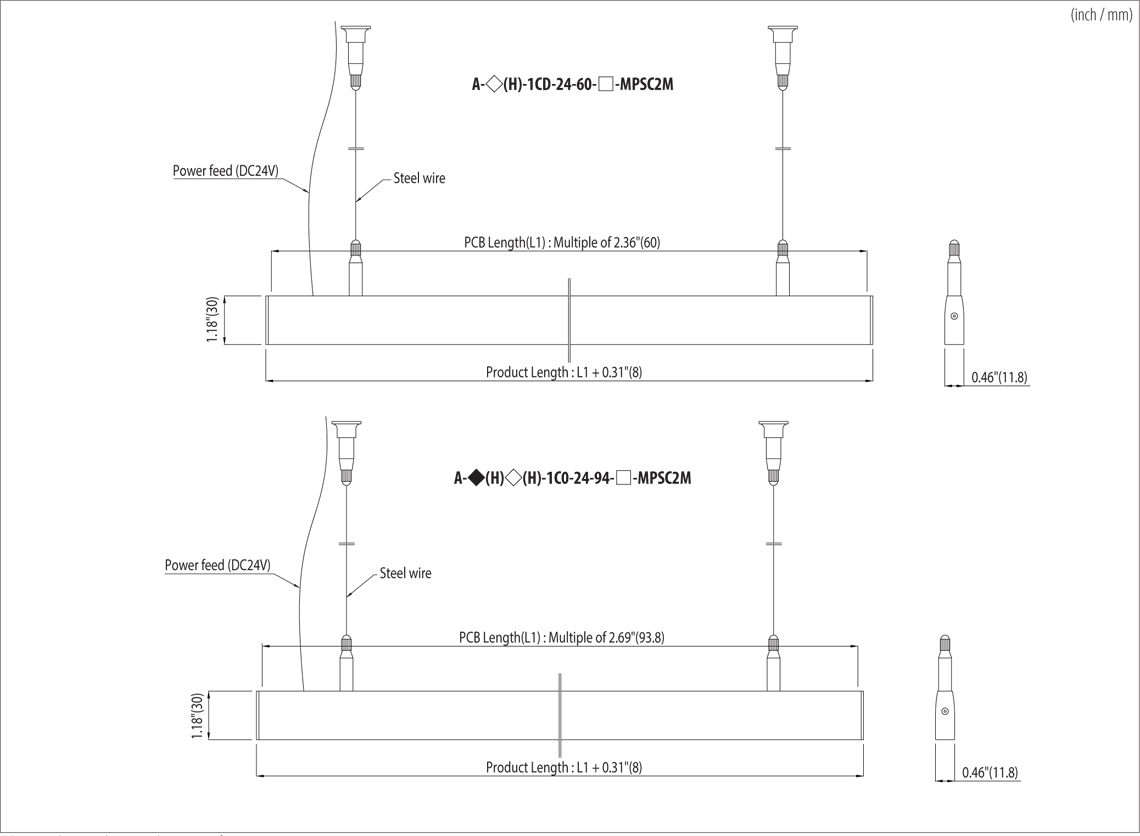

DIMENSTION

* Data is subject to change without notice for improvement

DOCUMENTATION
