Project Description

BLUETOOTH MESH CONTROL (RGBW, TUNABLE)

OVERVIEW
FEATURES
  • Bluetooth mesh newwork
  • Touch interface (using iOS, androd device)
  • Controls RGB (3CH), RGBW(4CH) or TUNABLE fixtures
  • Controls max 250 zones synchronously or separately
  • Possible to creat Instant static color or effect programming
  • Easy control of speed, dimming or automated operation
  • Compatible with all ACROSENTEC RGB(W) and TUNABLE fixtures
ELECTRICAL of BLUETOOTH Node
OPERATING ENVIRONMENT
  • IP20
  • Working temp : -13 – 113°F / -25 – 45 °C

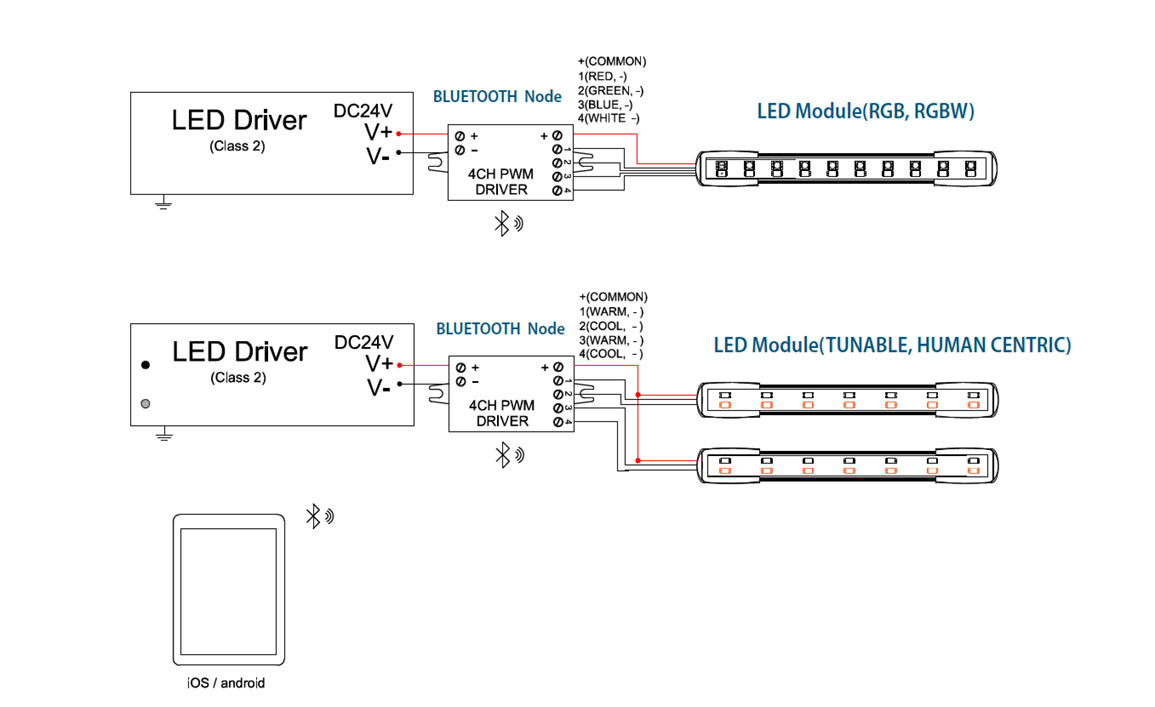

WIRING DIAGRAM

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

DOCUMENTATION
