Project Description

MPB GA

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Very slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with
    UV stabilized opaque or light opaque cover.
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

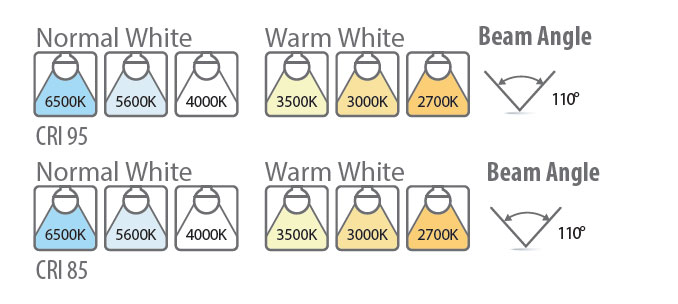

  • Wide range of CCT options (2700K ~ 7000K), Dual white.
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting.
  • Angled beam direction designed for show case or cabinet.
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

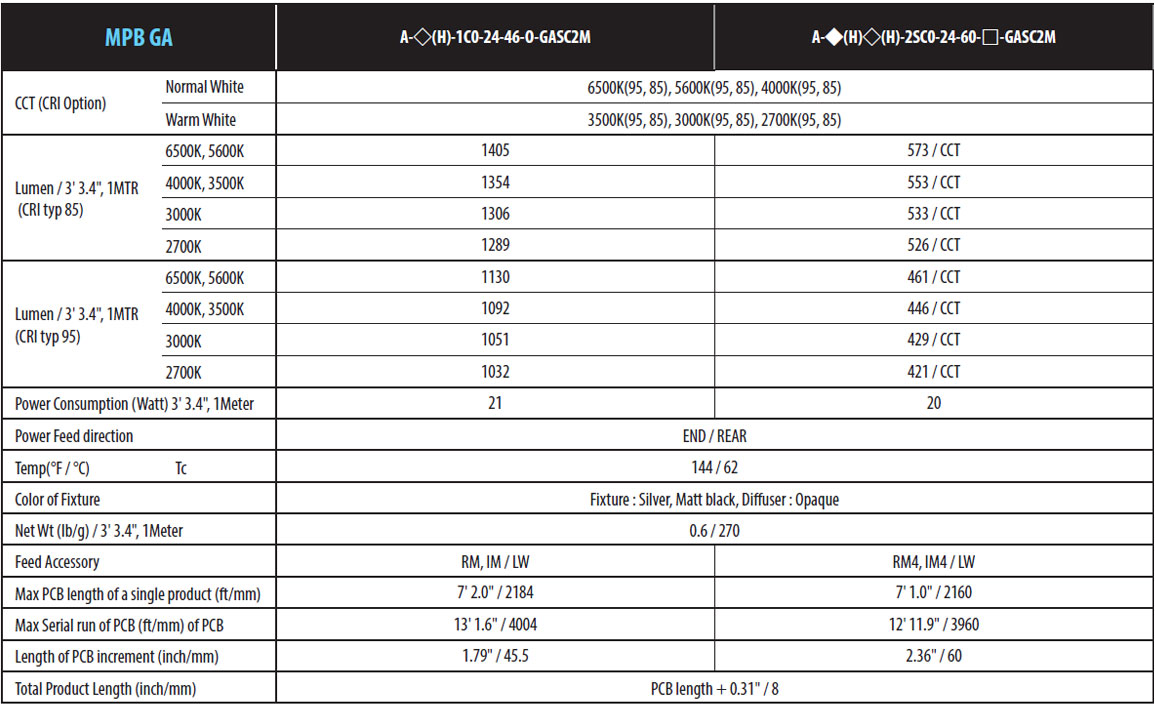

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC

  • 2) CCT

  • 3) Level of CRI ………………………………………. 90+ , Blank : CRI 85, 80+

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …………. Refer to the table

  • 7) Quantity of add-on …………………………. Variable

  • 8) Product model ………………………………… GA : MPB GA

  • 9) Device for feed …………..S : Single end LW, B : Both ends LW, RM, IM,

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque

    • Dimming ……………………………………. PWM, 0-10, DMX

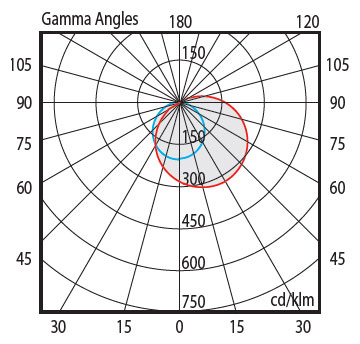

    • Beam Angle ………………………………… 110°
    • Operation Temp(°F/°C) ……………… Ta : -13~122 / -25~50
    • Expected Life Hours …………………… 60000 Hrs
    • Mounting Accessory …………………. Magnet (MG), Tape (DS)

* Data is subject to change without notice for improvment

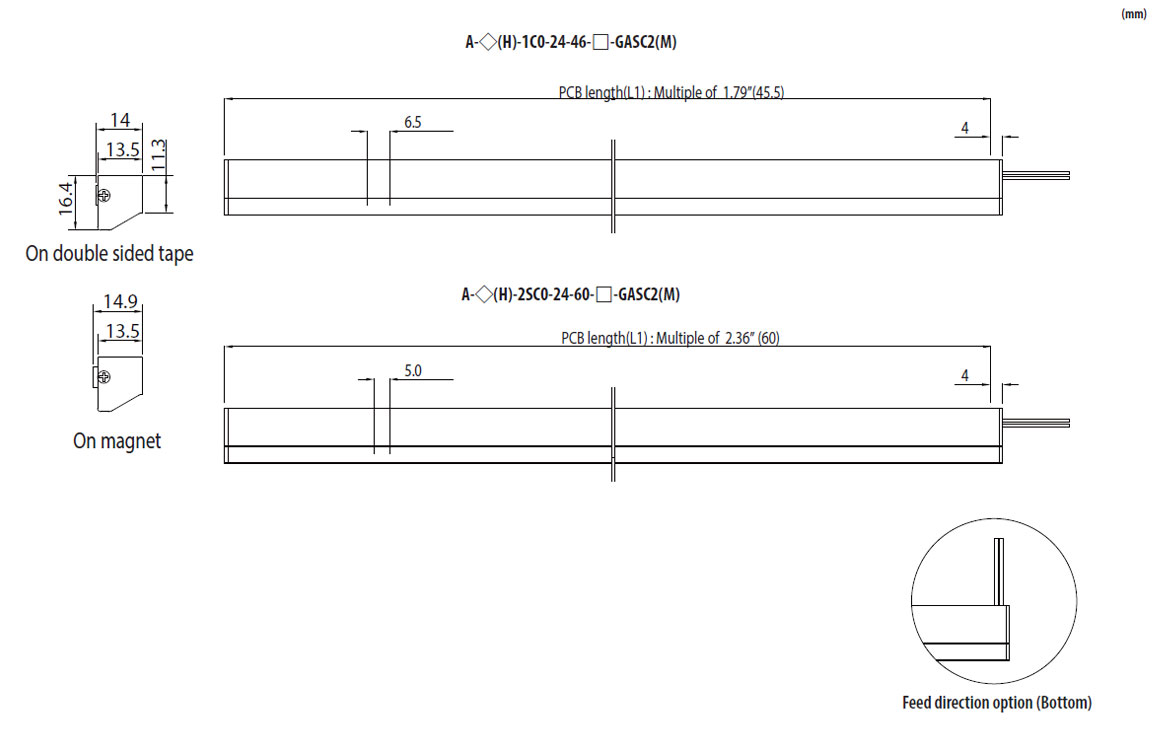

DIMENSTION

* Data is subject to change without notice for improvment

DOCUMENTATION
