MPB F, MPB FR

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Very slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque or clear cover. Wide beam angle option.
  • IP40
  • Maximized evenness of CCT and brightness by professional bin nagement.

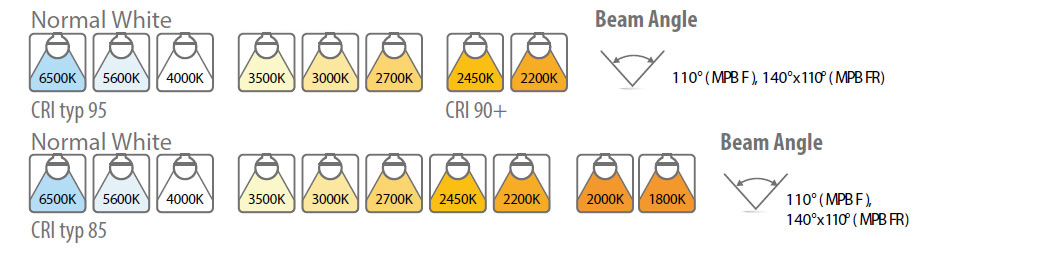

  • Wide range of CCT options (1800K ~ 7000K), Dual white
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

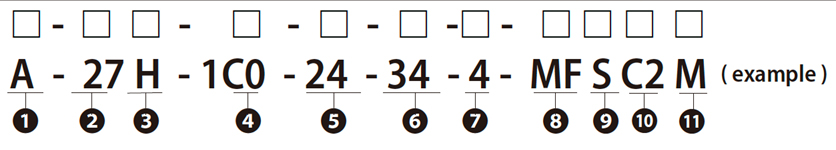

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) NAME ………………………………………………… ACROSENTEC

  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, 90+, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable. Refer to the table
  • 8) Product name ……. MF : MPB F, MFR : MPB FR
  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……….. M : Opaque, MS : Light opaque, Blank : Clear
    Dimming ………………………………………….. PWM, DALI, 0-10, DMX
    Beam Angle
    ……………………………………… 110°(MF), 140°(MFR)
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (S, SJ), Magnet (MG), Tape (DS)

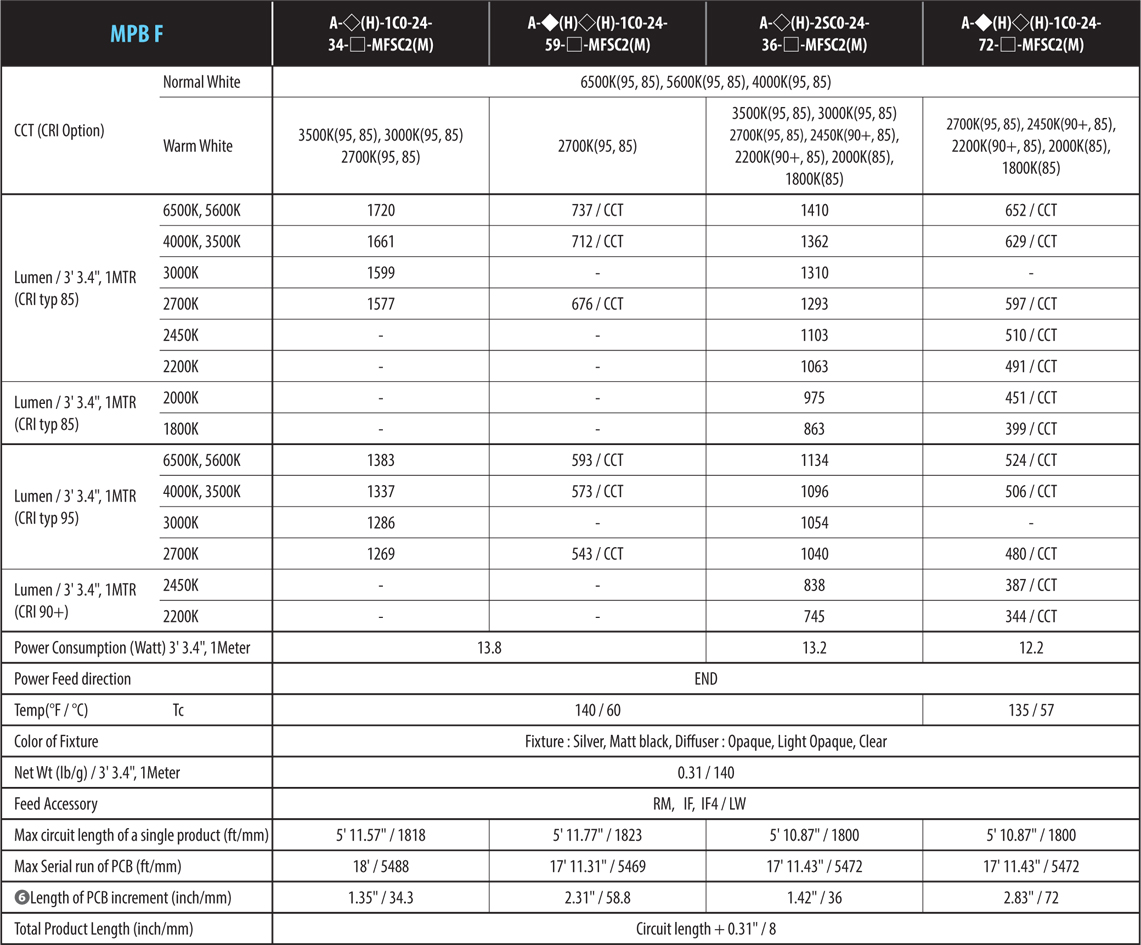

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

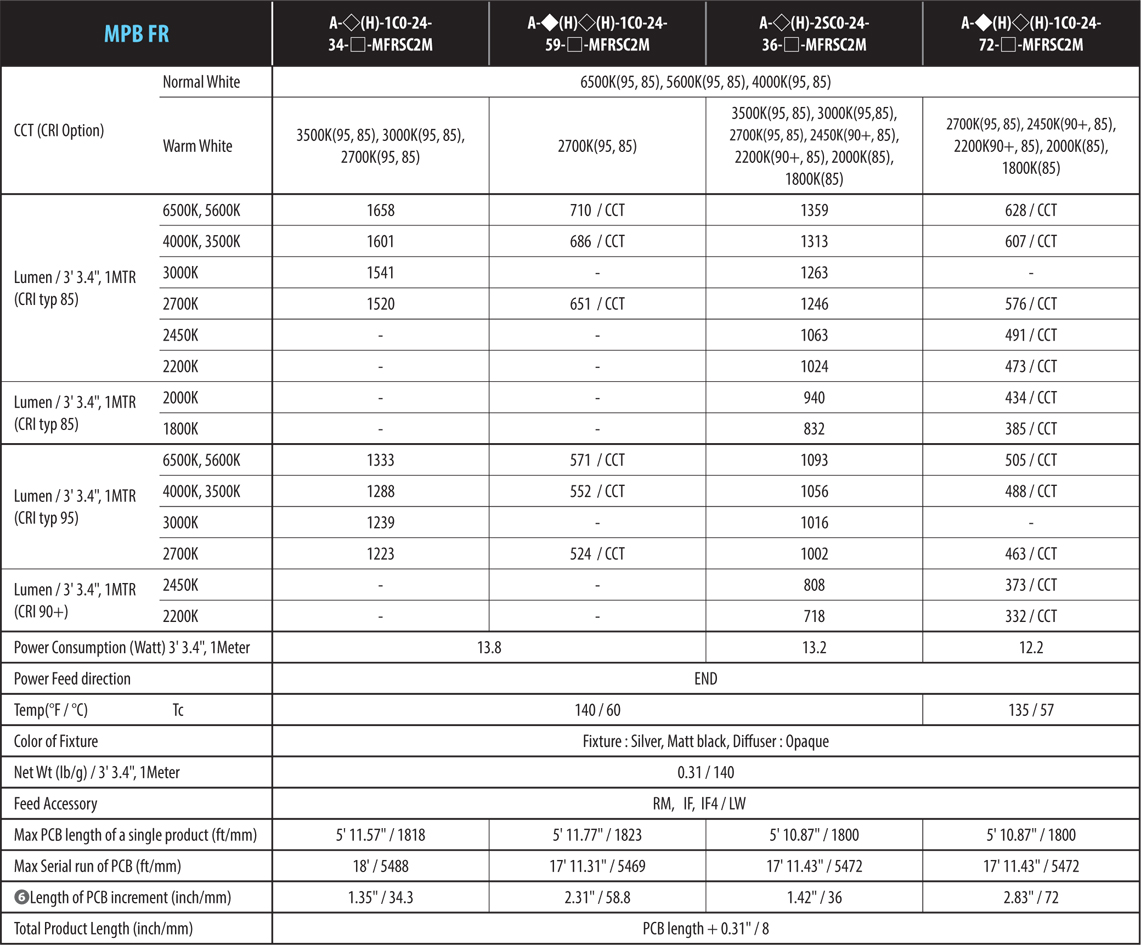

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

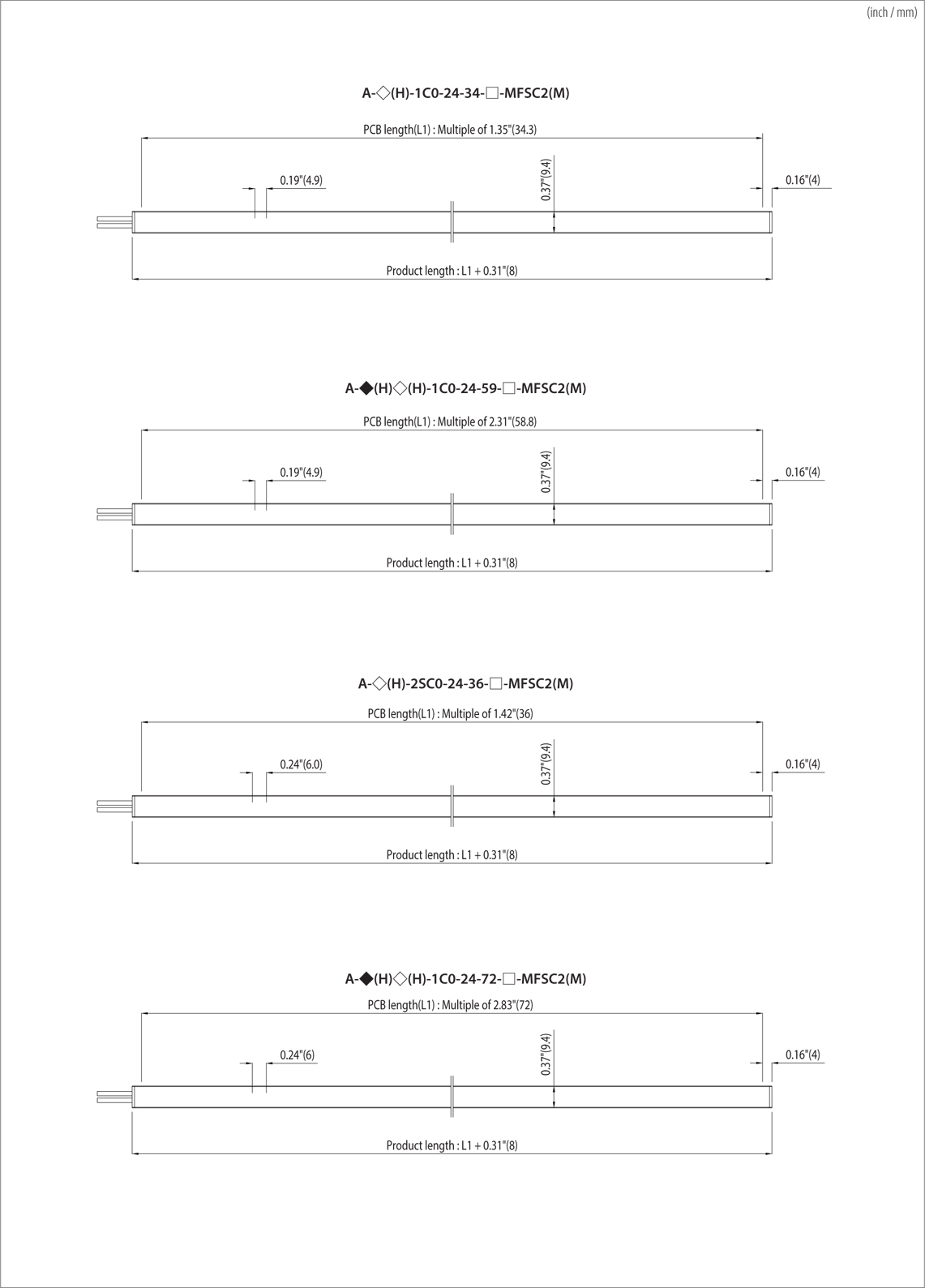

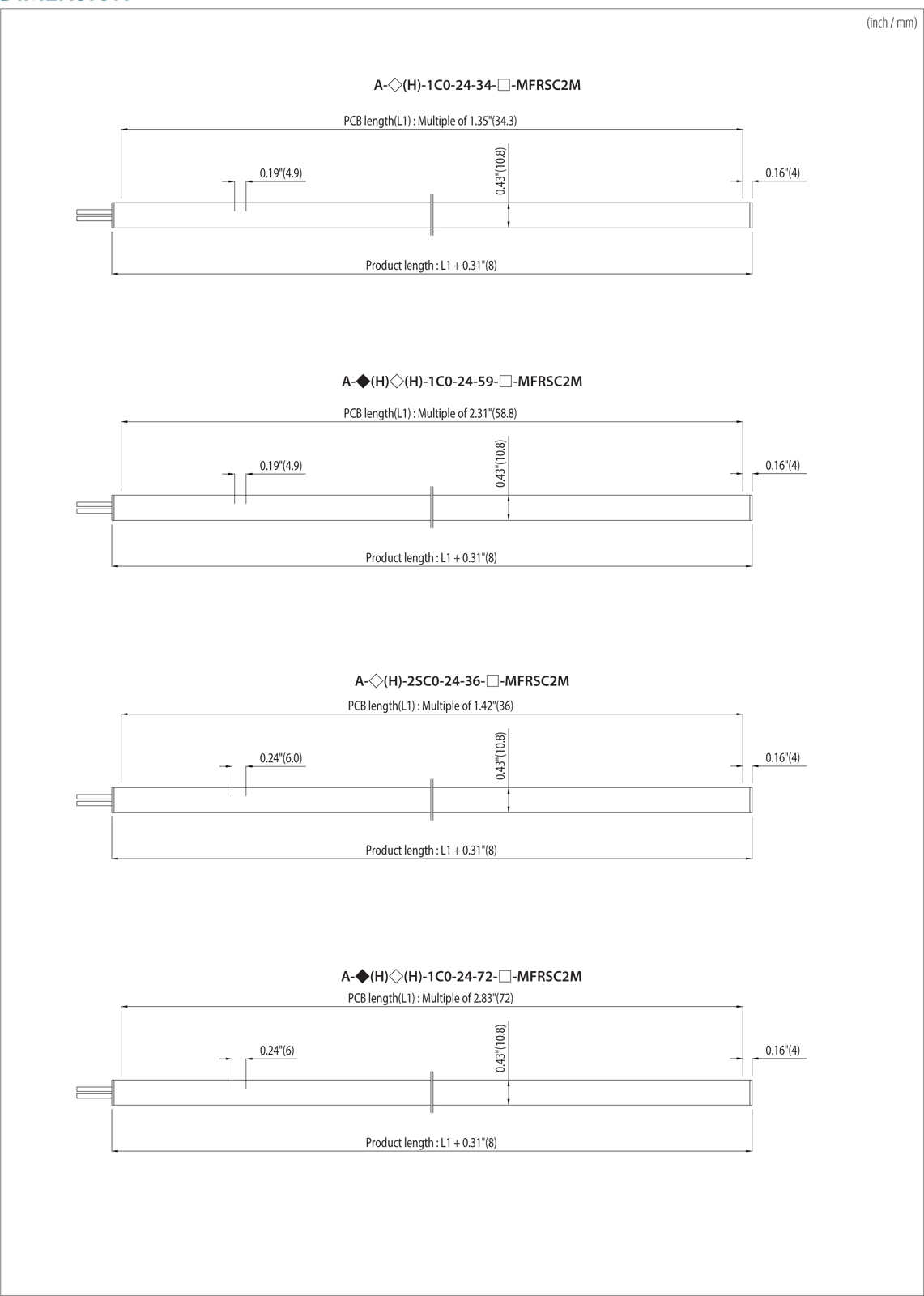

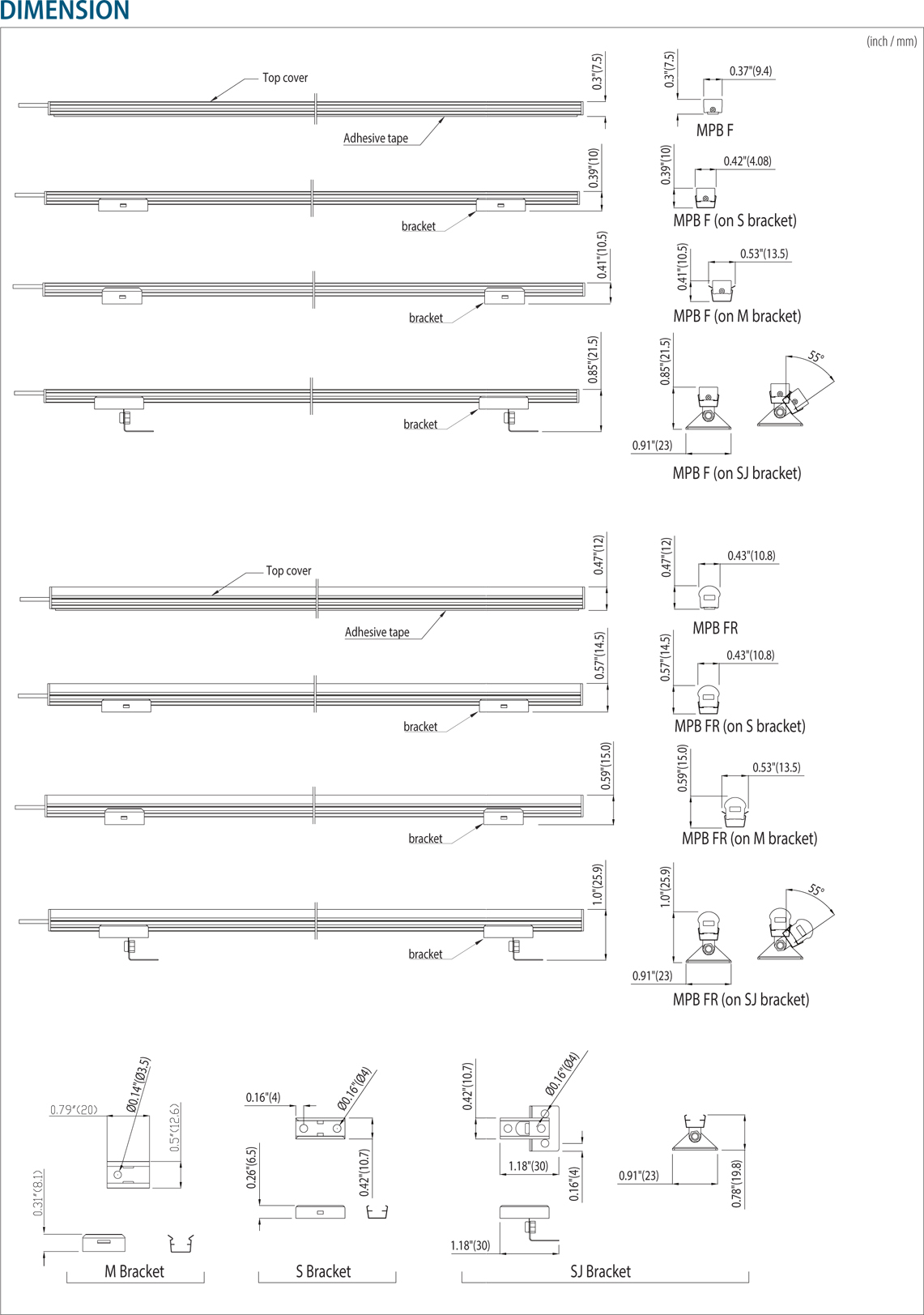

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
