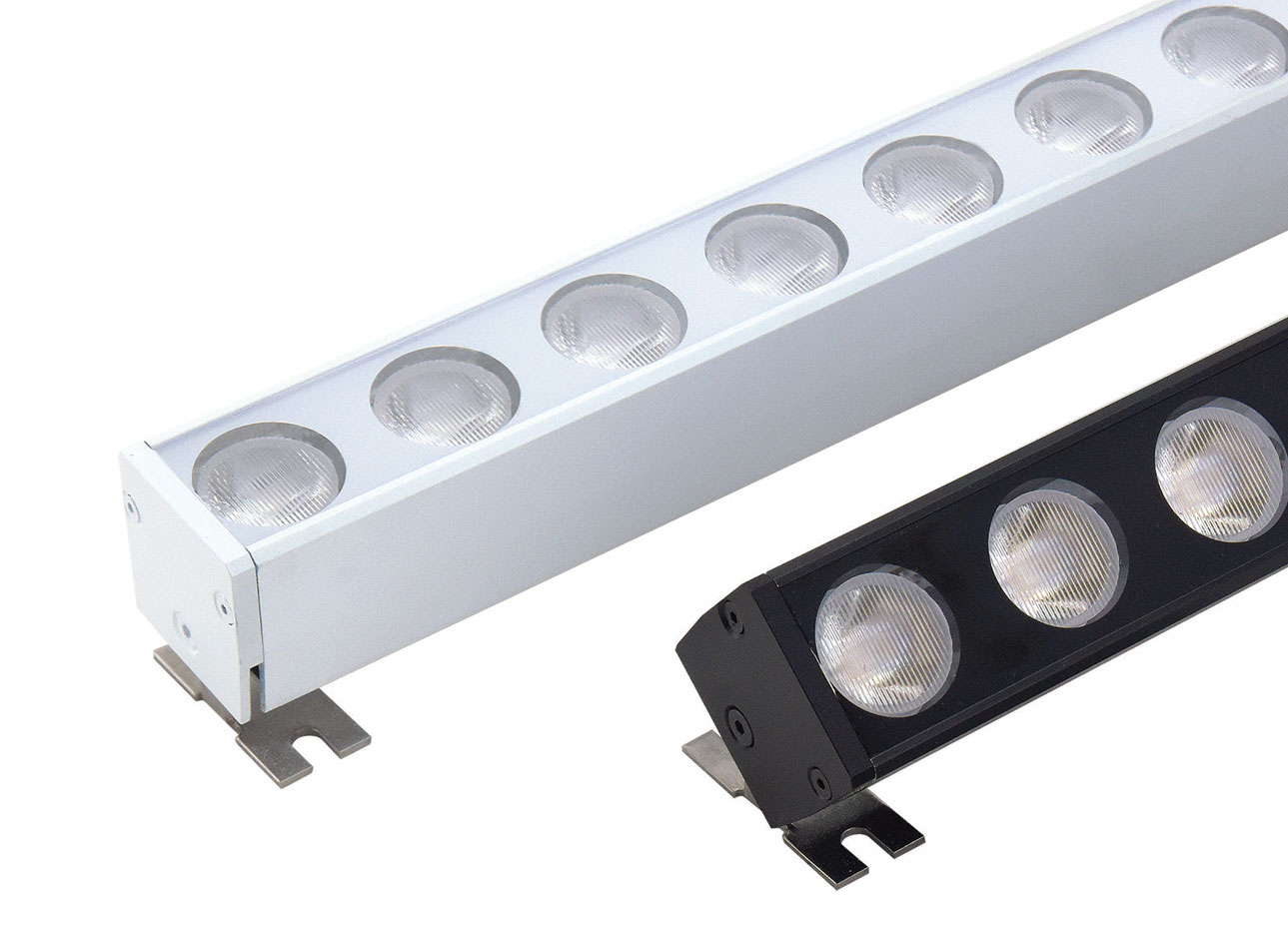

QPB A

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Suitable for wall wash for indoor
  • Unique optical performance with high evenness of light spread of 12°, 15°, 22°, 30°, 55°, 15×45° and more. Unique180° swiveling brackets
  • UV filtering option, Louver options for glare cut.
  • Dust and water protection with UV stabilized clear cover
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

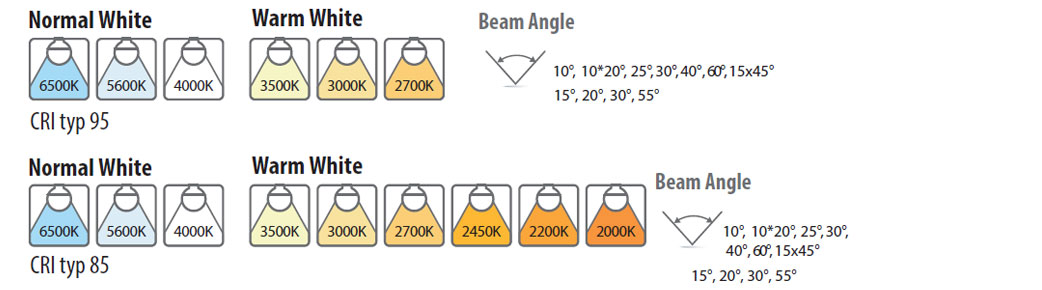

  • Wide range of CCT options(2000K ~ 7000K)
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt and more.

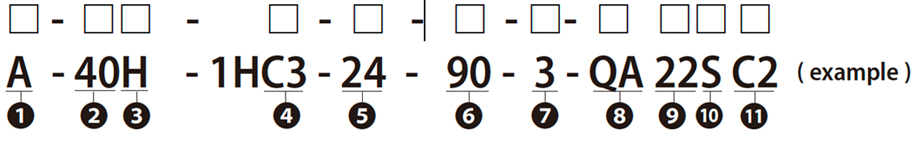

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

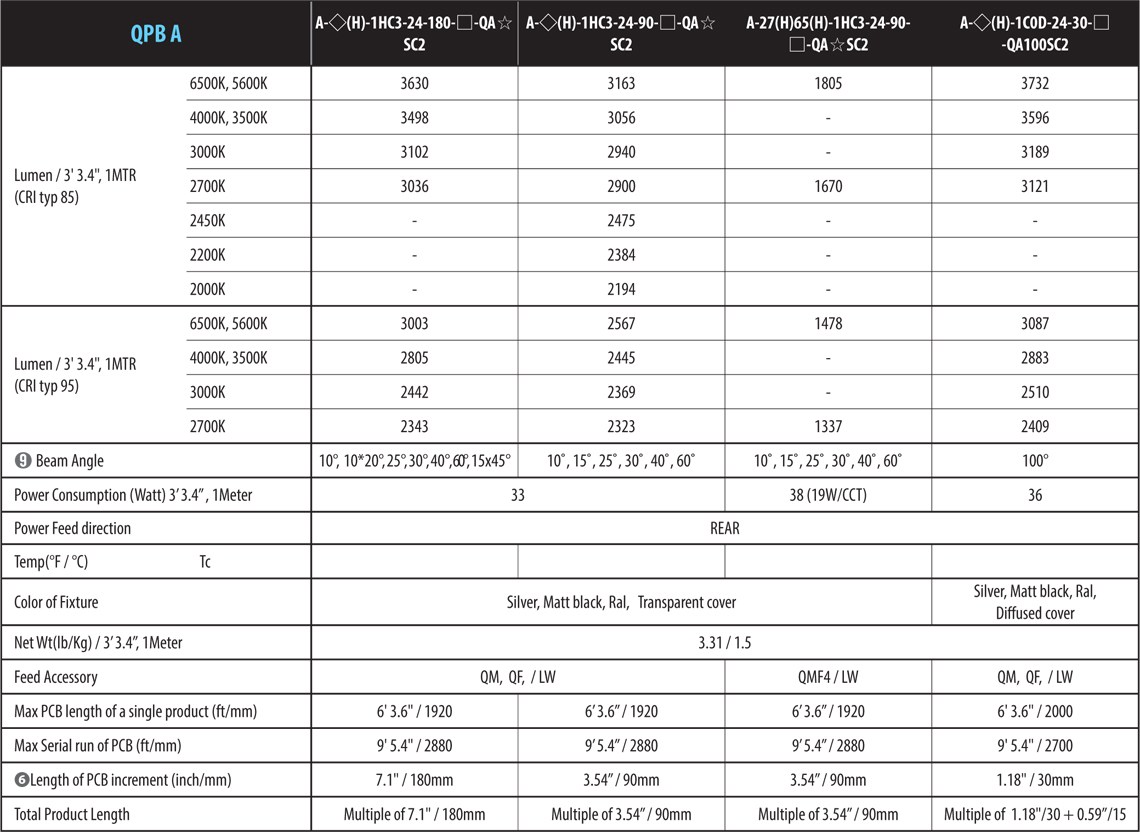

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… QPB A

  • 8) Beam Angle ………………………………… Refer to the table

  • 10) Feed receptacle ………….. S : Single end LW, B : Both ends LW, QM, QF, QMF4

  • 11) IP Rate ………………………………………………. C2 : IP40

  • Dimming ………………………………………….. PWM, 0-10, DMX
    Operation Temp(°F/°C) …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. QP

* Data is subject to change without notice for improvement

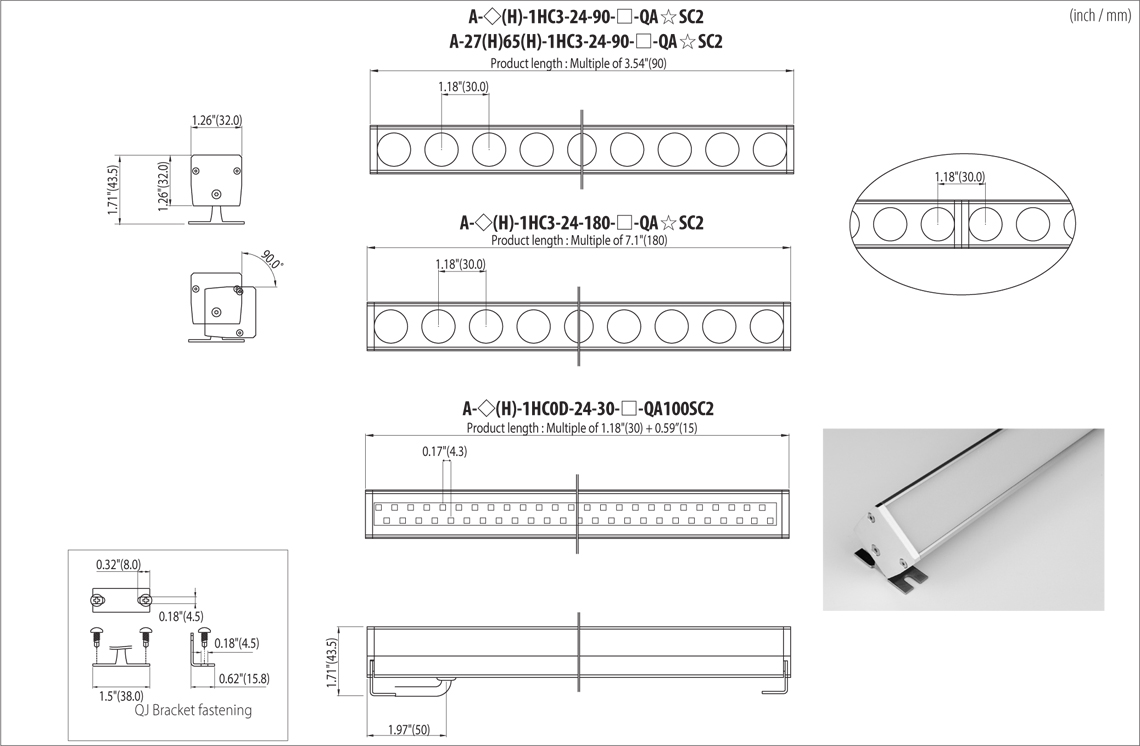

DIMENSTION

* Data is subject to change without notice for improvement
