Project Description

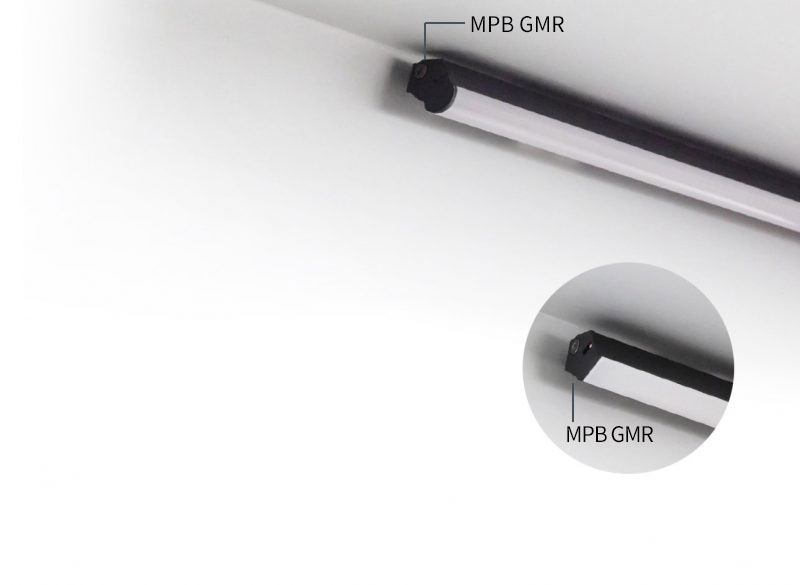

MPB GMT, GMR

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Very slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque cover
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

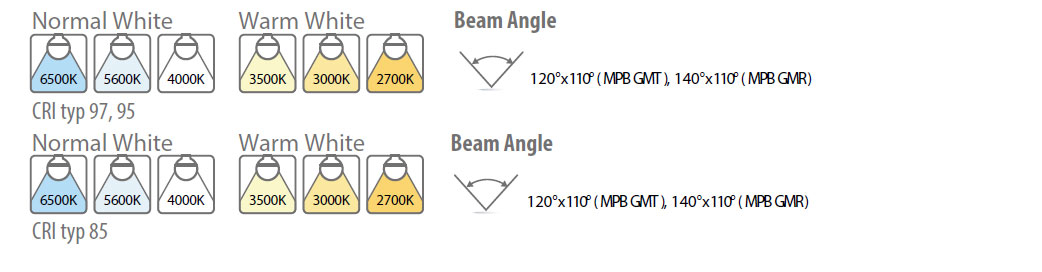

  • Wide range of CCT options(2700K ~ 7000K), Dual white
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting
  • Angled beam direction designed for show case
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

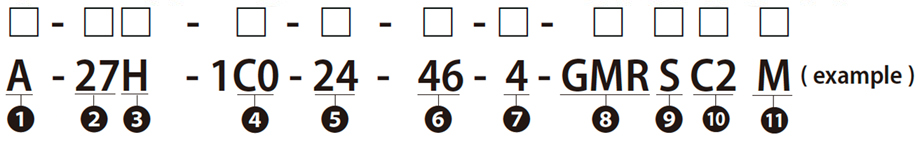

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. FH : CRI typ 97, H : CRI typ 95, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… GMT : MPB GMT, GMR : MPB GMR

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque
    Dimming
    ………………………………………….. PWM, 0-10, DMX
    Beam Angle
    …………………………………….. 120°(GMT), 140°(GMR)
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (S, SJ), Magnet (MG), Tape (DS)

Data is subject to change without notice for improvment

Data is subject to change without notice for improvment

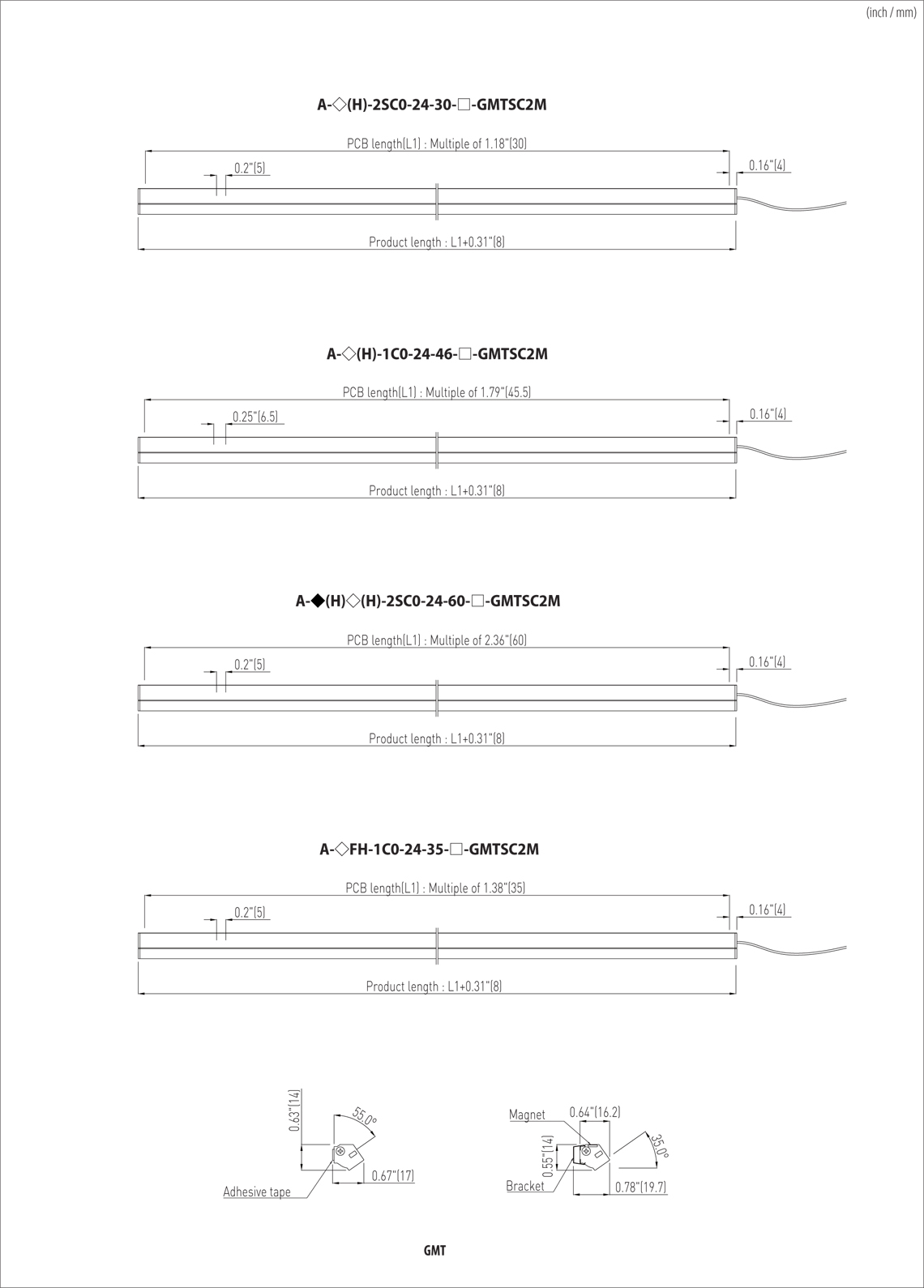

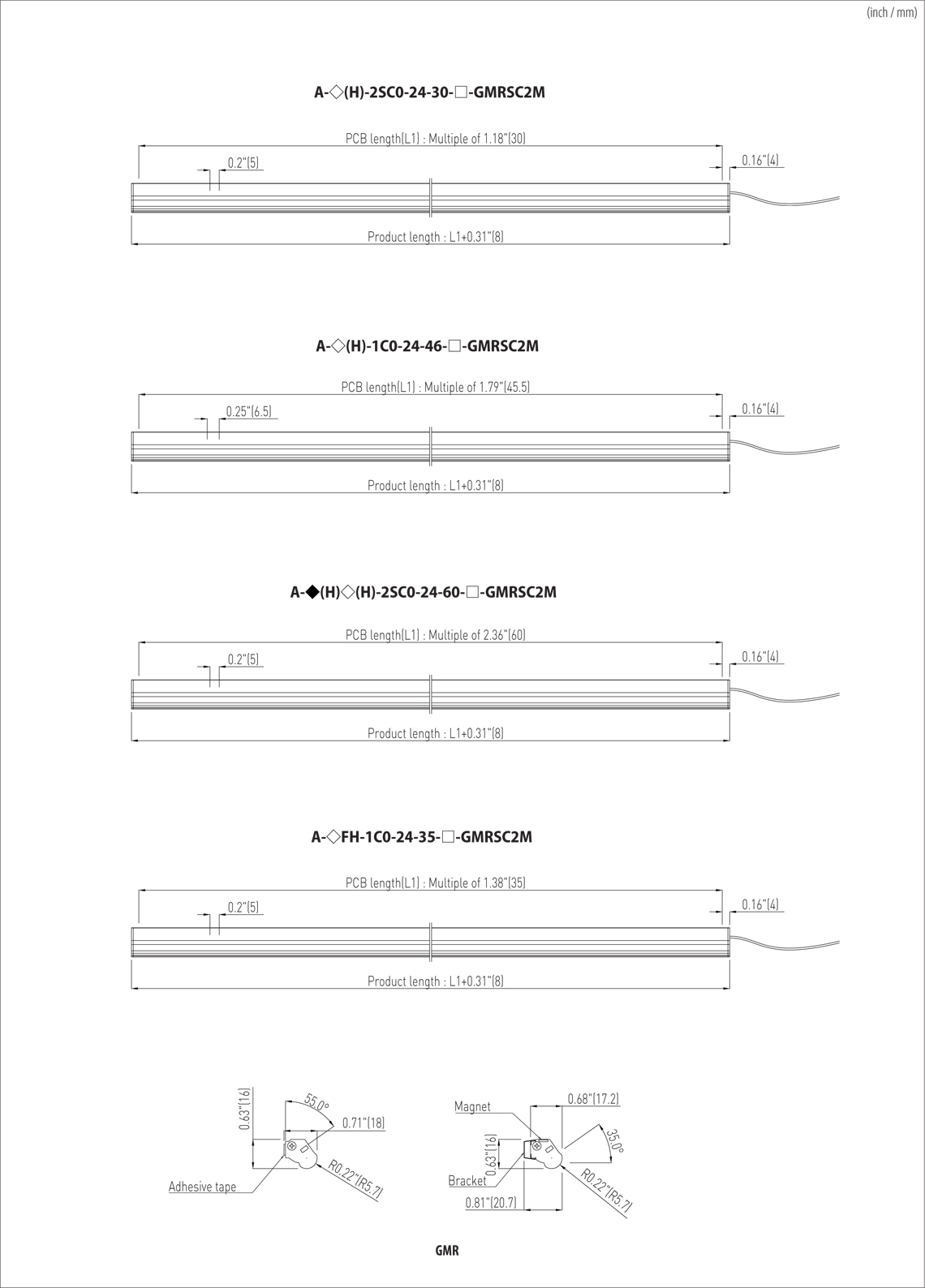

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
