Project Description

MPB

FEATURES

  • Constant current circuit for steady lumen output along the strip.
  • Very slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque or clear cover.
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

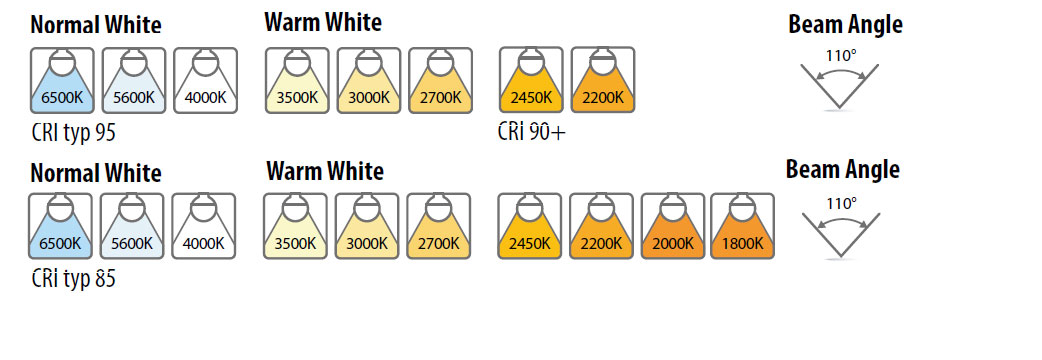

  • Wide range of CCT options (1800K ~ 7000K), dual white, color(RGB)
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum.
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

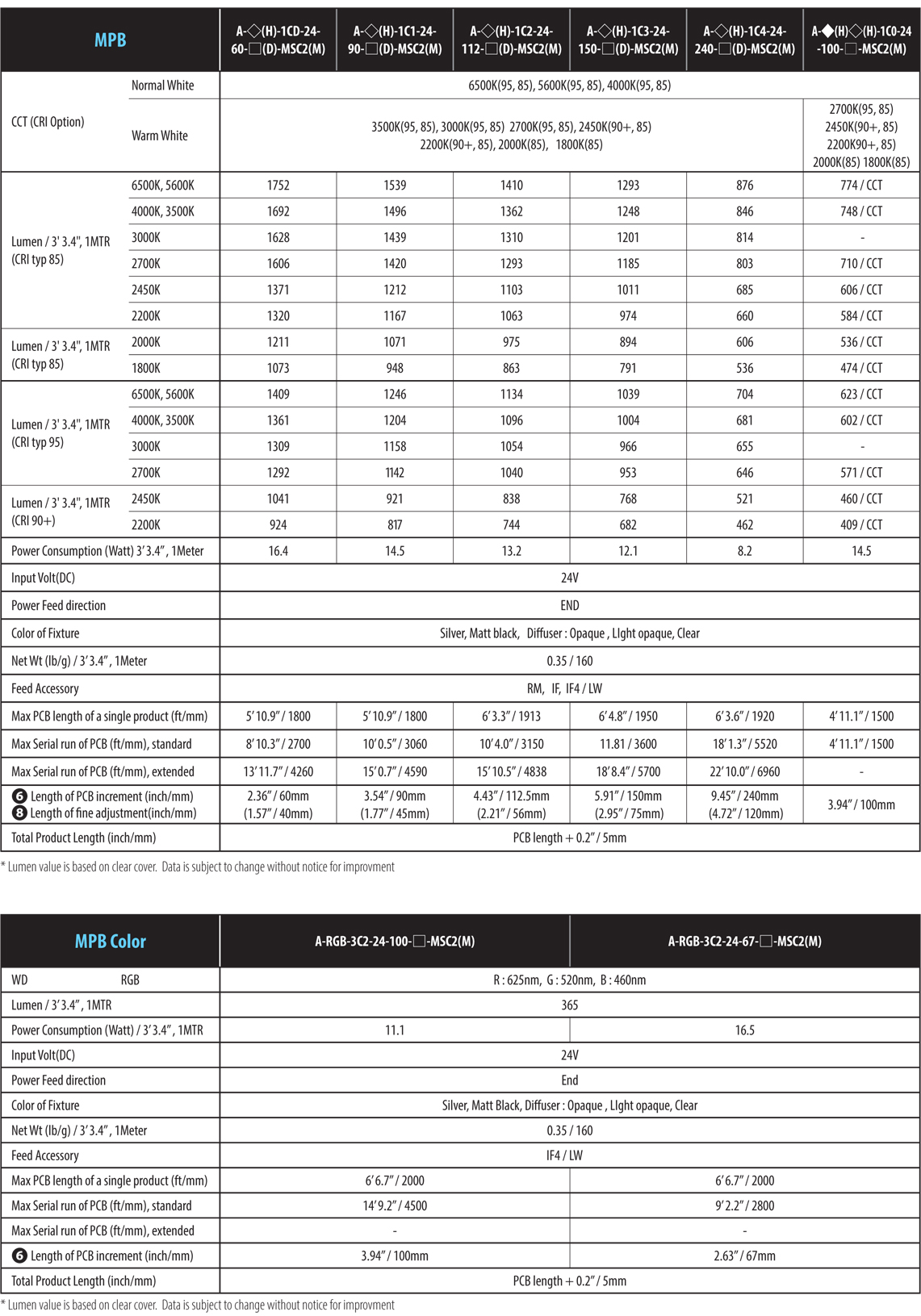

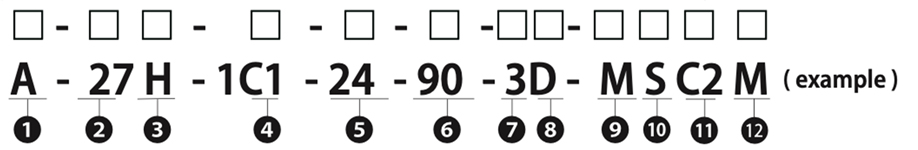

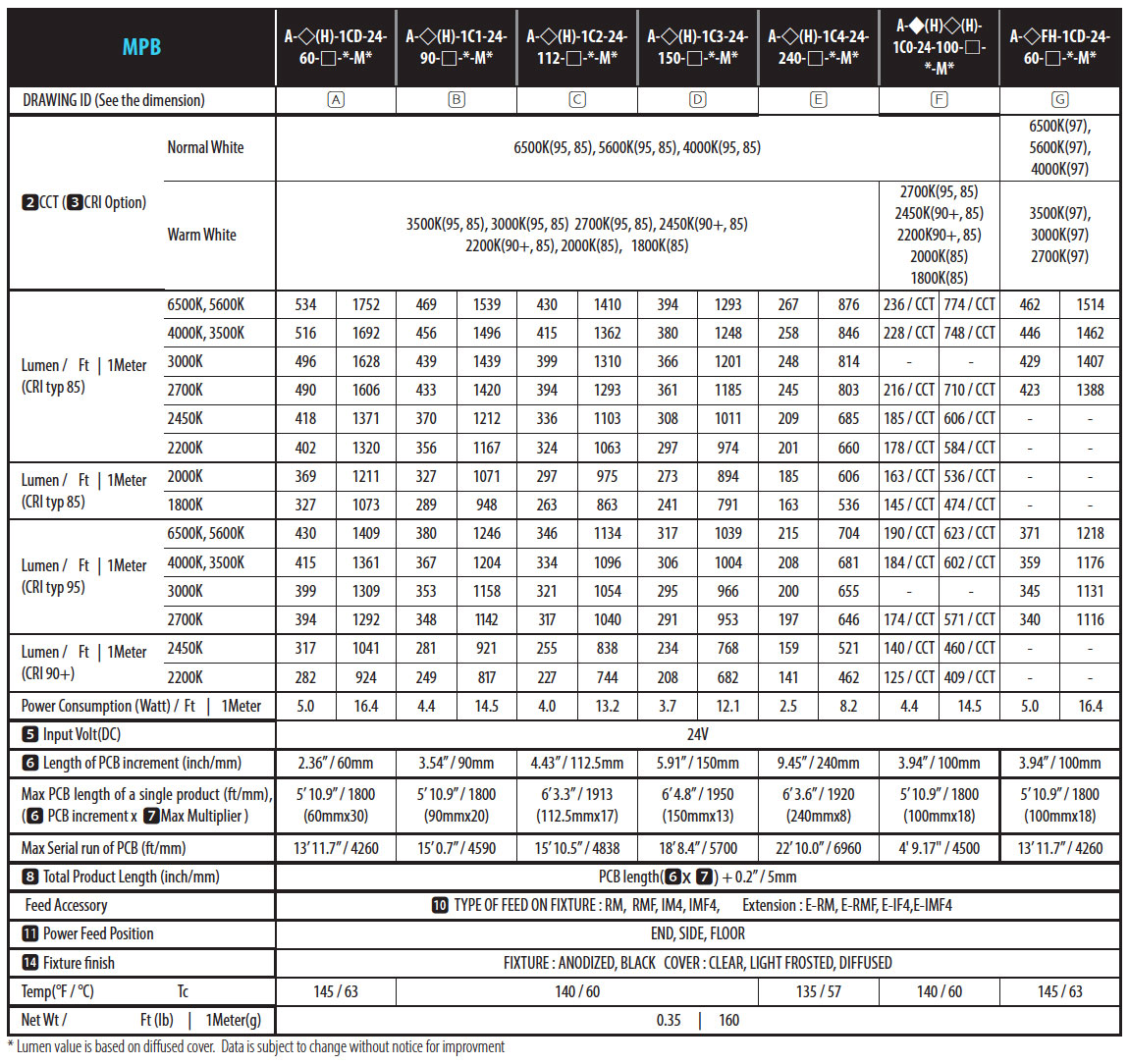

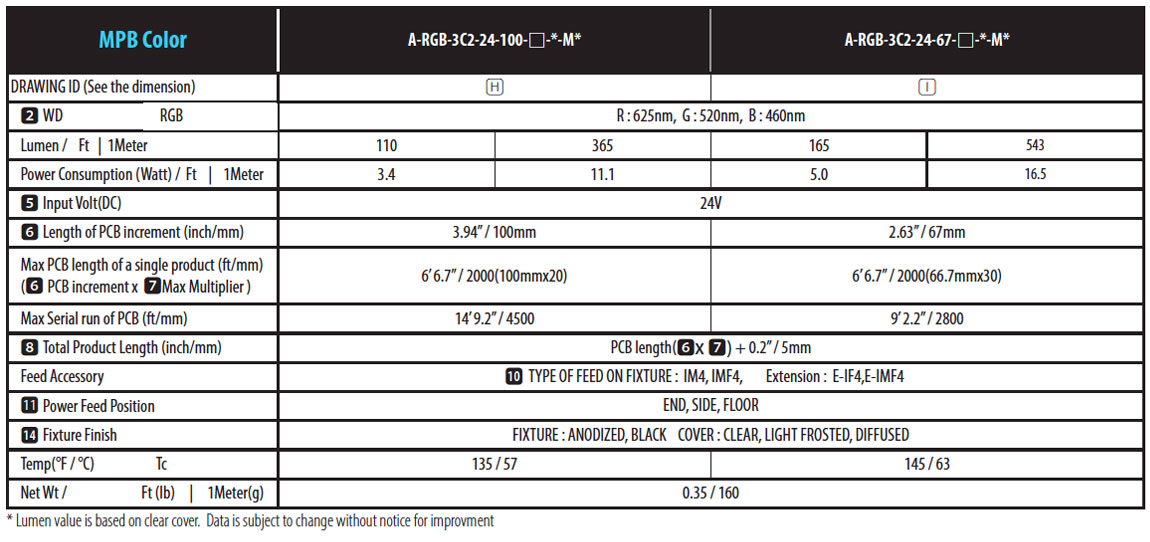

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, 90+, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) …………. Refer to the table
  • 7) Quantity of the PCB increment …………………………. Variable
  • 8) Length of fine PCB adjustment …………… Refer to the table
  • 9) Product model ………………………………… MPB

  • 10) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4
  • 11) IP Rate ………………………………………………. C2 : IP40

  • 12)
    Diffuser type
    ……………………………………. M : Opaque, MS : Light opaque, Blank : Clear
    Dimming
    ………………………………………….. PWM, 0-10, DMX
    Beam Angle
    …………………………………….. 120°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (S, SJ), Magnet (MG), Tape (DS)

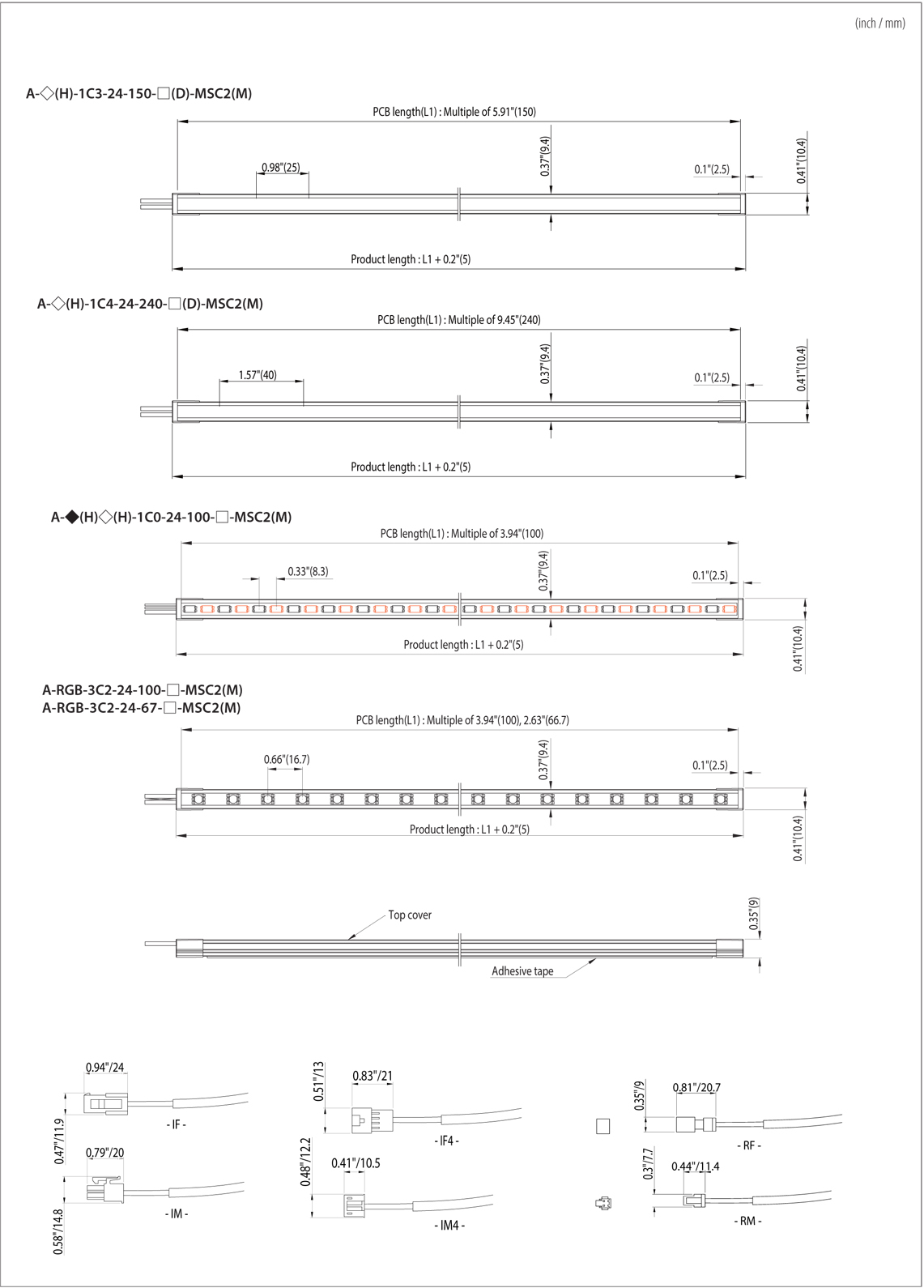

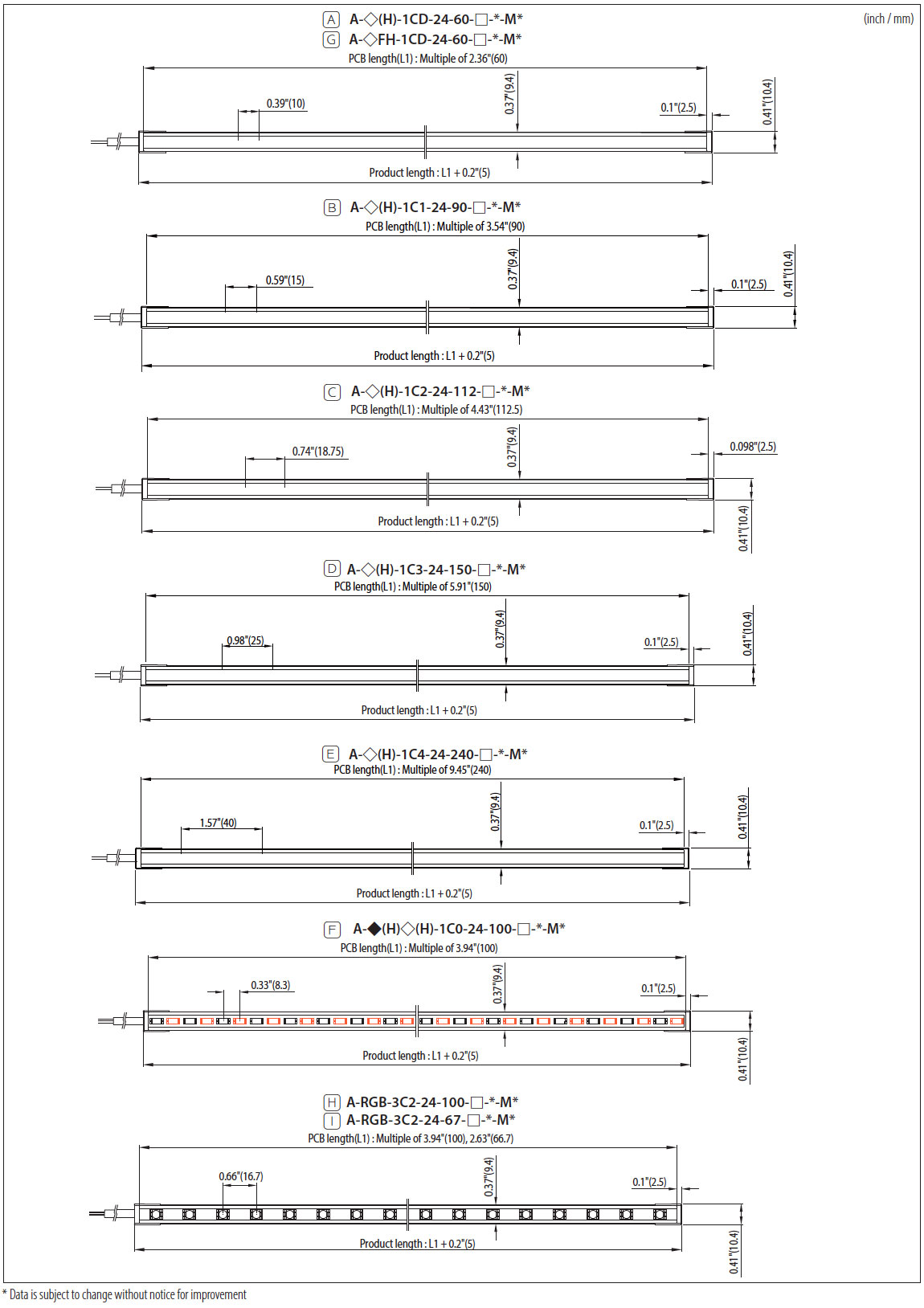

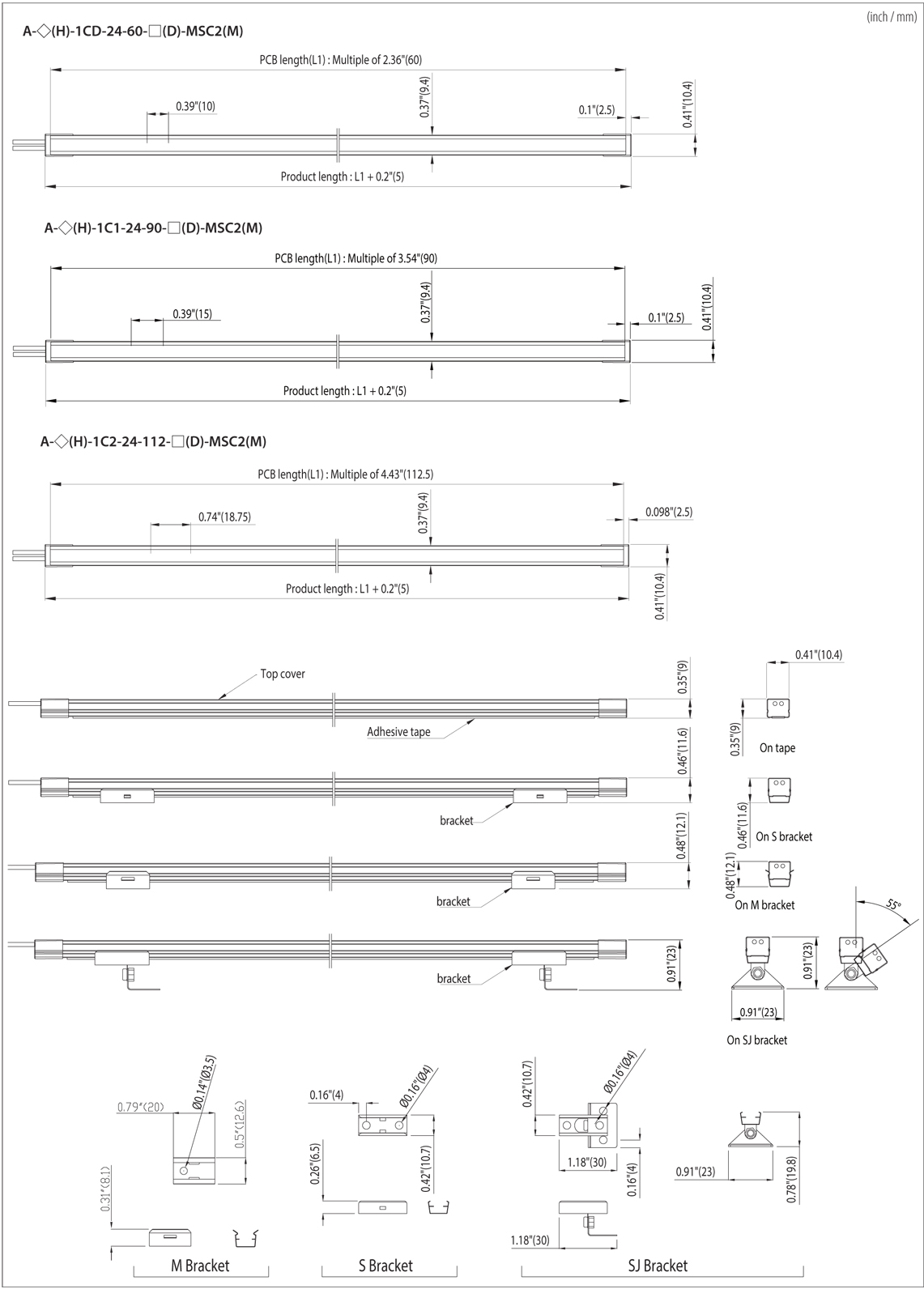

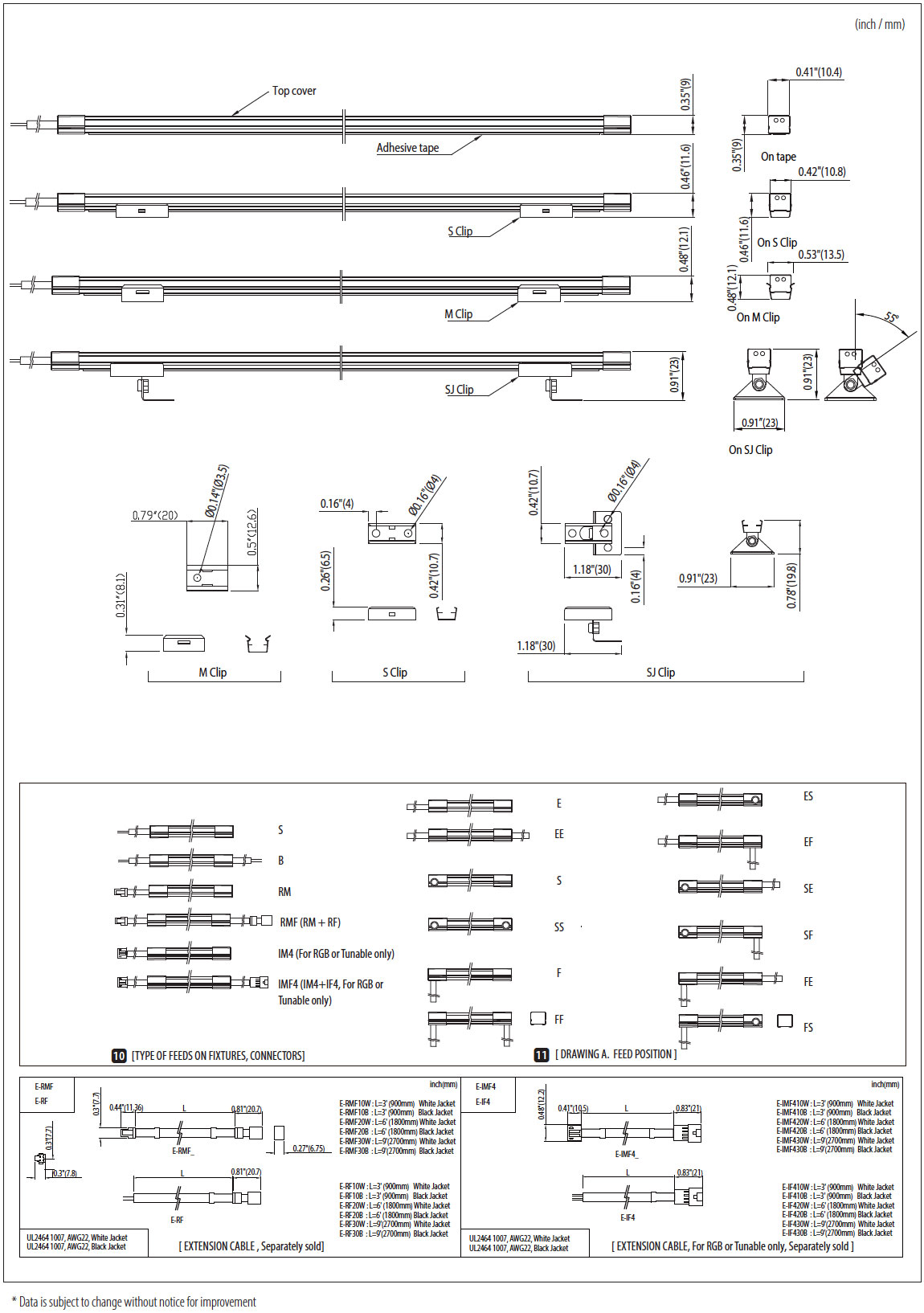

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

DOCUMENTATION
