NPB C5 MiCRO

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Very slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque or clear cover.
  • IP66
  • Maximized evenness of CCT and brightness by professiona bin management.

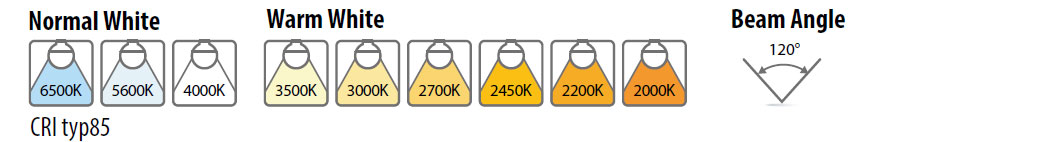

  • Wide range of CCT options(2000K ~ 7000K), color(RGB)
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt and more.

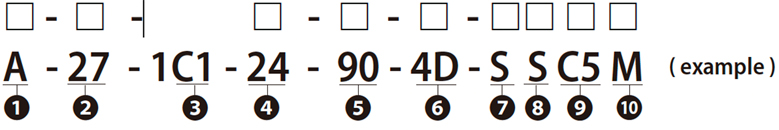

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 4) Input VOLT(DC) ……………… 24V

  • 5) Length of PCB incre.(inch/mm) …….. Refer to the table
  • 6) Quantity of the PCB increment …….. Variable
  • 7) Product model ………………………………… S : NPB C5 MiCRO

  • 8) Feed receptacle ………….. S : Single end LW, B : Both ends LW, WF, WMF, WF4, WMF4

  • 9) IP Rate ………………………………………………. C5 : IP66

  • 10)
    DDiffuser type
    ……………………………………. M : Opaque, MS : Light opaque, Blank : Clear
    Dimming
    ………………………………………….. PWM, 0-10, DMX
    Beam Angle
    …………………………………….. 120°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 50000 Hrs
    Mounting Accessory
    ………………………. Bracket (S, SJ), Tape (DS)

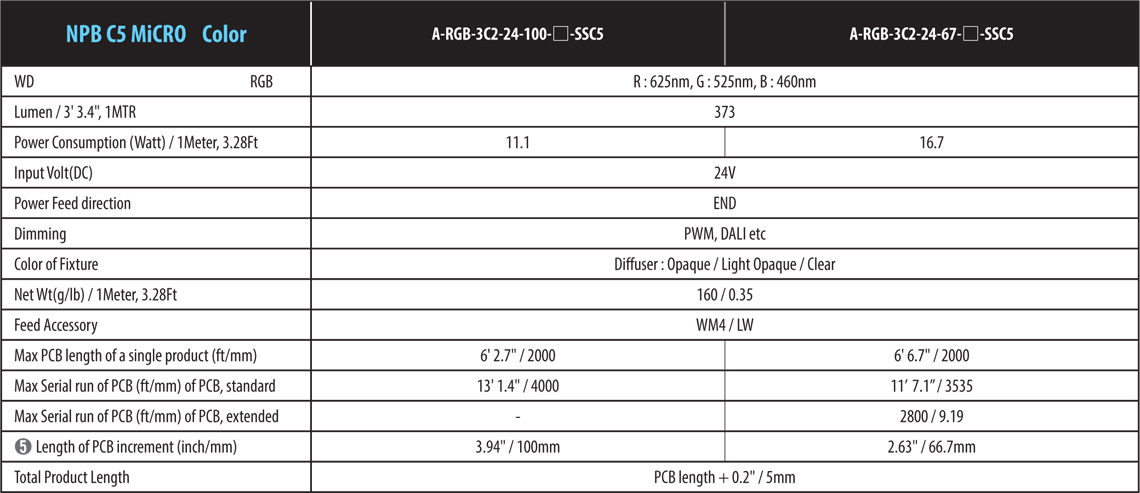

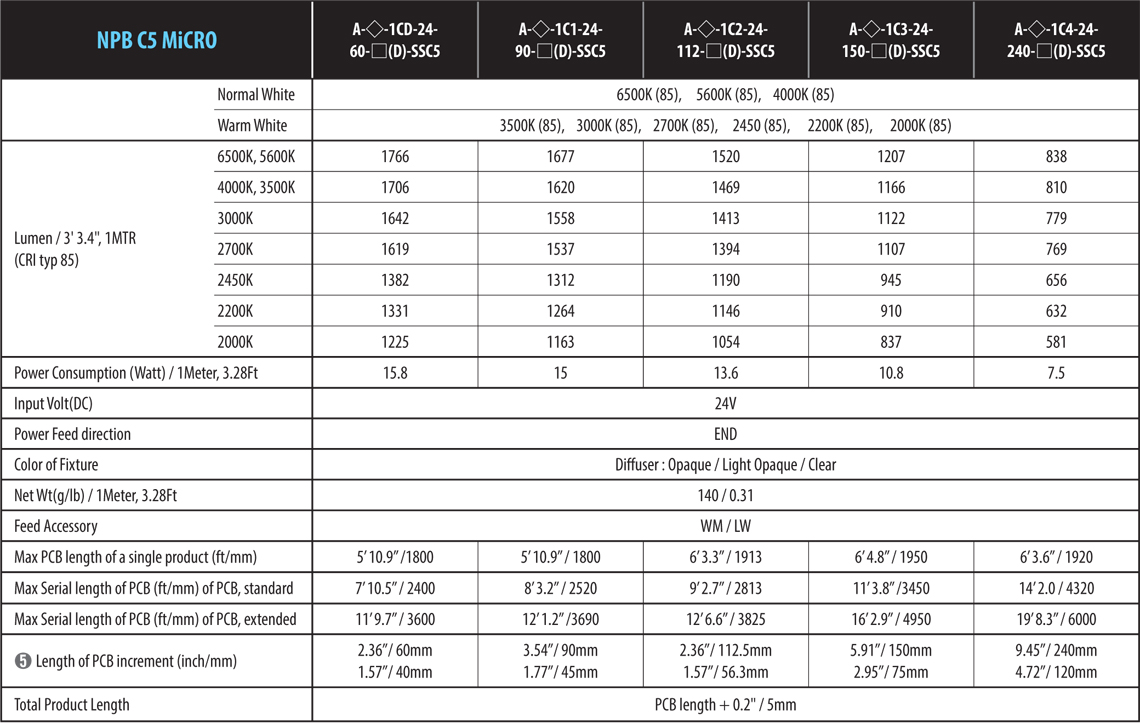

* Lumen value is based on clear cover. Data is subject to change without notice for improvement

* Lumen value is based on clear cover. Data is subject to change without notice for improvement

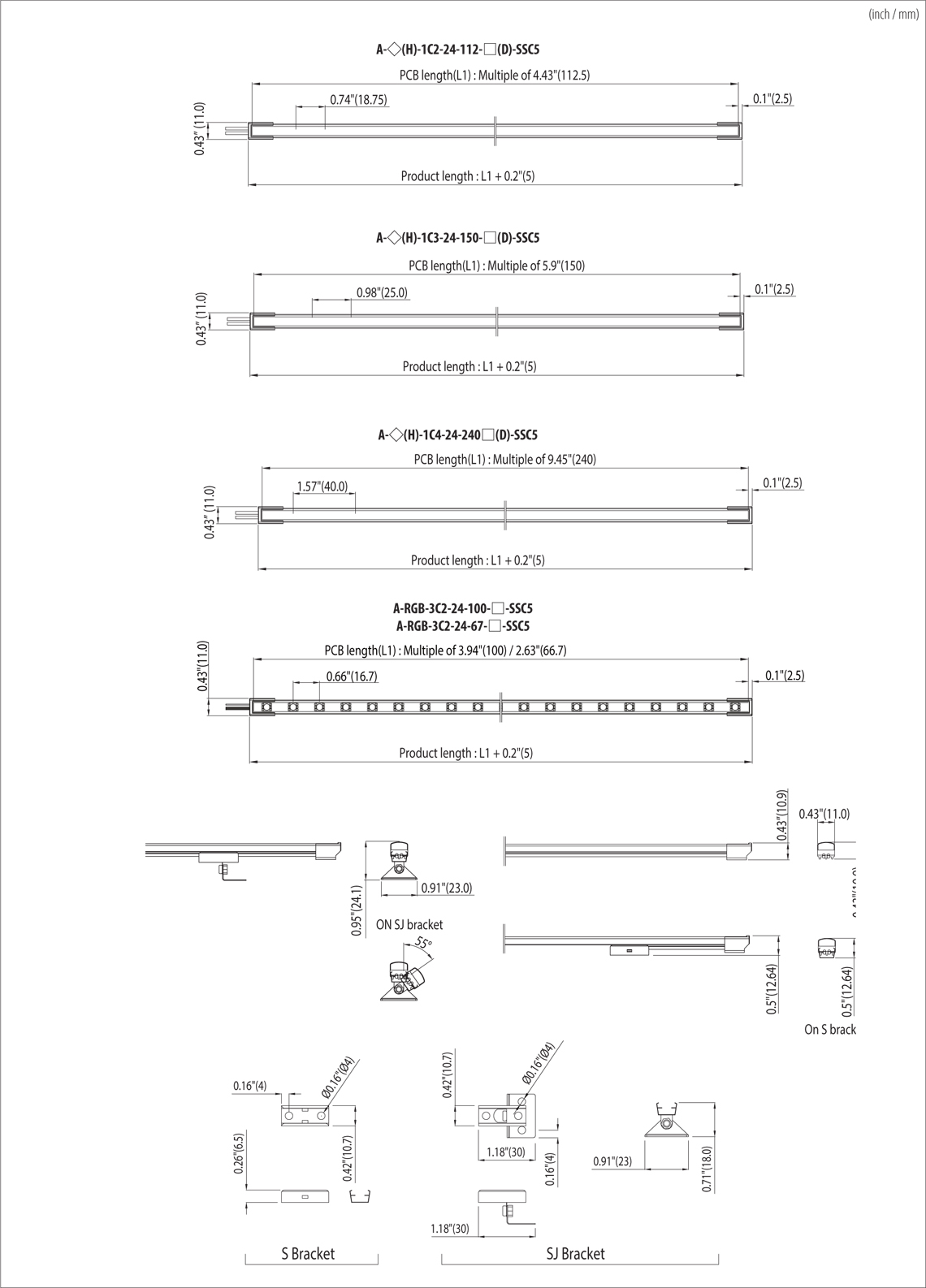

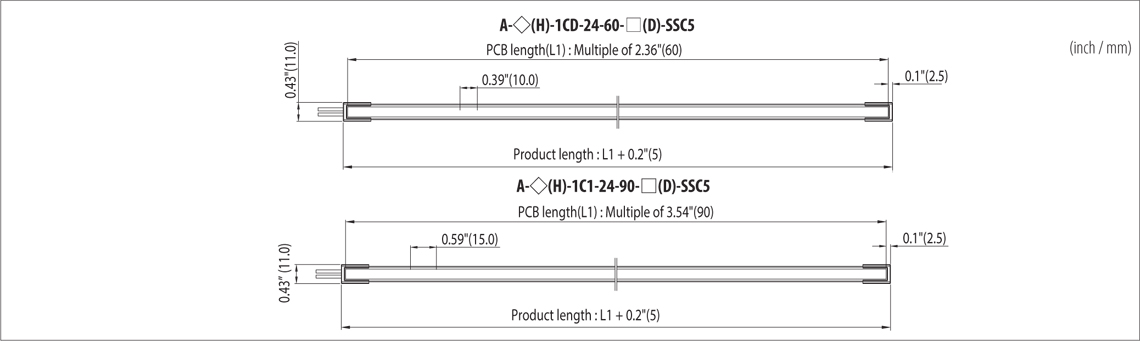

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
