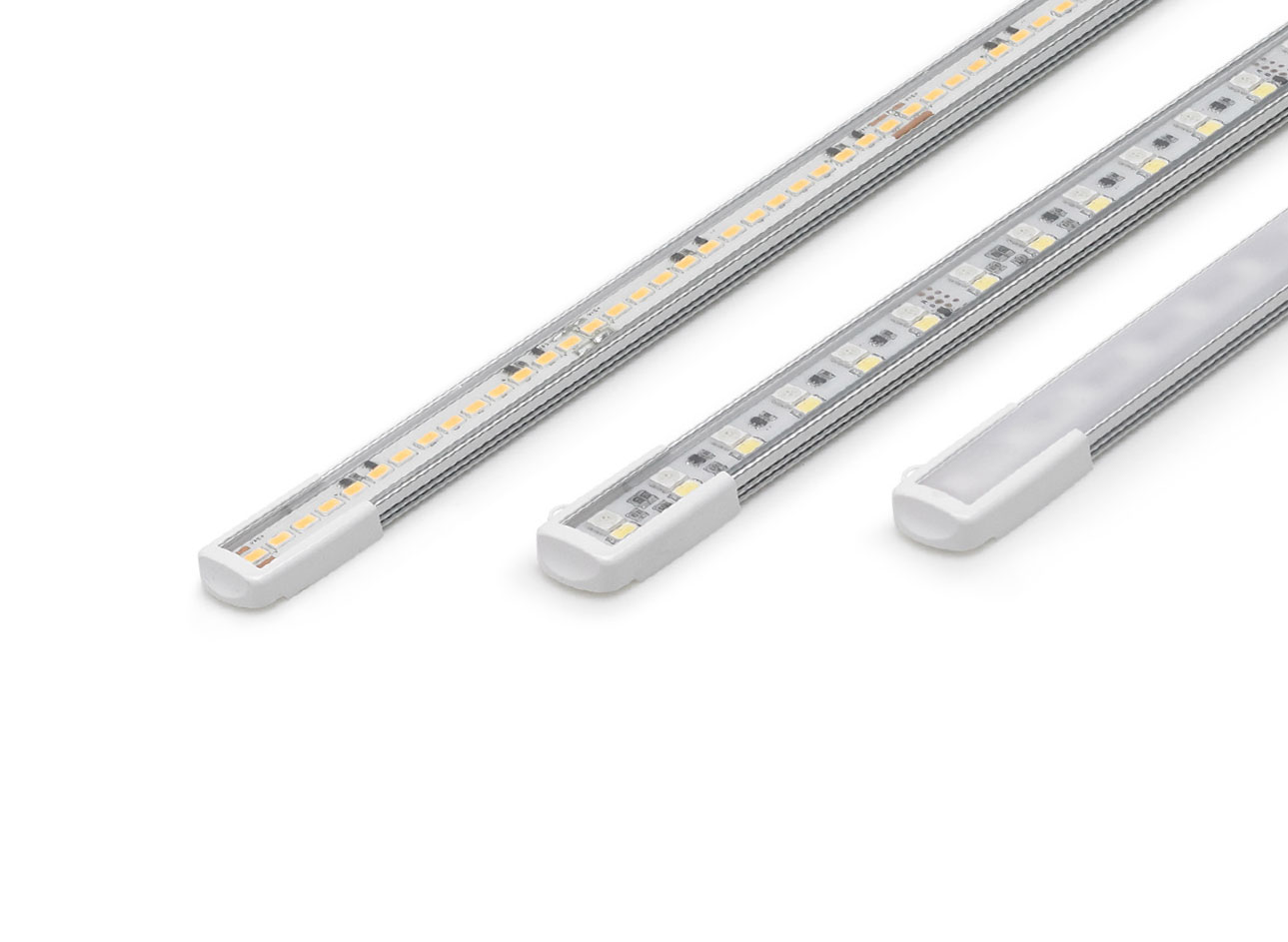

MPB NEO

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Slim and low profiles for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque or light opaque cover
  • IP40
  • Maximized evenness of CCT and brightness by professional bin management.

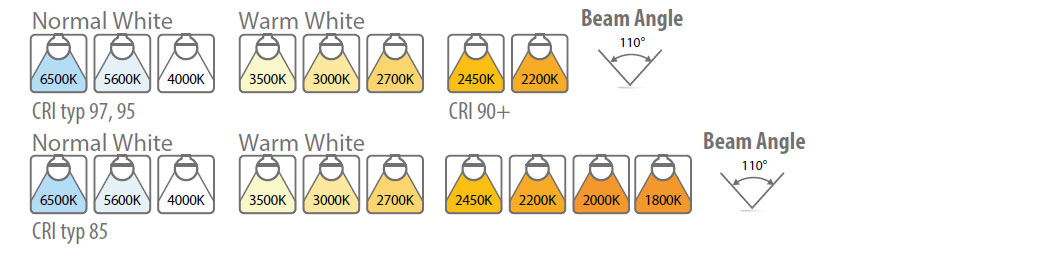

  • Wide range of CCT options(1800K ~ 7000K), Dual white, Color(RGB, RGBW)
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting
  • Bespoke option for CCT, CRI, Watt, Wiring and more.

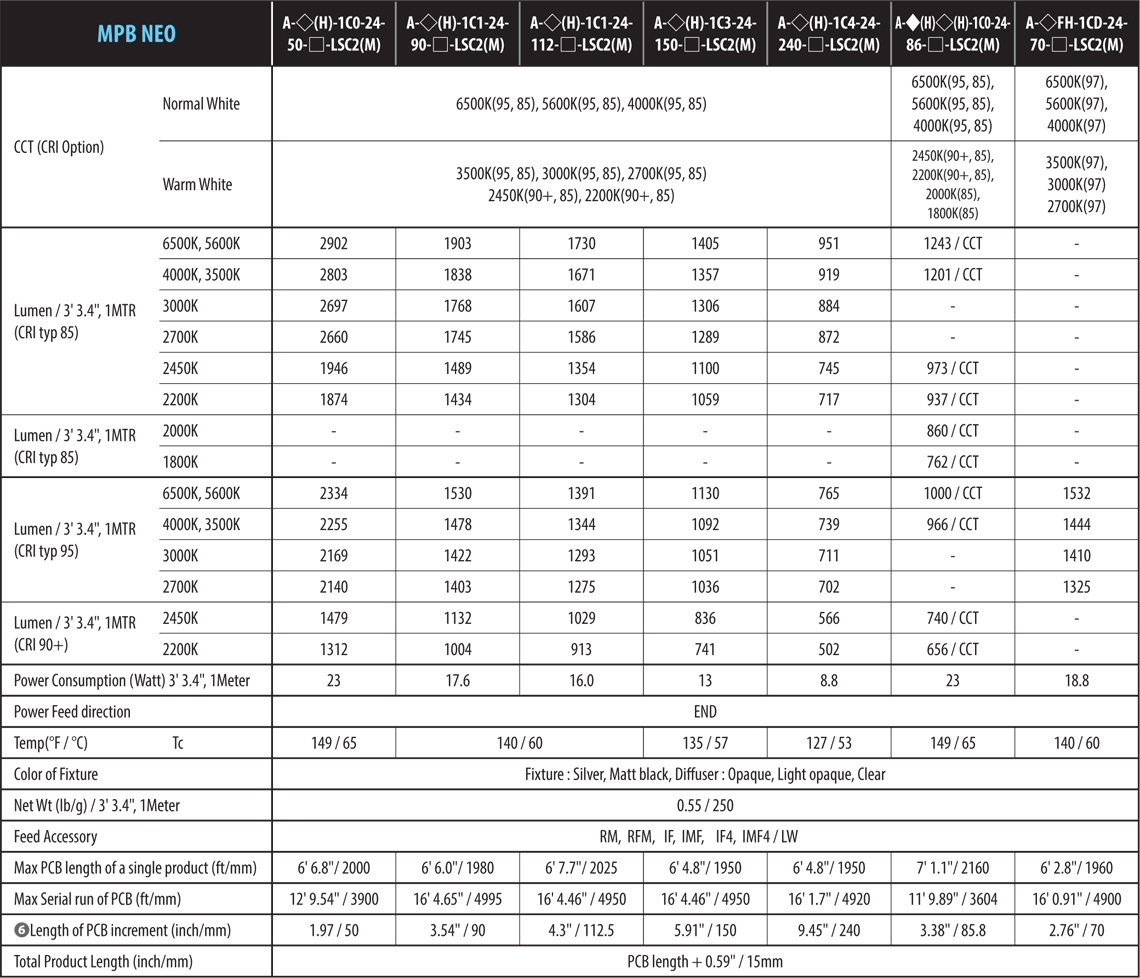

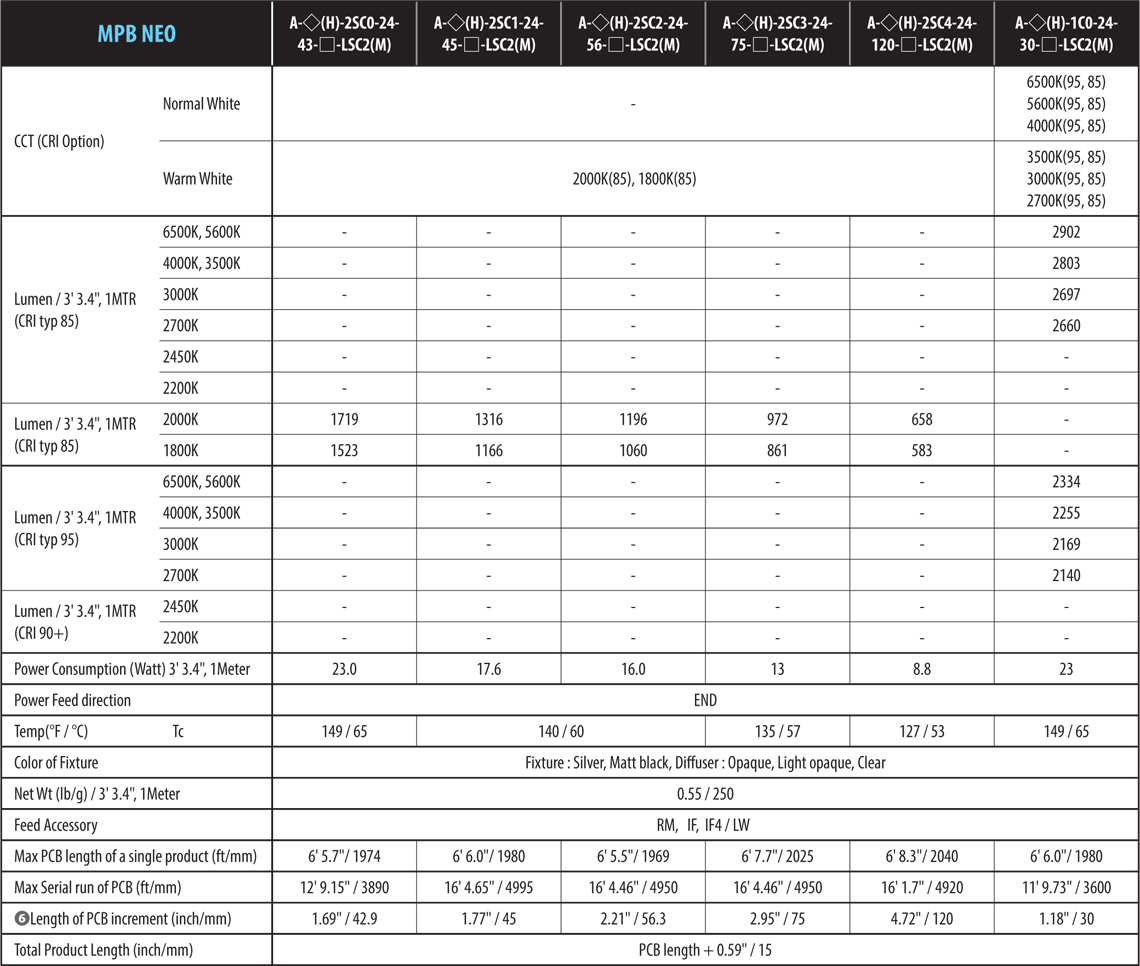

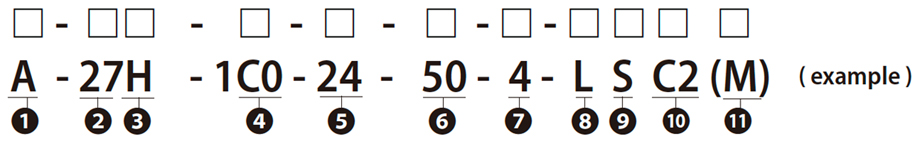

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. FH : CRI typ 97, H : CRI typ 95, 90+, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of PCB incre.(inch/mm) /strong> .. Refer to the table
  • 7) Quantity of the PCB increment …….. Variable
  • 8) Product model ………………………………… MPB NEO

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4, IM5, IMF5

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque, MS : Light opaque, Blank : Clear
    Dimming
    ………………………………………….. PWM, 0-10, DMX

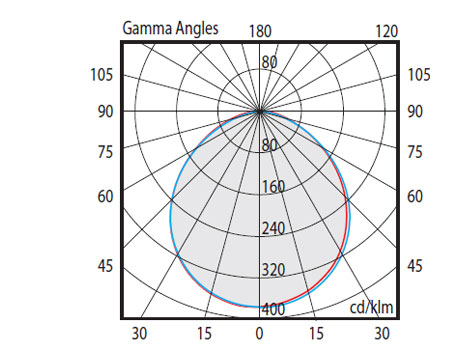

    Beam Angle
    …………………………………….. 110°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Diffuser type
    ……………………………………. M : Opaque, MS : Light opaque, Blank : Clear

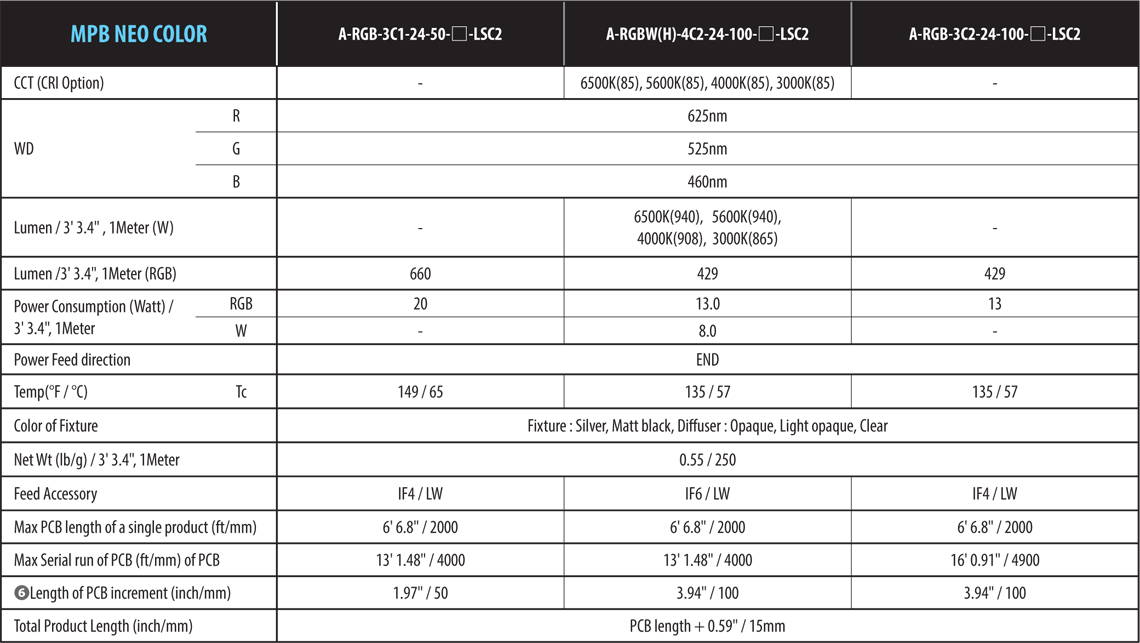

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

Data is subject to change without notice for improvment

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

* Lumen value is based on clear cover. Data is subject to change without notice for improvment

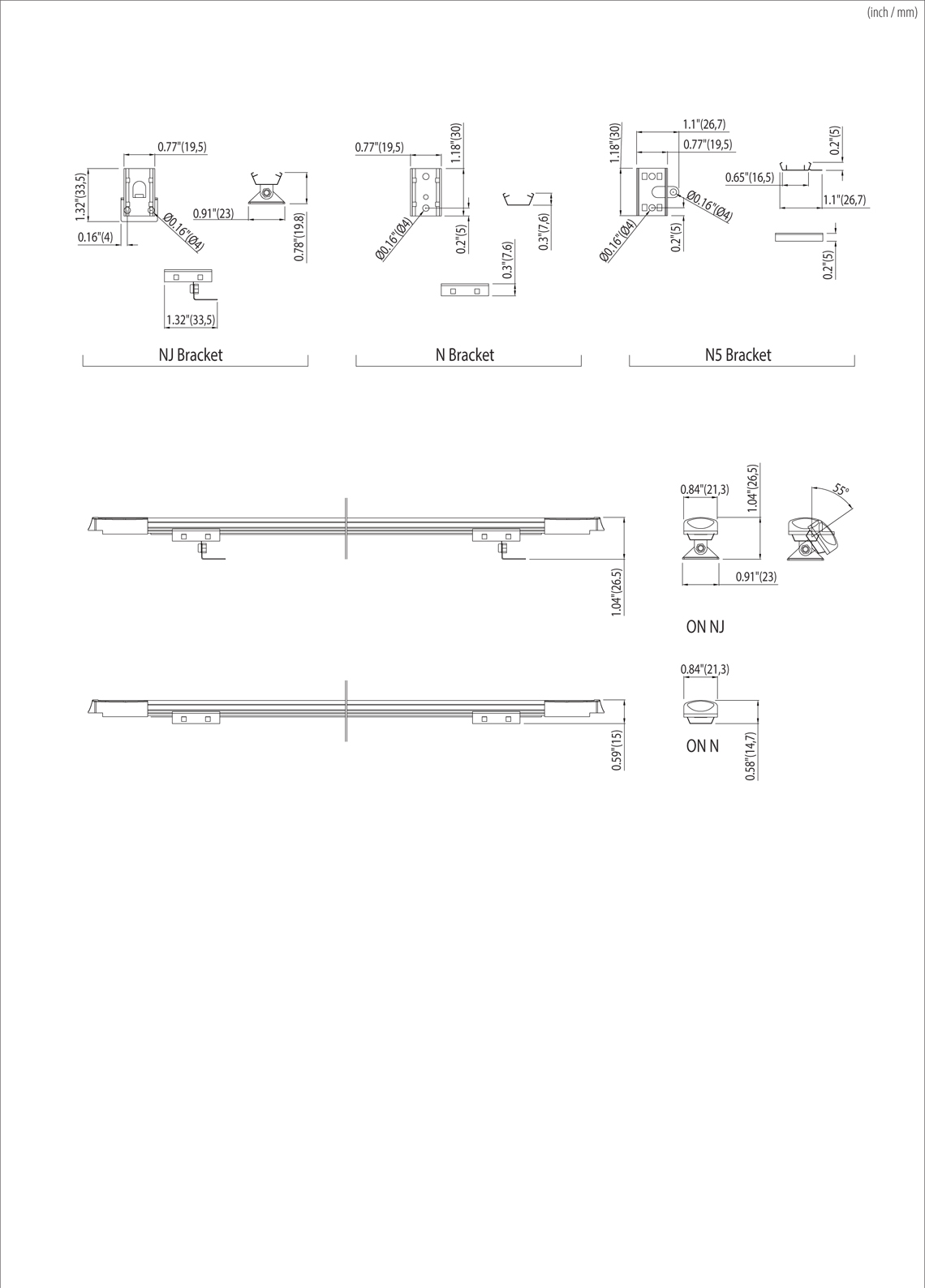

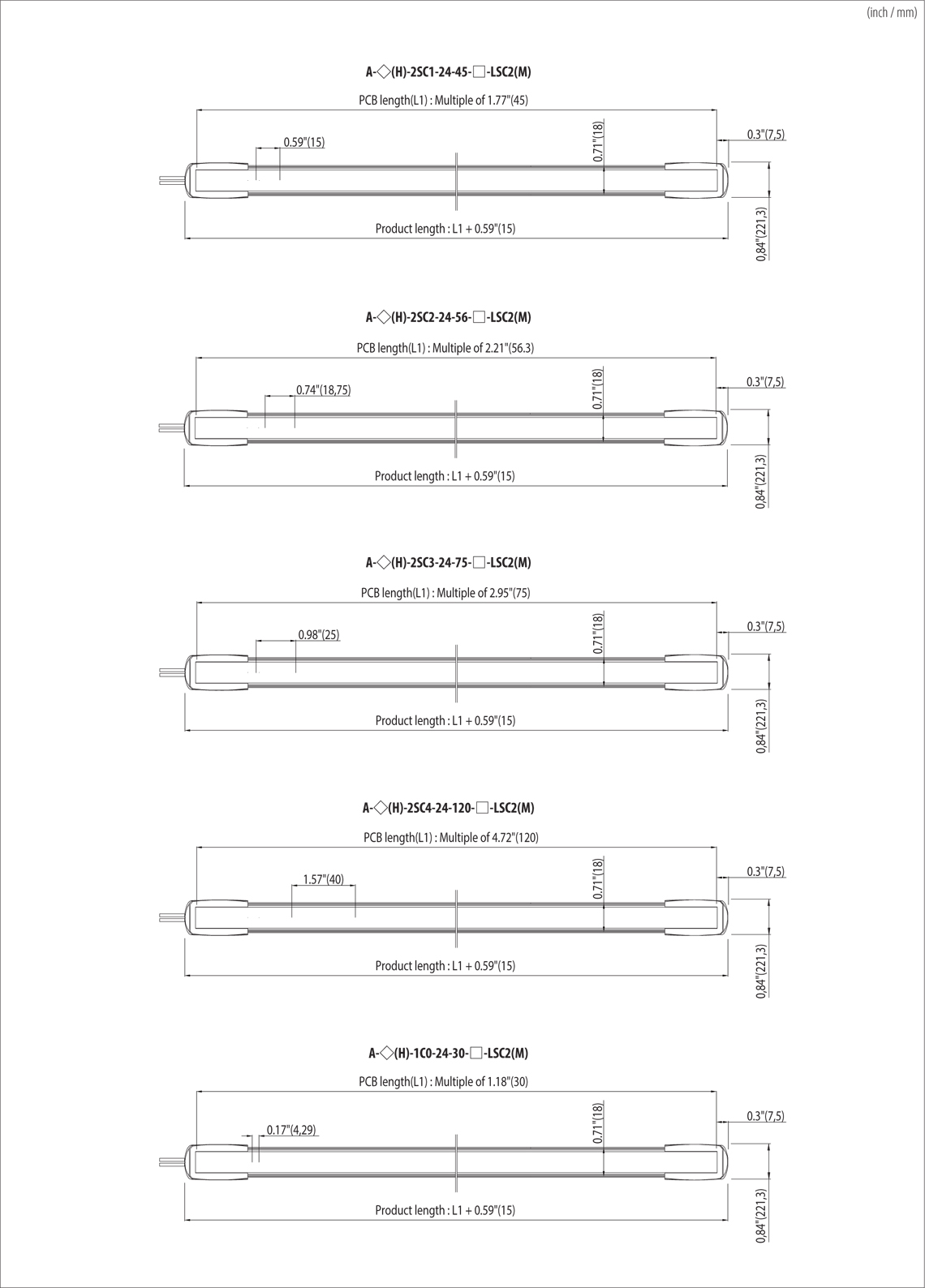

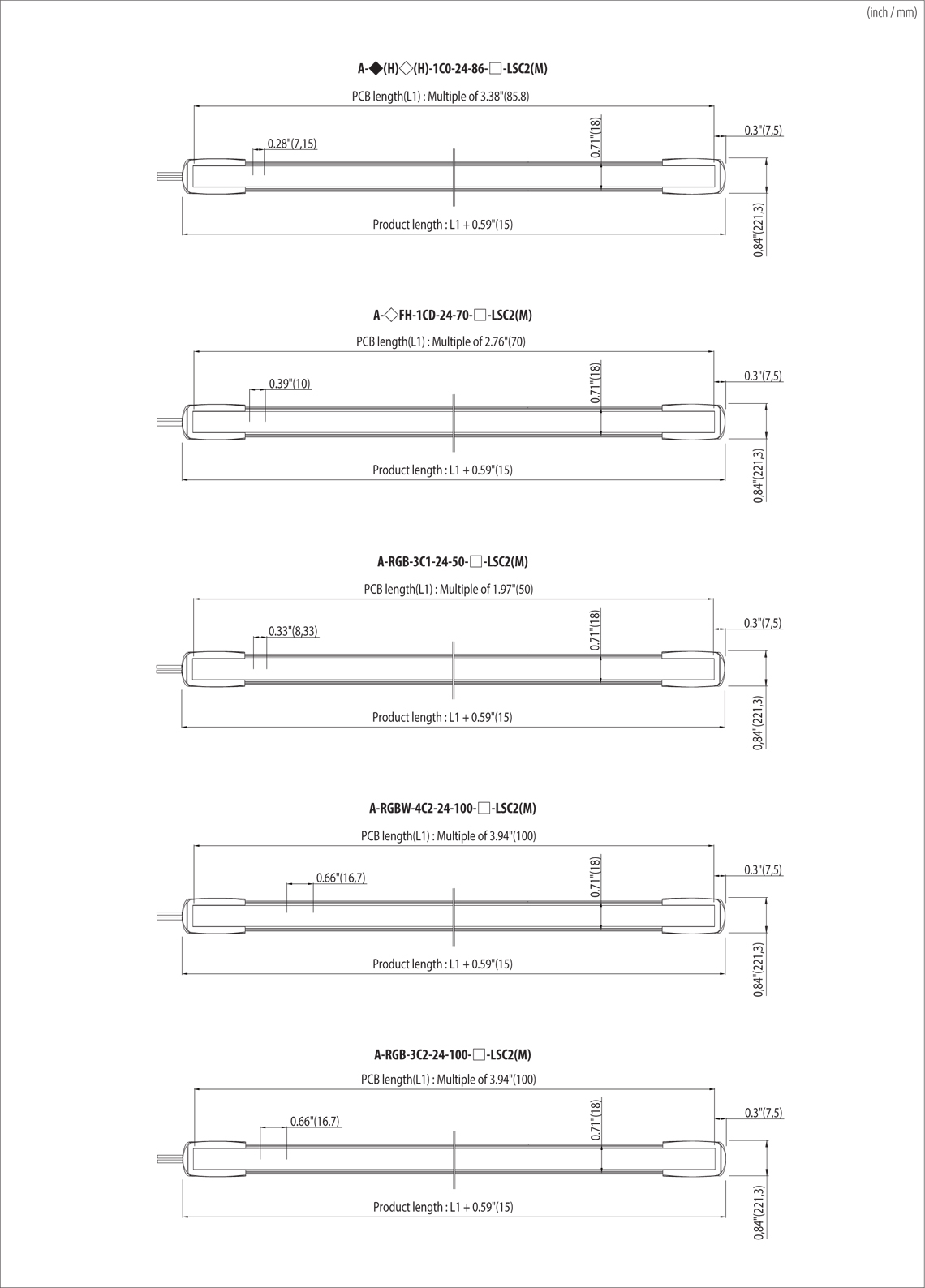

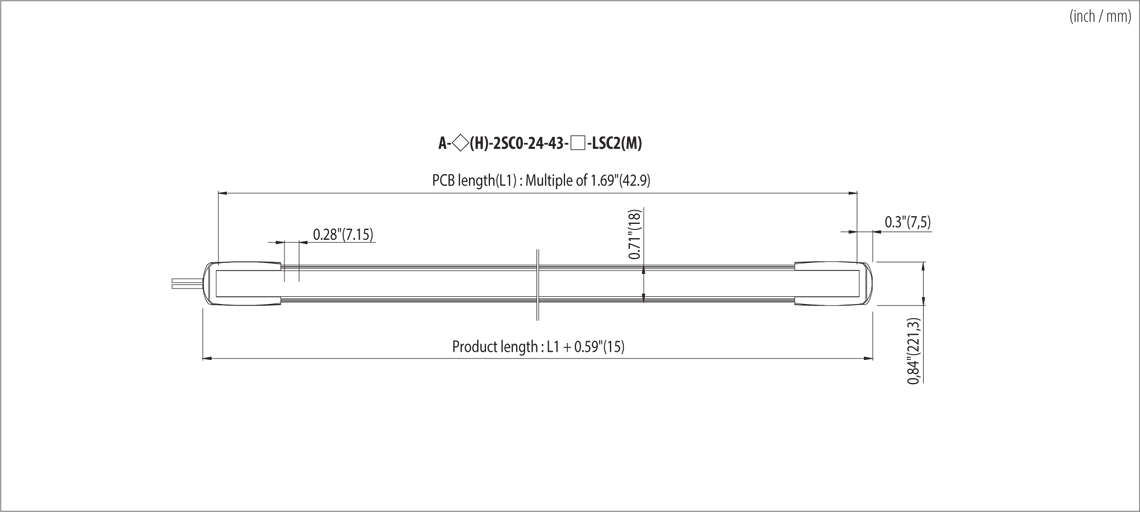

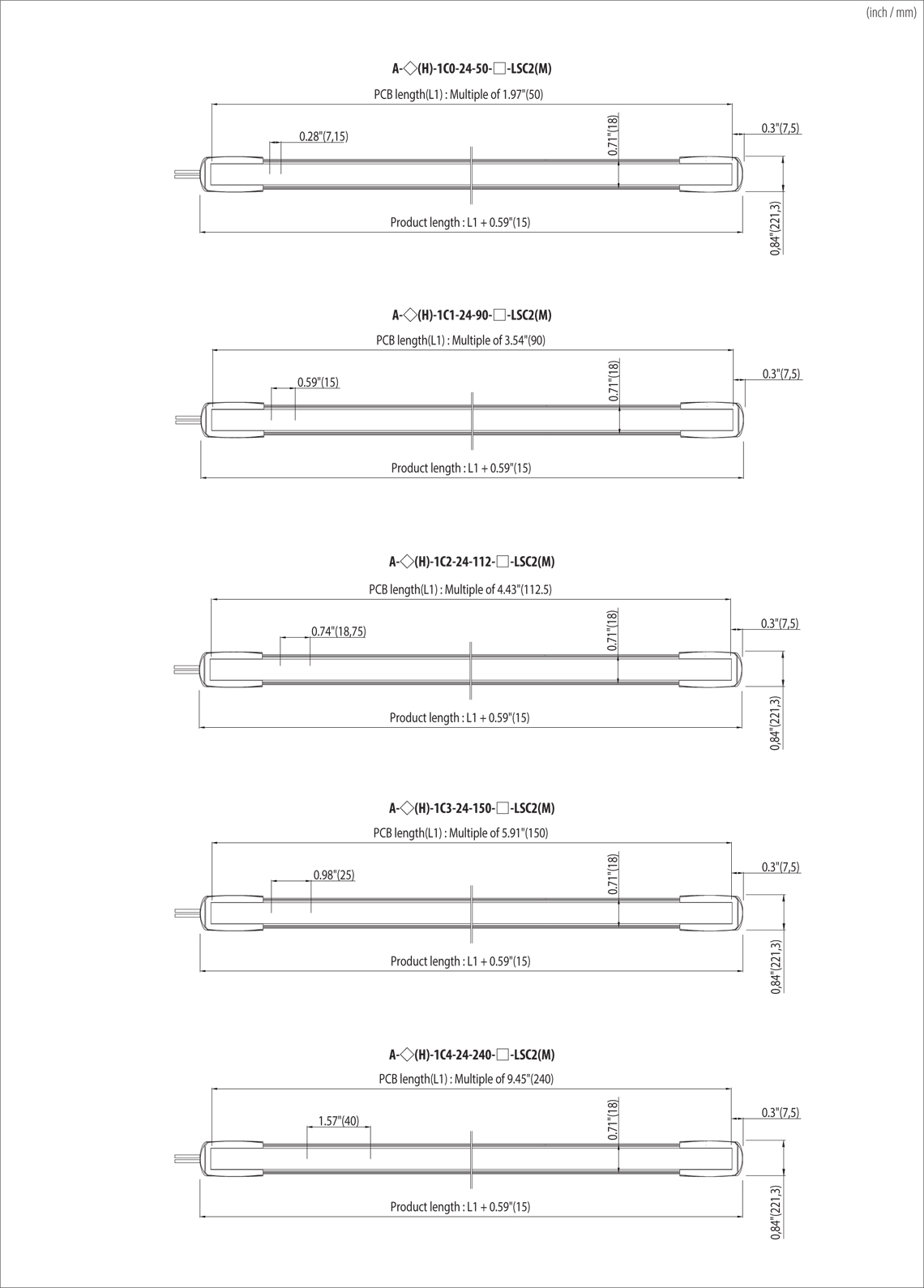

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
