Project Description

MPB HG

FEATURES

Constant current circuit for steady lumen output along the strip.
Slim and low profiles for elaborate space.
Splendid consistency in beam spread and dust protection with UV stabilized opaque cover
IP Rate IP40
Maximized evenness of CCT and brightness by professional bin management.

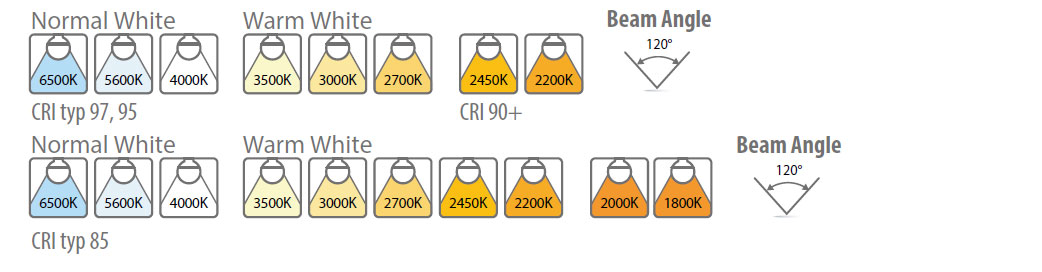

Wide range of CCT options(1800K ~ 7000K), Dual white
HCRI 95 option / HCRI 97 option in wider spectrum
A short increment for precise fitting
Rimless, continuous light emission.
Suitable for either surface mount or recessed
Bespoke option for CCT, CRI, Watt

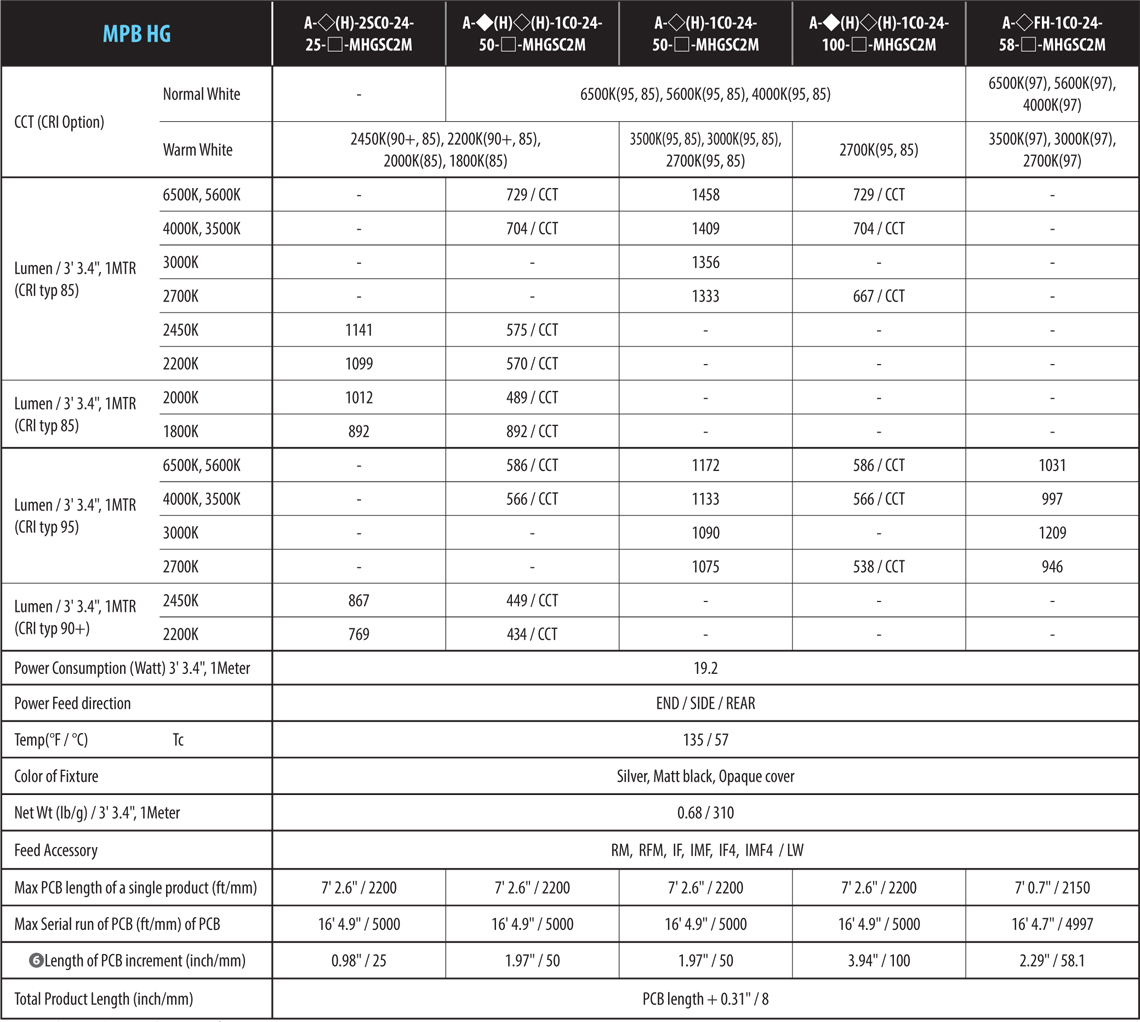

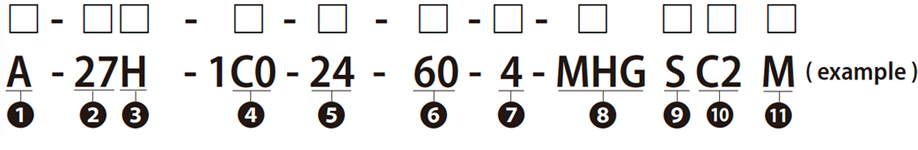

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. FH : CRI 97, H : CRI 95, 90+, Blank : CRI 85, 80+

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of add-on(inch/mm) …………. Refer to the table

  • 7) Quantity of add-on …………………………. Variable

  • 8) Product model ………………………………… MHG : MPB HG

  • 9) Feed receptacle ………….. S : Single end LW, B : Both ends LW, RF, RFM, IM, IMF, IM4, IMF4

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque
    Dimming
    ………………………………………….. PWM, DALI, 0-10, DMX

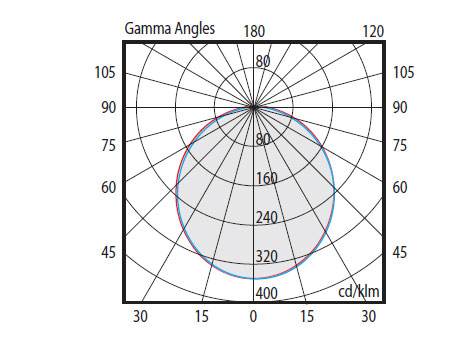

    Beam Angle
    …………………………………….. 120°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Bracket (R), Magnet (MG)

* Data is subject to change without notice for improvement

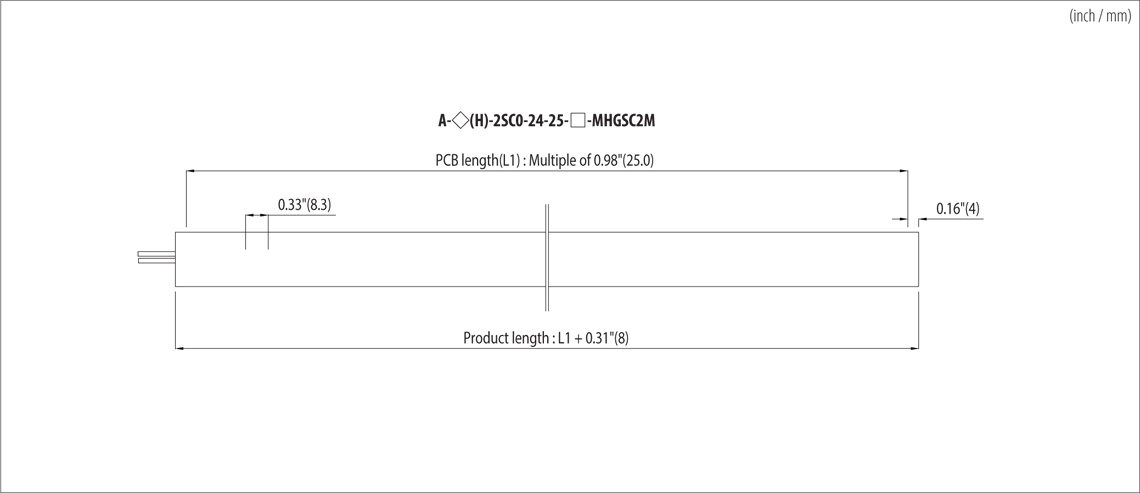

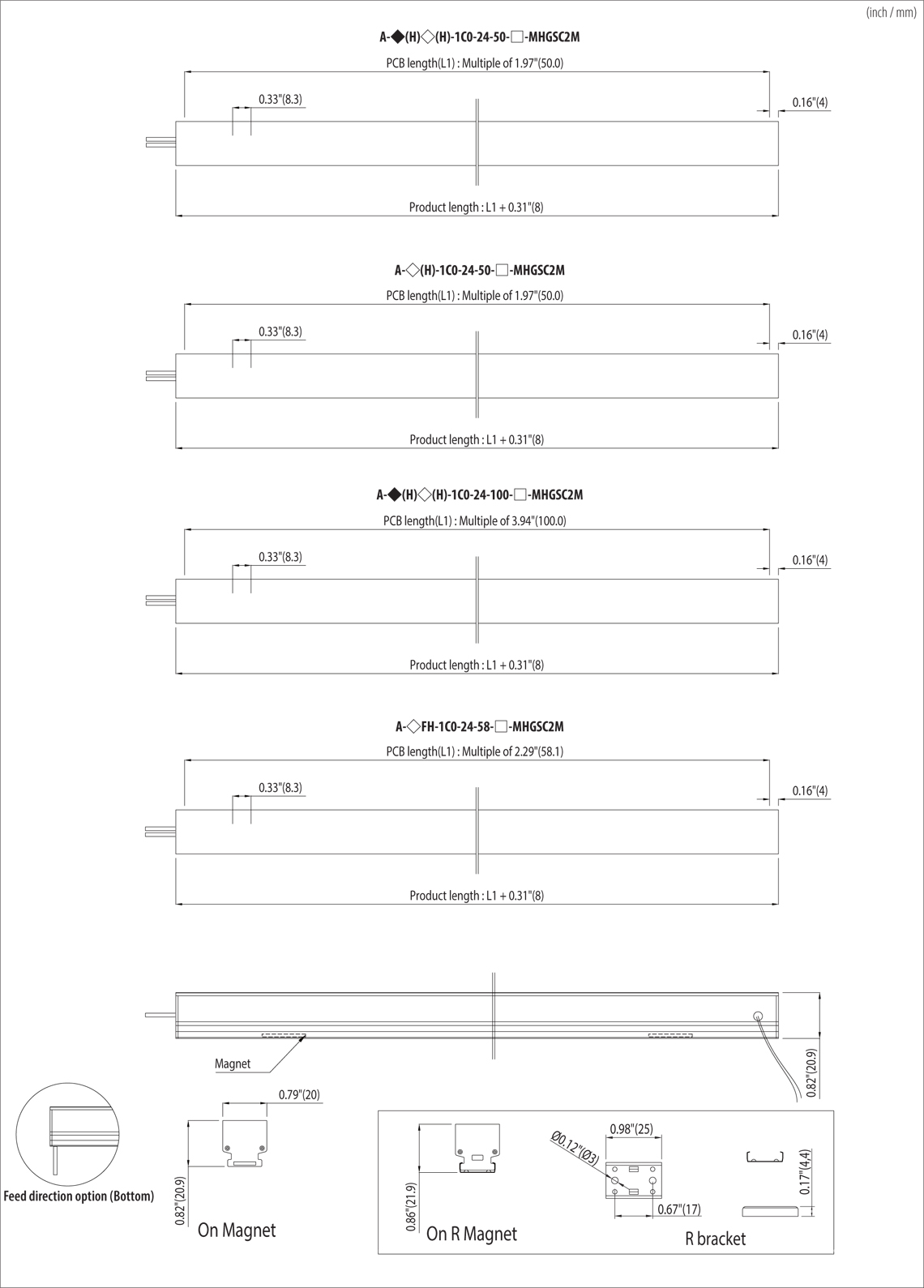

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

DOCUMENTATION
