Project Description

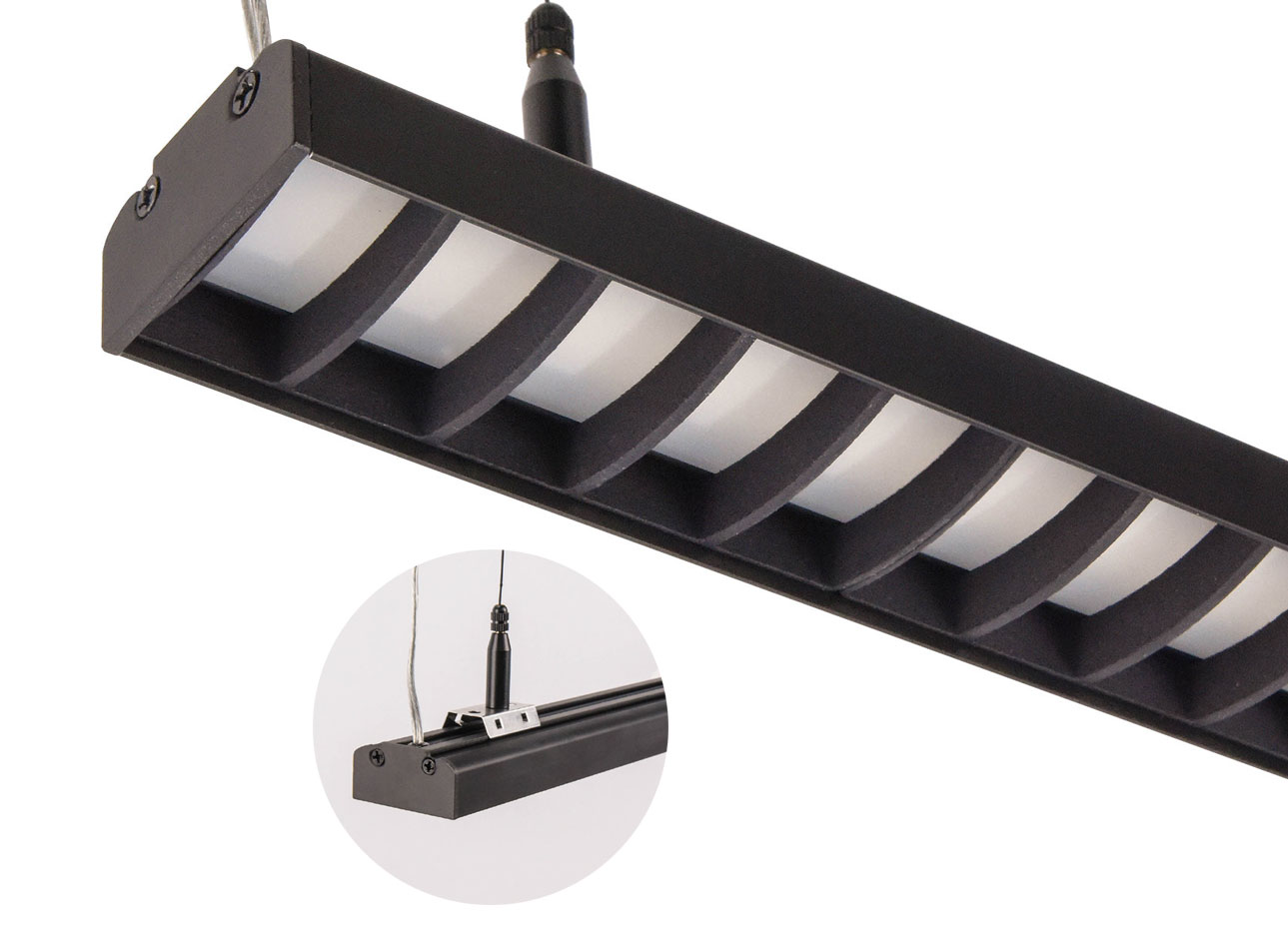

QPB DP

FEATURES
  • Constant current circuit for steady lumen output along the strip.
  • Low profile pendants for elaborate space.
  • Splendid consistency in beam spread and dust protection with UV stabilized opaque cover.
  • IP Rate IP40
  • Maximized evenness of CCT and brightness by professional bin management.

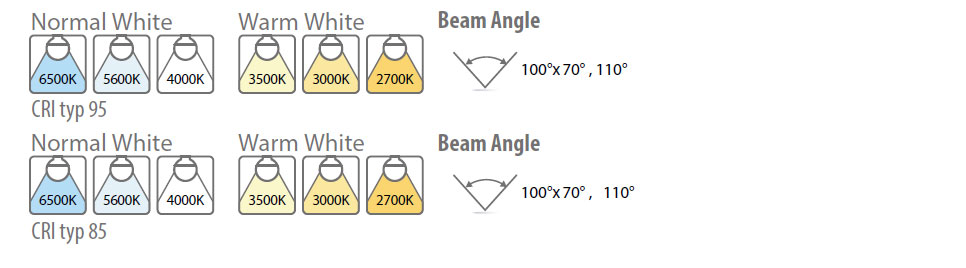

  • Wide range of CCT options(2700K ~ 7000K), Dual white
  • HCRI 95 option / HCRI 97 ( with R9>85) option in wider spectrum
  • A short increment for precise fitting
  • Louver options for glare cut.
  • Bespoke option for CCT, CRI, Watt

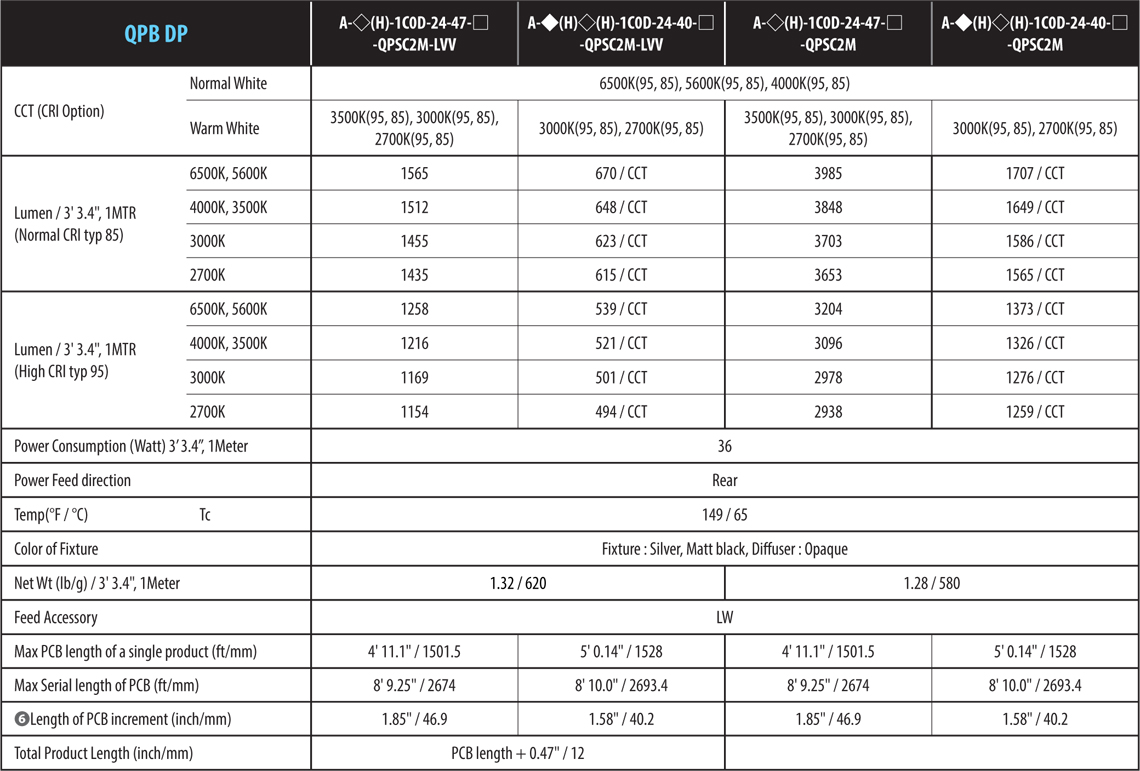

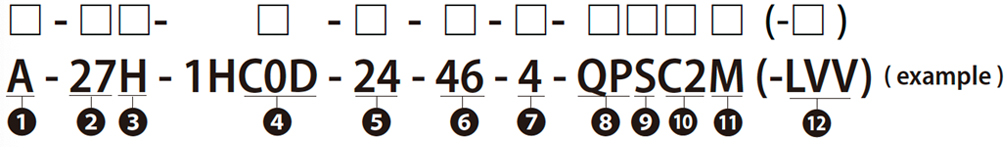

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC
  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, Blank : CRI typ 85

  • 4) LED pitch(inch/mm) ………………………… Refer to the Dimension

  • 5) Input VOLT(DC) ……………… 24V

  • 6) Length of add-on(inch/mm) …………. Refer to the table

  • 7) Quantity of add-on …………………………. Variable

  • 8) Product model ………………………………… QP : QPB DP

  • 9) Feed receptacle ………….. S : Single end LW

  • 10) IP Rate ………………………………………………. C2 : IP40

  • 11)
    Diffuser type
    ……………………………………. M : Opaque

  • 12)
    Optical accessory
    …………………………….. LVH: Horizontal Louver only, LVV : Vertical Louver + Horizontal Louver
    Dimming
    …………………………………………. PWM, DALI, 0-10
    Beam Angle
    …………………………………….. 100° x 60°
    Operation Temp(°F/°C)
    ………………….. Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Metal cable kit

* Data is subject to change without notice for improvement

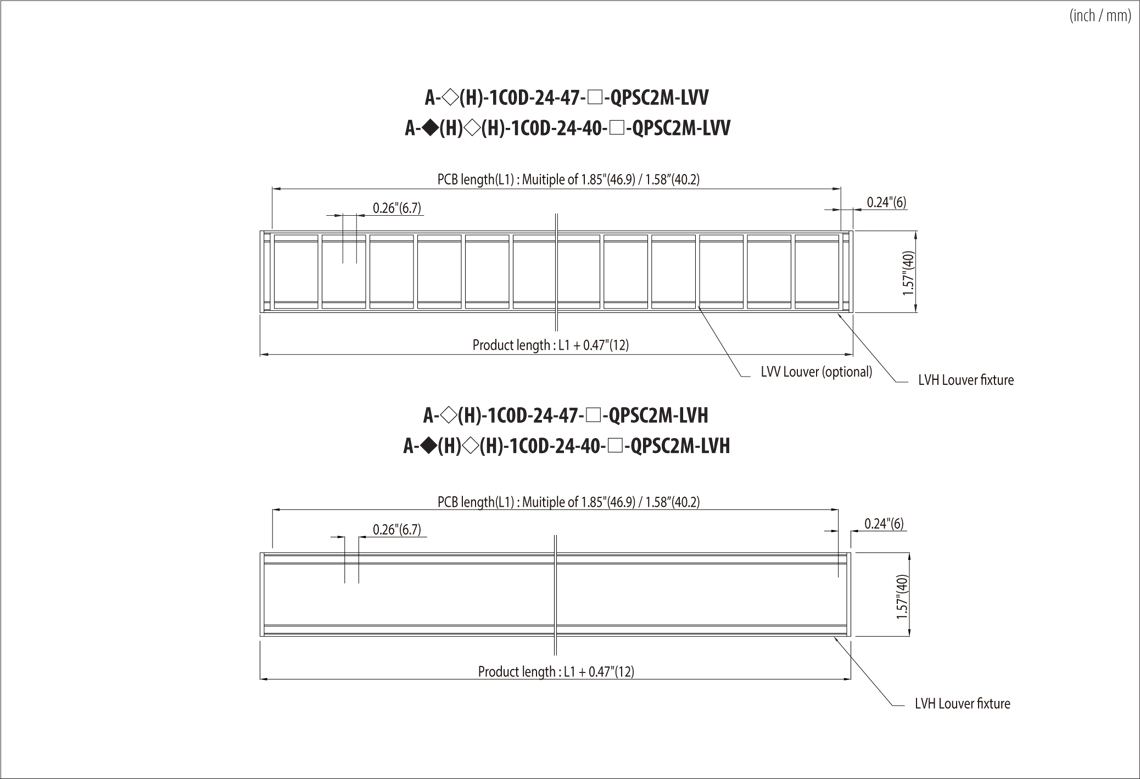

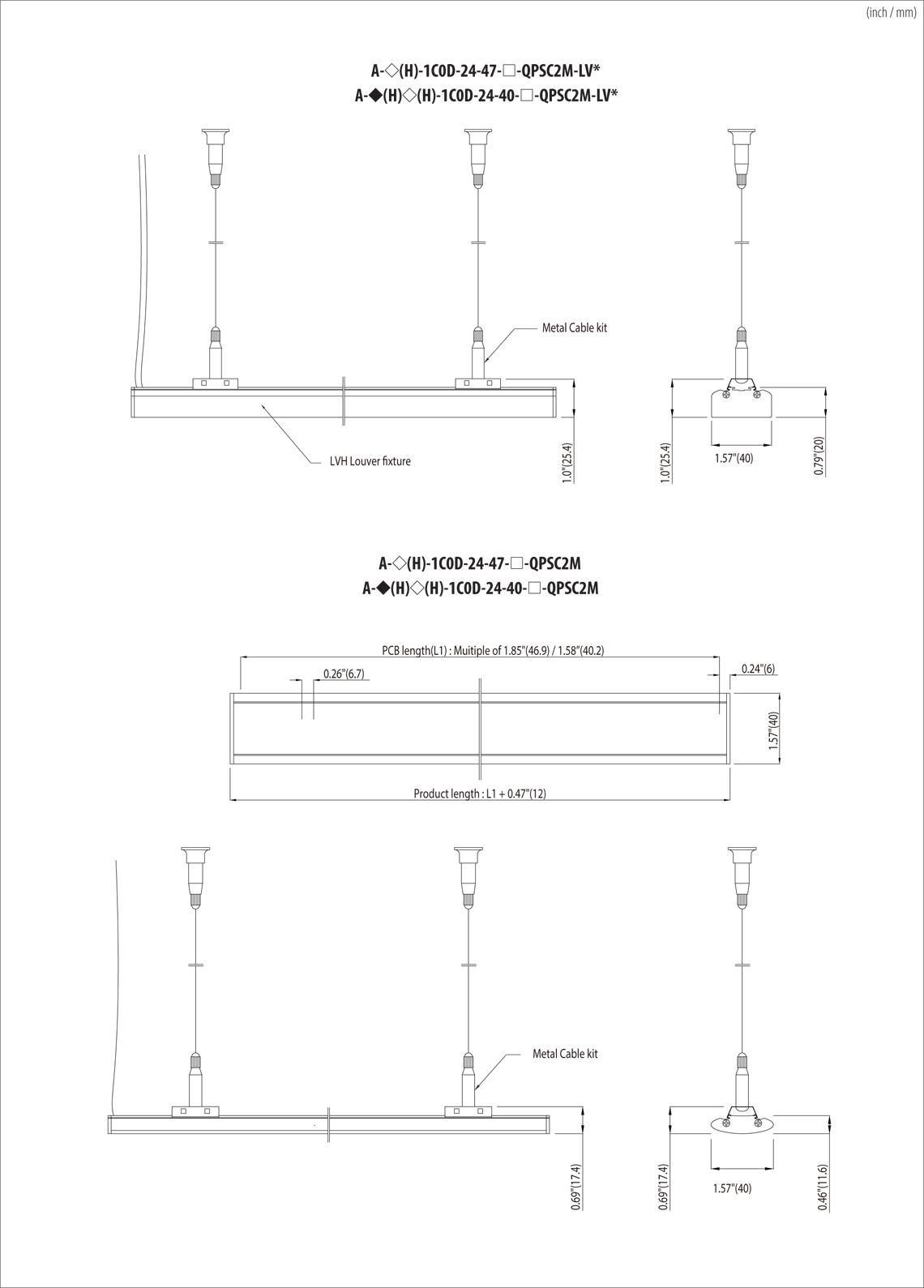

DIMENSION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
