MATRIX BOARD C0

FEATURES
  • Constant current circuit for steady lumen output along the connections
  • Splendid consistency in beam spread
  • Maximized evenness of CCT and brightness by professional bin management.
  • IP Rate IP20, IP65
  • Wide range of CCT options(2700K ~ 7000K)
  • Bespoke option for CCT, CRI, Watt

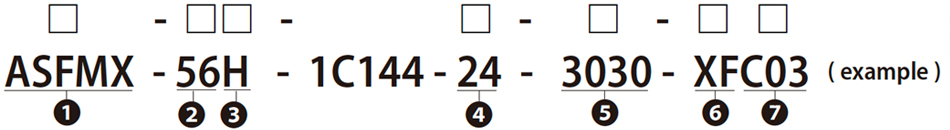

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC Matrix Board

  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI 90+, Blank : CRI 80+

  • 4) Input VOLT(DC) ……………… 24V

  • 5) Product Size(inch/mm) …………. 11.8” x 11.8” / 300 x 300, 7.87″ x 7.87″ / 200 x 200, 7.87″ x 3.94″ / 200 x 100 / 7.87″ x 1.97″ / 200 x 50, 1.97″ x 1.97″ / 50 x 50

  • 6) Feed receptacle ………….. XF, RFM, WFM4

  • 11) IP Rate ………………………………………………. C2 : IP40

  • 12)
    IP Rate
    ……………………………………. C0 : IP20, C3 : IP65, C03 : IP65(coated on the board surface)
    Dimming
    ………………………………………….. PWM, DALI, 0-10, DMX
    Beam Angle
    …………………………………….. 120°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Screw, Tape(DS)

* Data is subject to change without notice for improvement

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
