MATRiX BOARD C3
FEATURES
- Constant current circuit for steady lumen output along the connections
- Splendid consistency in beam spread
- Maximized evenness of CCT and brightness by professional bin management.
- IP20, IP65
- Wide range of CCT options(2700K ~ 7000K)
- Bespoke option for CCT, CRI, Watt and more.

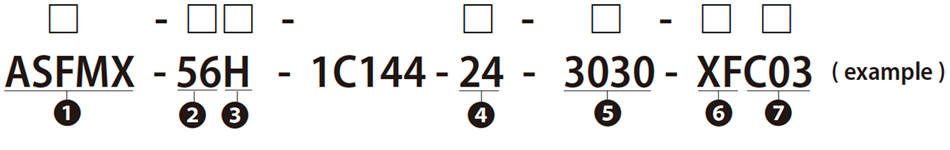

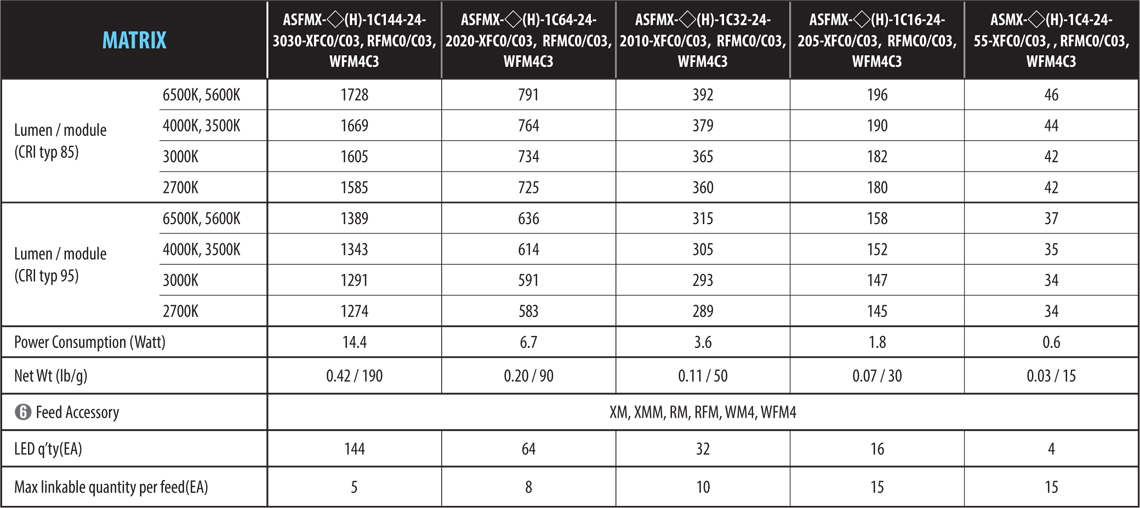

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
1) Name ………………………………………………… ACROSENTEC Matrix Board
2) CCT
3) Level of CRI ………………………………………. H : CRI typ 95, Blank : CRI typ 85
4) Input VOLT(DC) ……………… 24V
5) Product Size(inch/mm) …………. 11.8” x 11.8” / 300 x 300, 7.87″ x 7.87″ / 200 x 200, 7.87″ x 3.94″ / 200 x 100 / 7.87″ x 1.97″ / 200 x 50, 1.97″ x 1.97″ / 50 x 50
6) Feed receptacle ………….. XF, RFM, WFM4
- 7)
IP Rate ………………………………………………. C0 : IP20, C3 : IP65, C03 : IP65(coated on the board surface)
Dimming ………………………………………….. PWM, 0-10, DMX
Beam Angle …………………………………….. 120°
Operation Temp(°F/°C) …………………… Ta : -13~122 / -25~50
Expected Life Hours ……………………….. 60000 Hrs
Mounting Accessory ………………………. Screw, Tape(DS)
* Data is subject to change without notice for improvement

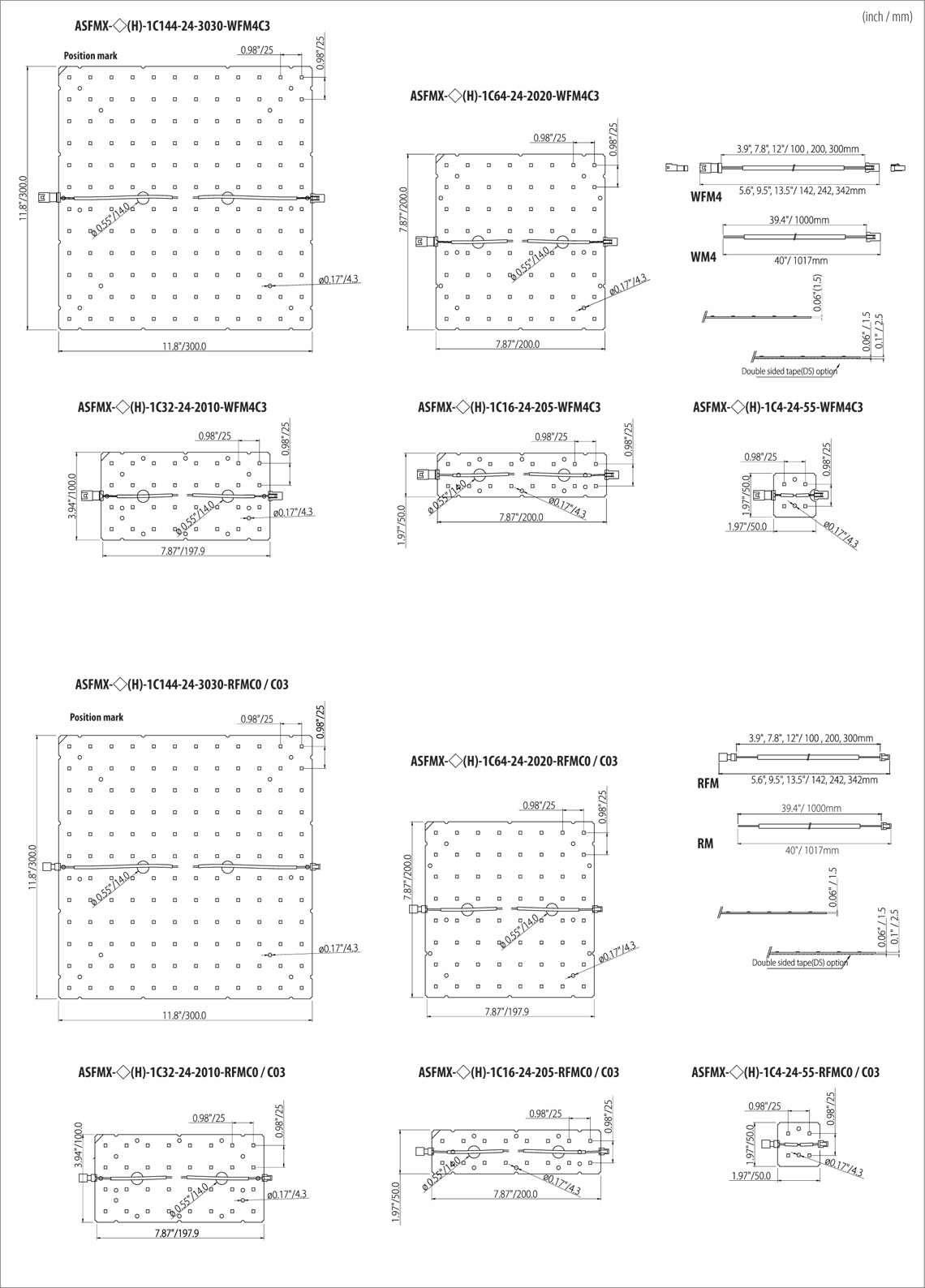

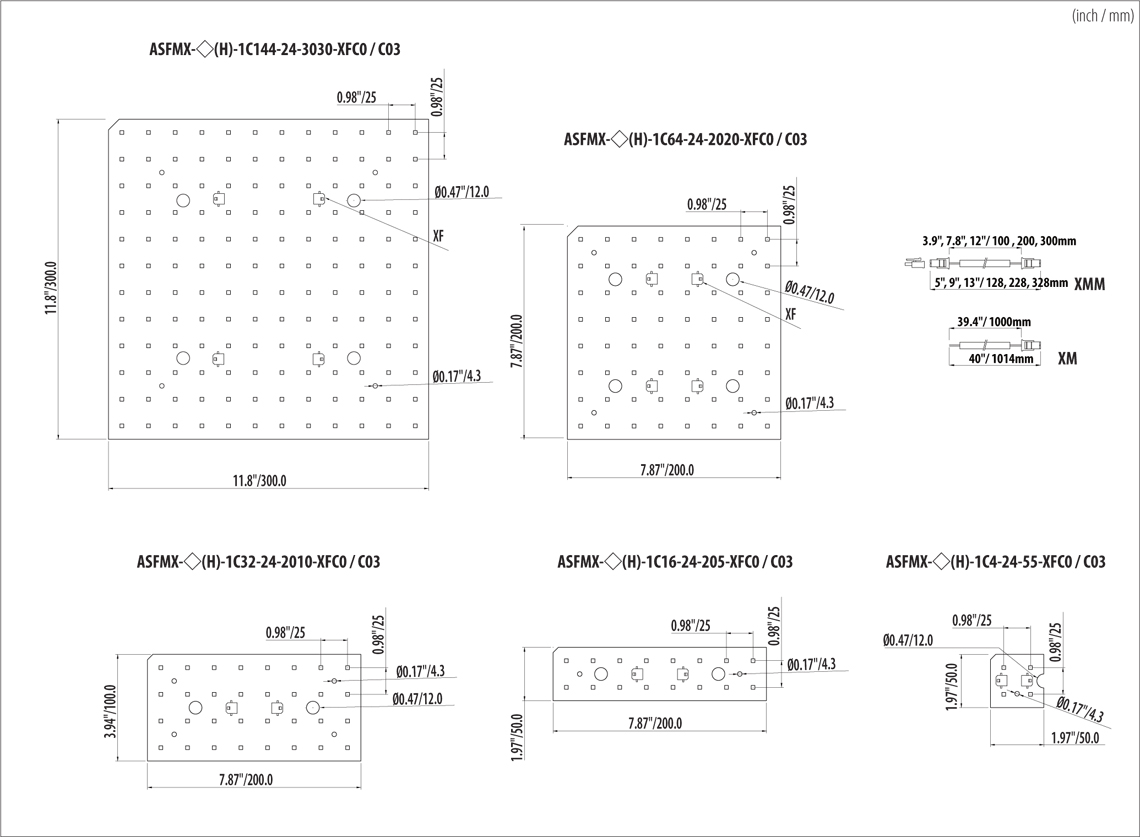

DIMENSTION
* Data is subject to change without notice for improvement
