F MATRiX BOARD C3

FEATURES
  • Constant current circuit for steady lumen output along the connections. Designed for curved surface and backlight.
  • Splendid consistency in beam spread
  • IP20, IP65
  • Maximized evenness of CCT and brightness by professional bin management.
  • Wide range of CCT options (2700K ~ 7000K), dual white
  • Precise backlight fitting with various size of flexible boards.
  • Bespoke option for CCT, CRI, Watt and more.

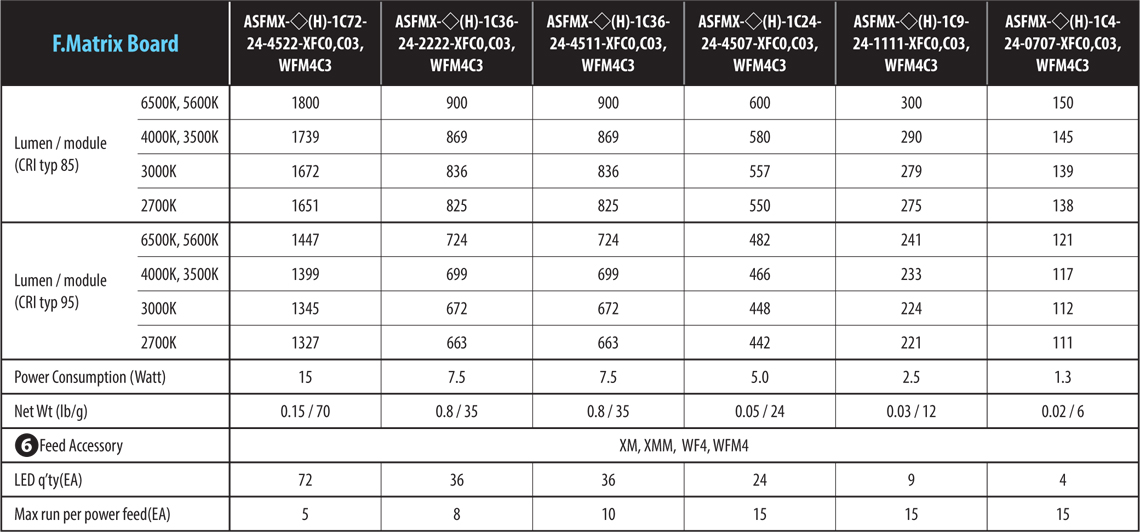

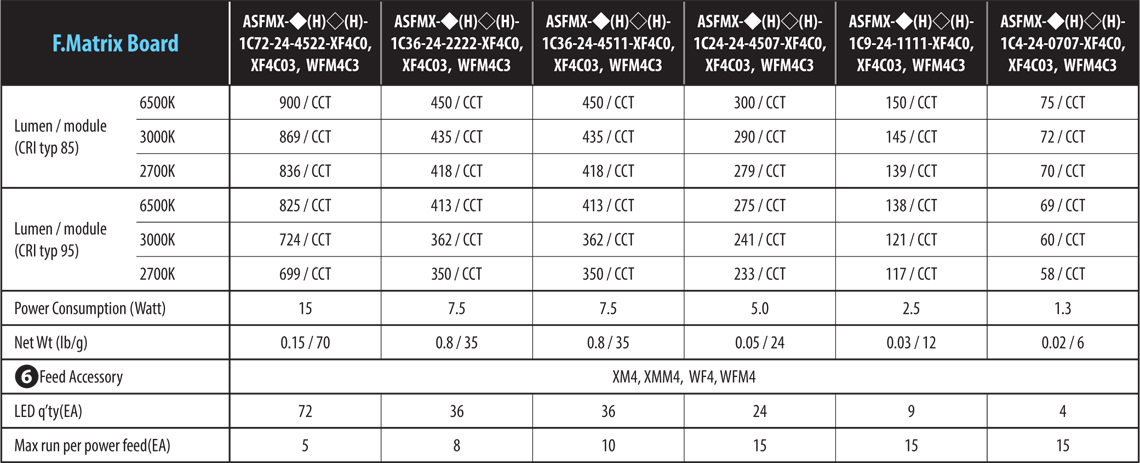

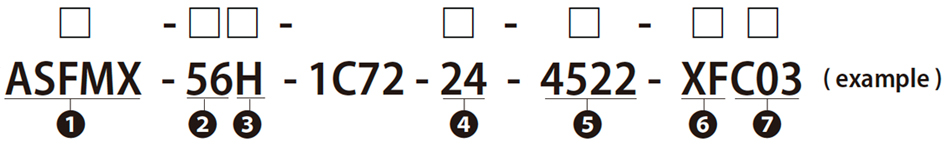

PRODUCT DESCRIPTION CODES / SPECIFICATIONS
  • 1) Name ………………………………………………… ACROSENTEC F Matrix board

  • 2) CCT

  • 3) Level of CRI ………………………………………. H : CRI typ 95, Blank : CRI typ 85
  • 4) Input VOLT(DC) ……………… 24V

  • 5) Product Size(inch/mm) …………. 17.7″ x 8.86” / 450 x 225, 8.86″ x 8.86” / 225 x 225, 17.7″ x 4.43” / 450 x 112,5 / 17.7″ x 2.95” / 450 x 75, 4.43″ x 4.43” / 112.5 X 112.5, 2.95″ x 2.95” / 75 X 75

  • 6) Feed receptacle ………….. XF, XF4, WFM4

  • 7)
    IP Rate
    ………………………………………………. C0 : IP20, C3 : IP65, C03 : IP65(coated on the board surface)
    Dimming
    ………………………………………….. PWM, 0-10, DMX
    Beam Angle
    …………………………………….. 120°
    Operation Temp(°F/°C)
    …………………… Ta : -13~122 / -25~50
    Expected Life Hours
    ……………………….. 60000 Hrs
    Mounting Accessory
    ………………………. Tape (DS)

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement

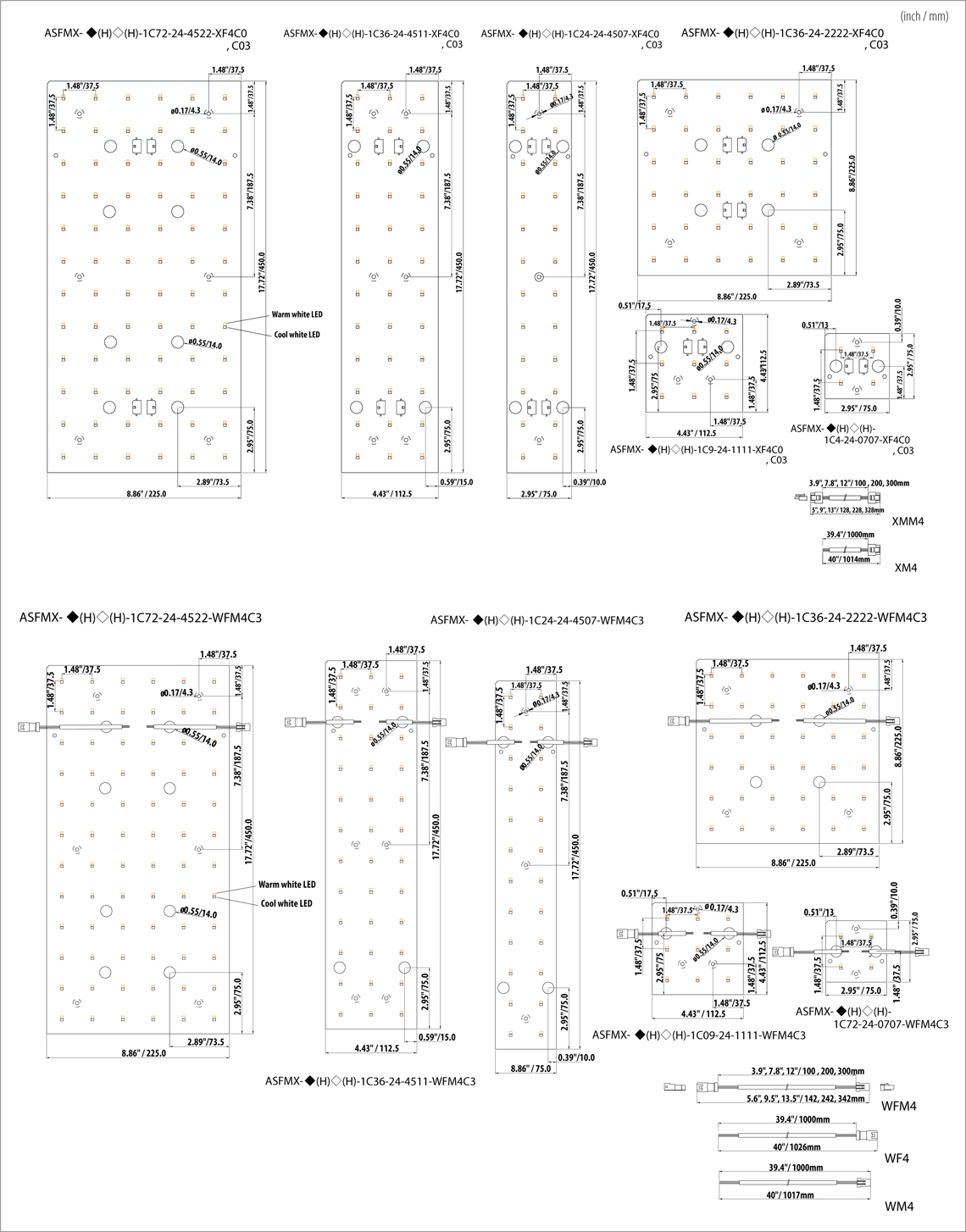

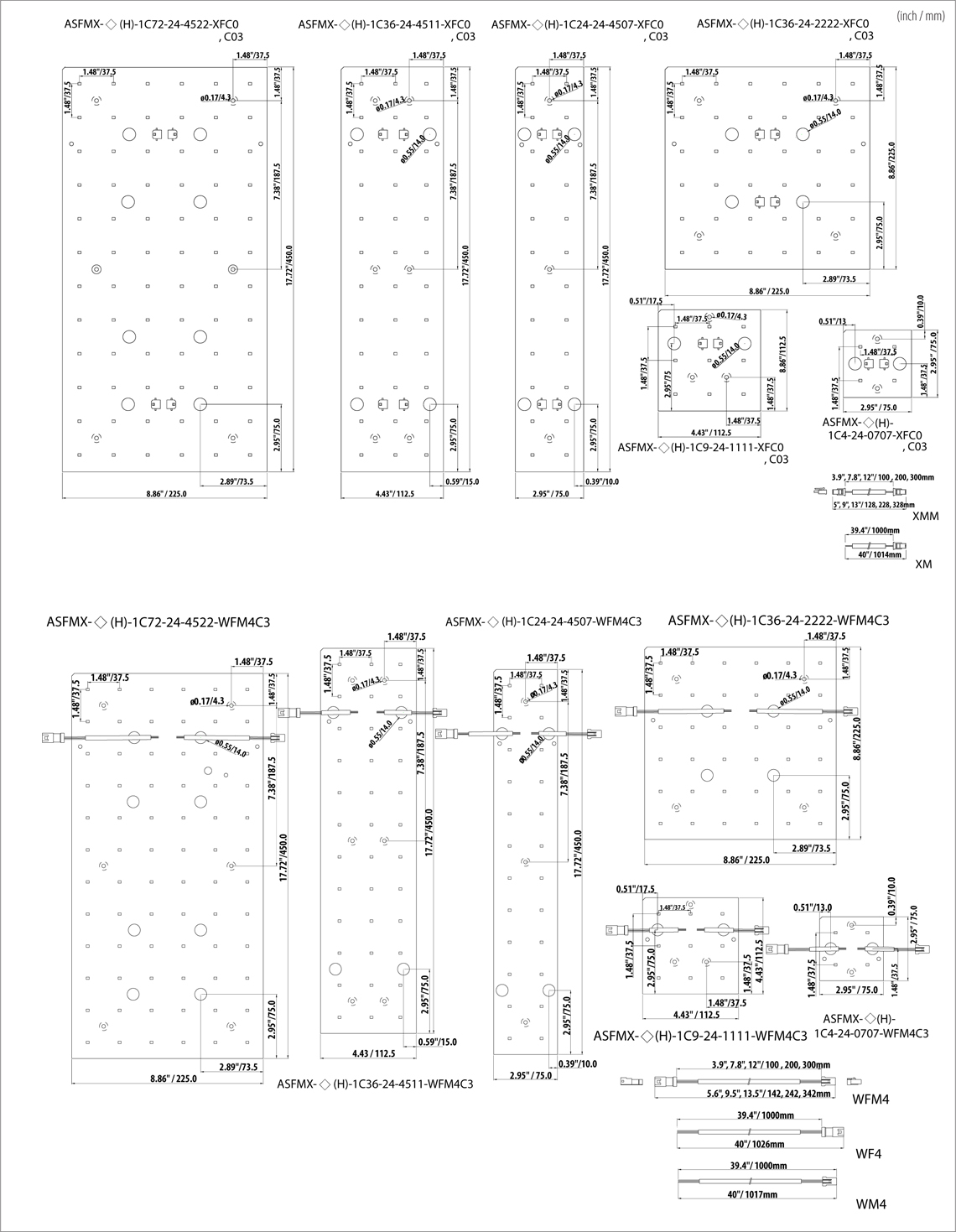

DIMENSTION

* Data is subject to change without notice for improvement

* Data is subject to change without notice for improvement
